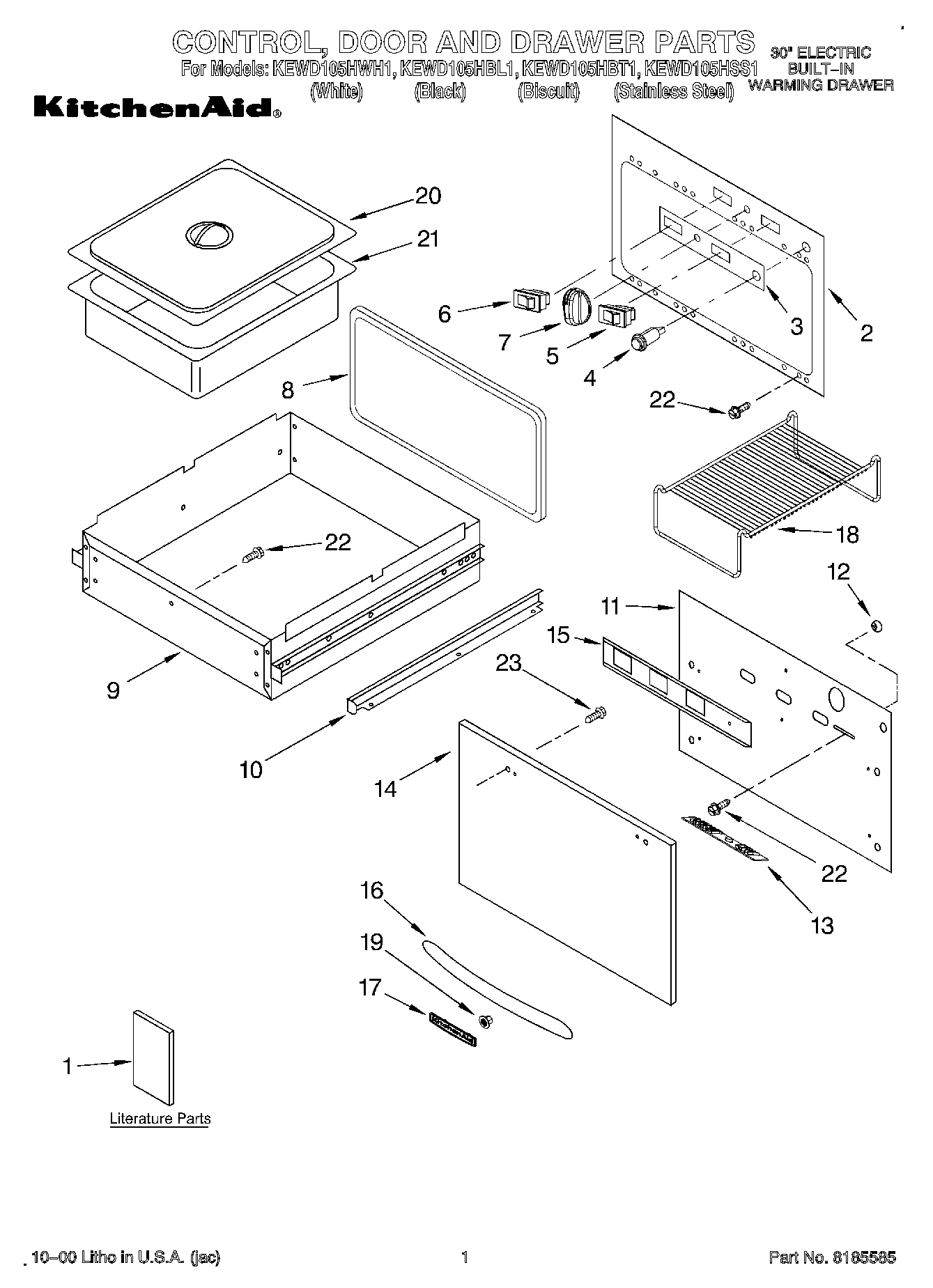

| 1 | Literature Parts (Use & Care Guide) |
| 1 | Literature Parts (Installation Instructions) |
| 1 | Literature Parts (Tech Sheet) |
| 2 | Panel, Control |
| 3 | Escutchen, Control Panel |
| 4 | Light, Indicator |
| 5 | Switch, Rocker SPST Illuminated |
| 6 | WP4452842 Whirlpool Light Switch |
| 7 | W10854530 Whirlpool Knob Assembly |
| 8 | Gasket, Drawer |
| 9 | Drawer Assembly |
| 10 | Adapter (Pan Support Bracket) |
| 11 | Liner, Door |
| 12 | Knob, Ball |
| 13 | Label, Moist/Dry |
| 14 | Door, Front Assy (Stainless Steel) |
| 14 | Door, Front Assy (Biscuit) |
| 14 | Door, Front Assy (White) |
| 14 | Door, Front Assy (Black) |
| 15 | Vent, Slide |
| 16 | Handle, Door (Biscuit) |
| 16 | Handle, Door (White) |
| 16 | Handle, Door (Black) |
| 16 | Handle, Door (Stainless) |
| 17 | Nameplate (Black) |
| 18 | Rack, Warming |
| 19 | Palnut |
| 20 | Cover, Pan (Large, (Half)) |
| 20 | Cover, Pan (Small (1/3)) |
| 21 | Pan, Warming (Large (Half)) |
| 21 | Pan, Warming (Small (1/3)) |
| 22 | WP3400805 Whirlpool Screw Assembly |
| 23 | WPW10132940 Whirlpool Dishwasher Screw |
