KEWD105HBL4 02 – SECTION

KEWD105HBL4 02 – SECTION

Written by

in

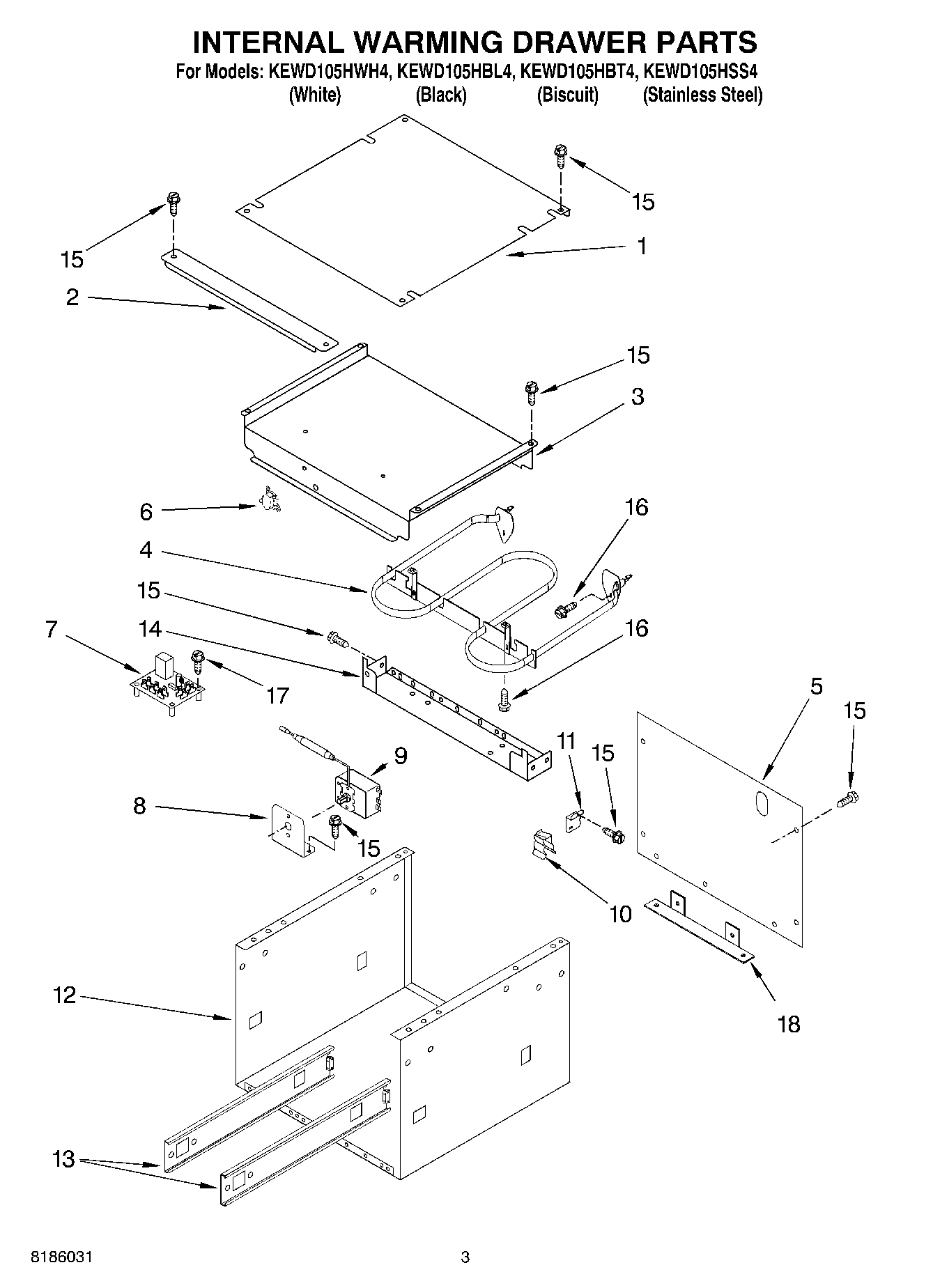

KEWD105HBL4 02 – SECTION

Products

PositionProduct
1Top, Wrapper
2Panel, Service
3Plate, Element Mounting
4WP9760767 Whirlpool Range Wall Oven Broil Element
5Back, Wrapper
6Screw
6WP4450934 Whirlpool Thermostat Assembly
7Timer Assembly
8Bracket, Mounting Thermostat
9Thermostat, Bi-Metal
10Clip, Thermostat
11Bracket, Mounting
12Wrapper
13Slide Assembly (Right hand)
13Slide Assembly (Left Hand)
14Bracket, Control
15WP3400805 Whirlpool Screw Assembly
16WP4449809 Whirlpool Screw
17Screw
18Insulation
18Hook, Bracket
18WP4448950 Whirlpool Screw
184450800 Whirlpool Oven Screw
184452601 Whirlpool Grommet
18Harness, Wire (Main)
18Power Cord
