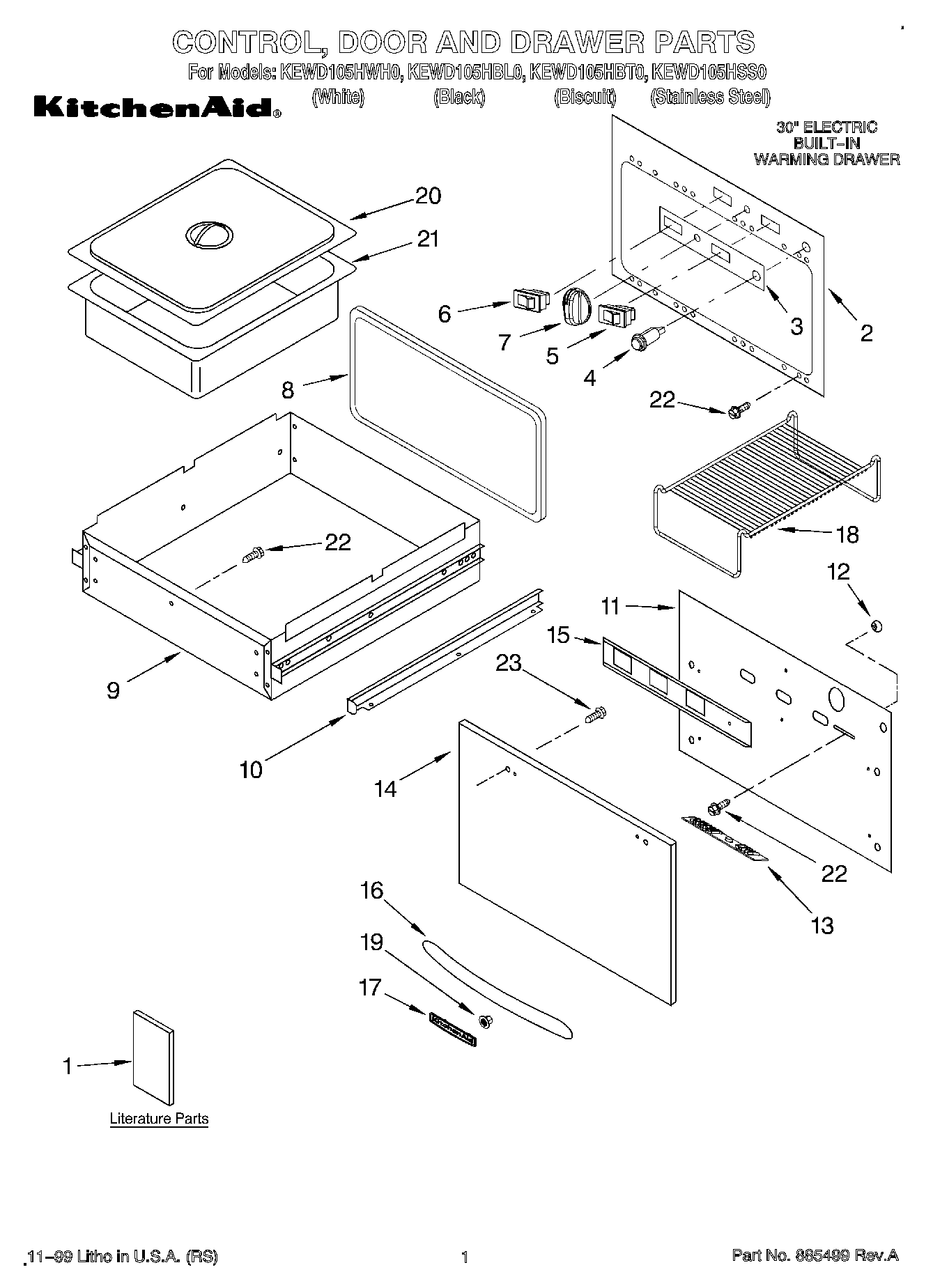

KEWD105HBT0 01 – SECTION

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
1Literature Parts (Tech Sheet)
2Panel, Control
3Escutchen, Control Panel
4Light, Indicator
5Switch, Rocker SPST Illuminated
6WP4452842 Whirlpool Light Switch
7W10854530 Whirlpool Knob Assembly
8Gasket, Drawer
9Drawer Assembly
10Adapter (Pan Support Bracket)
11Liner, Door
12Knob, Ball
13Label, Moist/Dry
14Door, Front Assy (White)
14Door, Front Assy (Biscuit)
14Door, Front Assy (Stainless Steel)
14Door, Front Assy (Black)
15Vent, Slide
16Handle, Door (Stainless)
16Handle, Door (Black)
16Handle, Door (White)
16Handle, Door (Biscuit)
17Nameplate (Black)
18Rack, Warming
19Palnut
20Cover, Pan (Small (1/3))
20Cover, Pan (Large, (Half))
21Pan, Warming (Large (Half))
21Pan, Warming (Small (1/3))
22WP3400805 Whirlpool Screw Assembly
23WPW10132940 Whirlpool Dishwasher Screw
