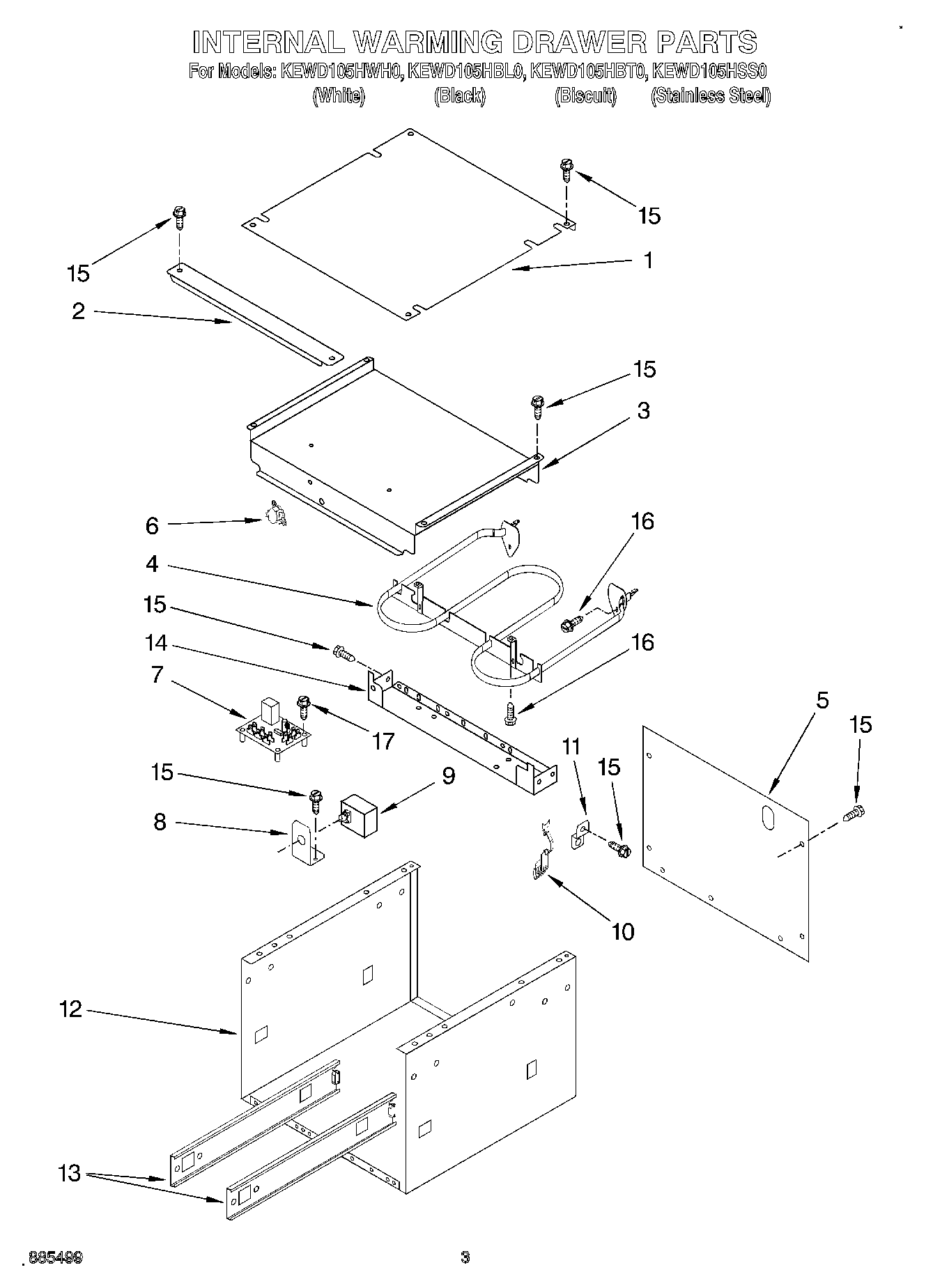

KEWD105HSS0 02 – SECTION

Products

PositionProduct
1Top, Wrapper
2Panel, Service
3Plate, Element Mounting
4WP9760767 Whirlpool Range Wall Oven Broil Element
5Back, Wrapper
6WP4450934 Whirlpool Thermostat Assembly
7Timer Assembly
8Bracket, Mounting Thermostat
9Thermostat, Bi-Metal
10Clip, Thermostat
11Bracket, Mounting
12Wrapper
13Slide Assembly (Left Hand)
13Slide Assembly (Right hand)
14Bracket, Control
15WP3400805 Whirlpool Screw Assembly
16WP4449809 Whirlpool Screw
17Screw
17WP4448950 Whirlpool Screw
174452601 Whirlpool Grommet
17Harness, Wire (Main)
17Power Cord
17Insulation
