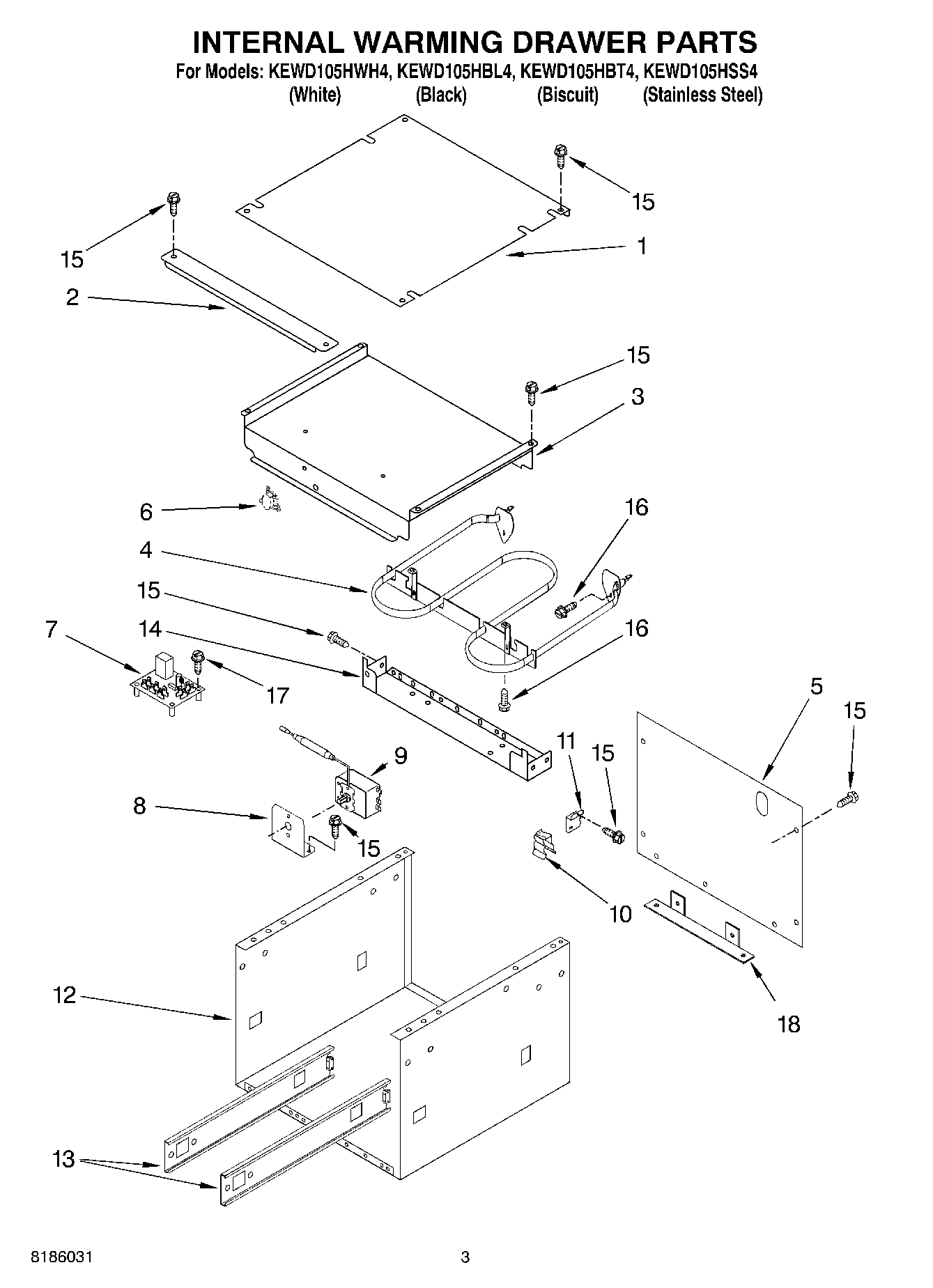

KEWD105HWH4 02 – SECTION

Products

Position	Product
1	Top, Wrapper
2	Panel, Service
3	Plate, Element Mounting
4	WP9760767 Whirlpool Range Wall Oven Broil Element
5	Back, Wrapper
6	Screw
6	WP4450934 Whirlpool Thermostat Assembly
7	Timer Assembly
8	Bracket, Mounting Thermostat
9	Thermostat, Bi-Metal
10	Clip, Thermostat
11	Bracket, Mounting
12	Wrapper
13	Slide Assembly (Right hand)
13	Slide Assembly (Left Hand)
14	Bracket, Control
15	WP3400805 Whirlpool Screw Assembly
16	WP4449809 Whirlpool Screw
17	Screw
18	Insulation
18	Hook, Bracket
18	WP4448950 Whirlpool Screw
18	4450800 Whirlpool Oven Screw
18	4452601 Whirlpool Grommet
18	Harness, Wire (Main)
18	Power Cord
