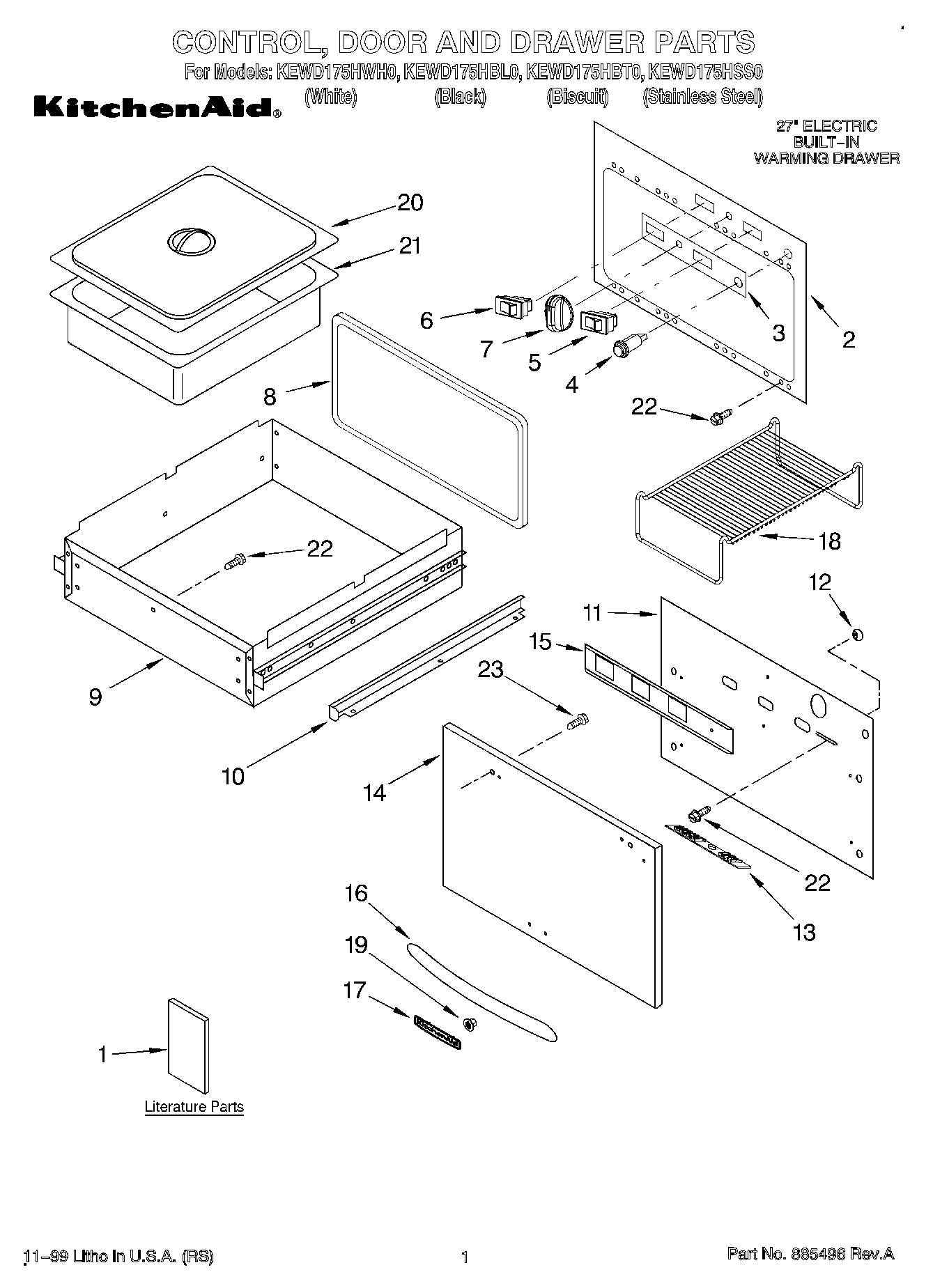

KEWD175HBL0 01 – SECTION

Products

Position	Product
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
1	Literature Parts (Tech Sheet)
2	Panel, Control
3	Escutchen, Control Panel
4	Light, Indicator
5	Switch, Rocker SPST Illuminated
6	WP4452842 Whirlpool Light Switch
7	W10854530 Whirlpool Knob Assembly
8	Gasket, Drawer
9	Drawer Assembly
10	Adapter
11	Liner, Door
12	Knob, Ball
13	Label, Moist/Dry
14	Door, Front Assy (Black)
14	Door, Front Assy (White)
14	Door, Front Assy (Biscuit)
14	Door, Front Assy (Stainless Steel)
15	Vent, Slide
16	Door Handle (Stainless Steel)
16	Handle, Door (Black)
16	Handle, Door (White)
16	Handle, Door (Biscuit)
17	Nameplate (Black)
18	Rack, Warming
19	Palnut
20	Cover, Pan (Large, (Half))
21	Pan, Warming (Large (Half))
22	Screw
23	WPW10132940 Whirlpool Dishwasher Screw
