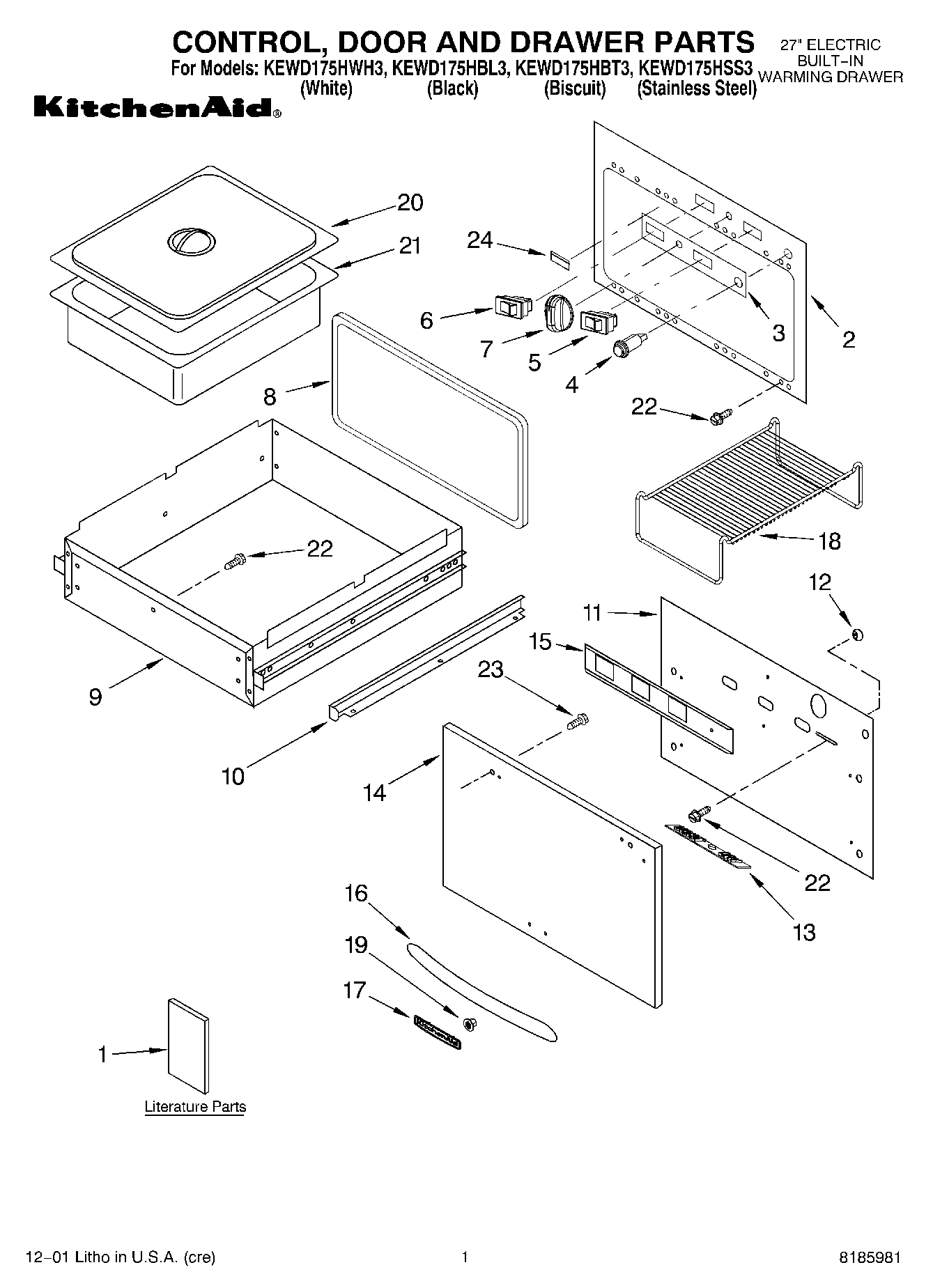

KEWD175HBL3 01 – SECTION

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Use & Care Guide)
1	Literature Parts (Installation Instructions)
2	Panel, Control
3	Escutchen, Control Panel
4	Light, Indicator
5	Switch, Rocker SPST Illuminated
6	WP4452842 Whirlpool Light Switch
7	W10854530 Whirlpool Knob Assembly
8	Gasket, Drawer
9	Drawer Assembly
10	Adapter
11	Liner, Drawer
12	Knob, Ball
13	Label, Moist/Dry
14	Door, Front Assy (Stainless Steel)
14	Door, Front Assy (Black)
14	Door, Front Assy (White)
14	Door, Front Assy (Biscuit)
15	Vent, Slide
16	Door Handle (Stainless Steel)
16	Handle, Door (White)
16	Handle, Door (Biscuit)
16	Handle, Door (Black)
17	Nameplate (Black)
18	Rack, Warming
19	Palnut
20	Cover, Pan (Large, (Half))
21	Pan, Warming (Large (Half))
22	WP3196557 Whirlpool Screw
23	WPW10132940 Whirlpool Dishwasher Screw
24	Insulation
