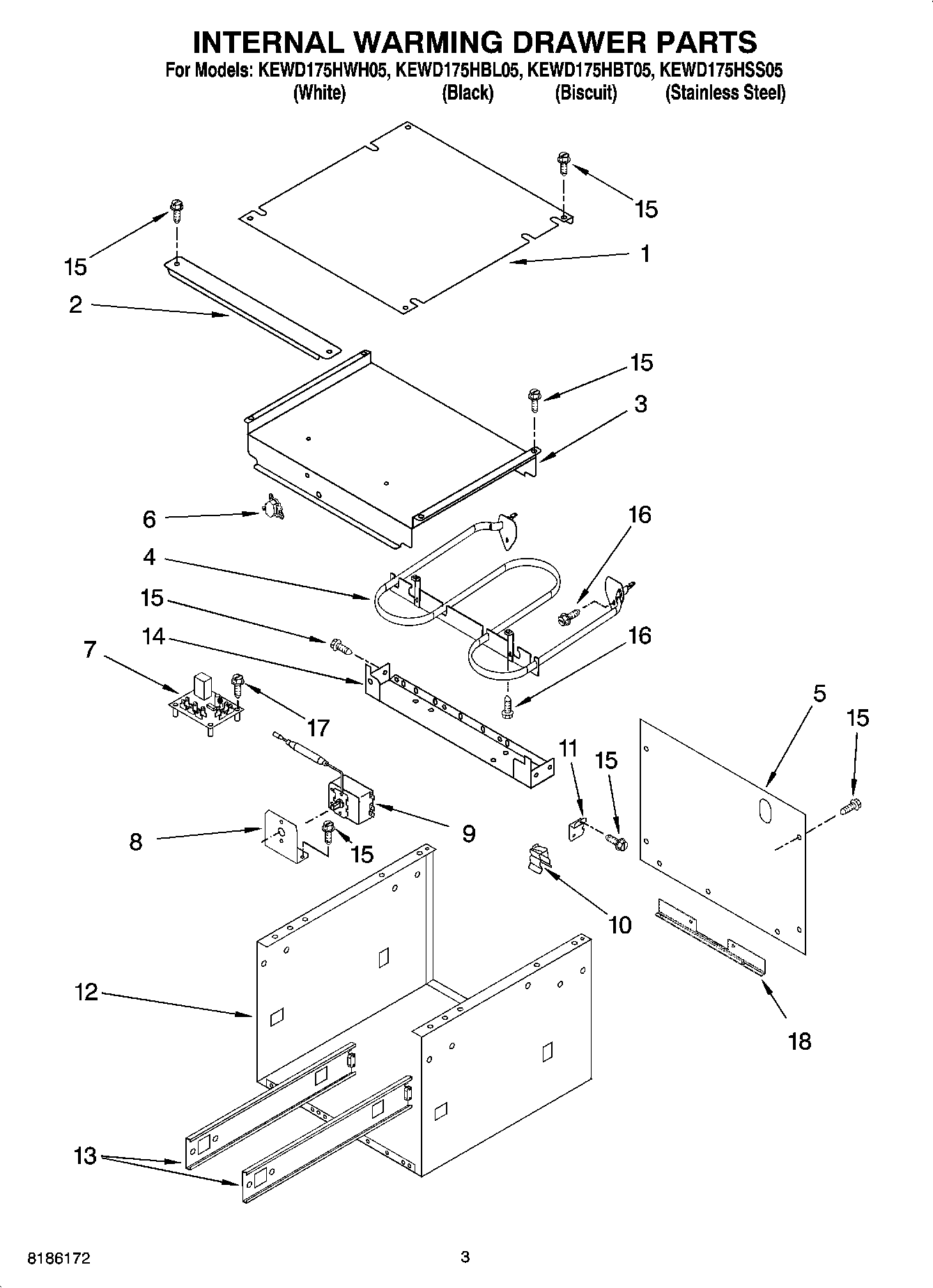

KEWD175HSS05 02 – INTERNAL WARMING DRAWER PARTSadmin2025-04-26T09:47:56+00:00KEWD175HSS05 02 – INTERNAL WARMING DRAWER PARTS
Products
| Position | Product |
|---|
| 1 | Top, Wrapper |
| 2 | Panel, Service |
| 3 | Plate, Element Mounting |
| 4 | WP9760767 Whirlpool Range Wall Oven Broil Element |
| 5 | Back, Wrapper |
| 6 | WP4450934 Whirlpool Thermostat Assembly |
| 6 | Screw |
| 7 | Timer Assembly |
| 8 | Bracket, Mounting Thermostat |
| 9 | Thermostat, Bi-Metal |
| 10 | Clip, Thermostat |
| 11 | Bracket, Mounting |
| 12 | WRAPPER |
| 13 | Slide Assembly (Left Hand) |
| 13 | Slide Assembly (Right hand) |
| 14 | Bracket, Control |
| 15 | WP3400805 Whirlpool Screw Assembly |
| 16 | WP4449809 Whirlpool Screw |
| 17 | 3400618 Whirlpool Screw |
| 18 | Insulation |
| 18 | FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS |
| 18 | 4450800 Whirlpool Oven Screw |
| 18 | WP4448950 Whirlpool Screw |
| 18 | Harness, Wire (Main) |
| 18 | Hook, Bracket |
| 18 | 4452601 Whirlpool Grommet |
| 18 | Insulation |
| 18 | Power Cord |
| 18 | Miscellaneous |
