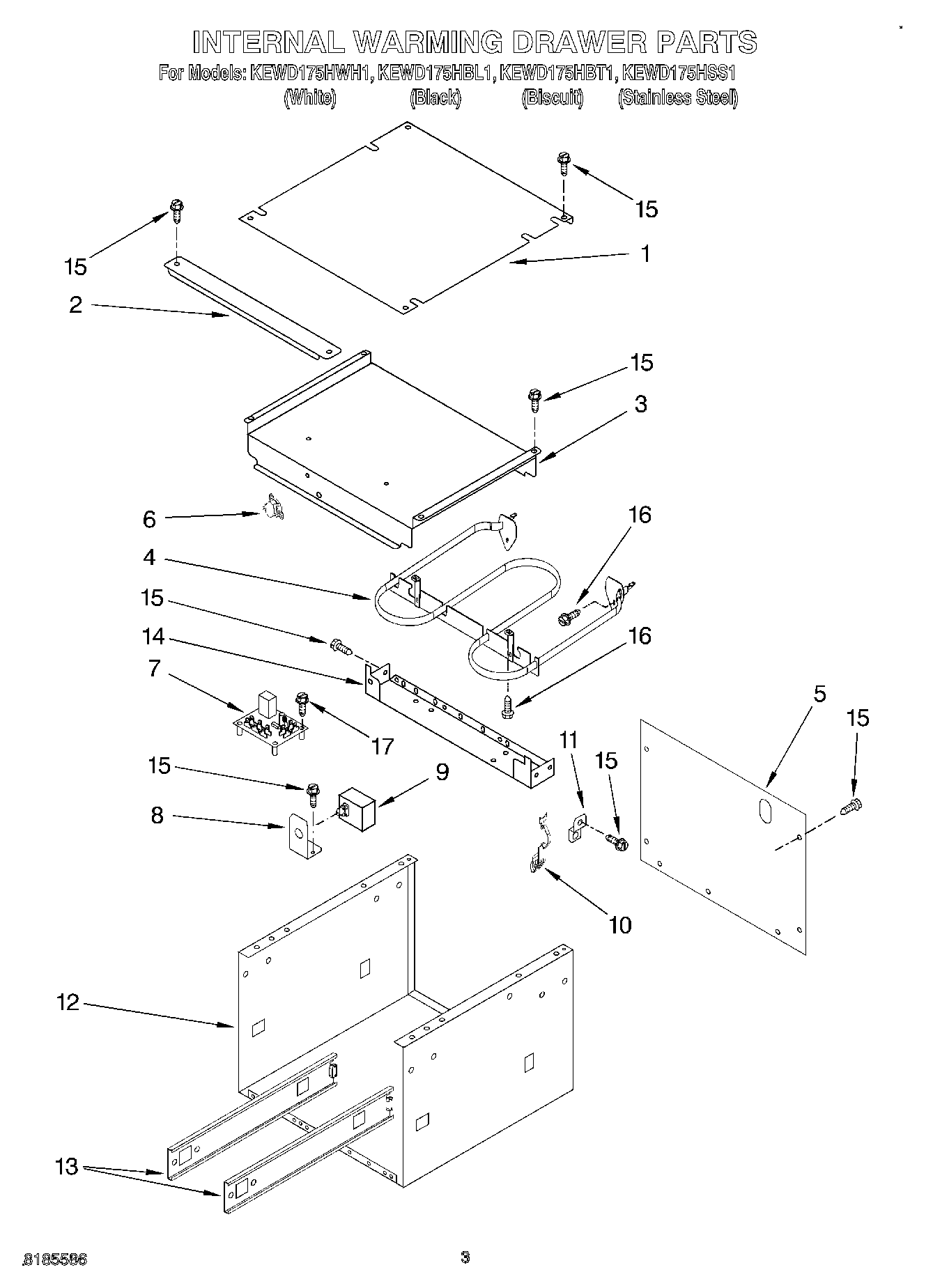

KEWD175HSS1 02 – SECTION

Products

Position	Product
1	Top, Wrapper
2	Panel, Service
3	Plate, Element Mounting
4	WP9760767 Whirlpool Range Wall Oven Broil Element
5	Back, Wrapper
6	WP4450934 Whirlpool Thermostat Assembly
7	Timer Assembly
8	Bracket, Mounting Thermostat
9	Thermostat, Bi-Metal
10	Clip, Thermostat
11	Bracket, Mounting
12	Wrapper
13	Slide Assembly (Left Hand)
13	Slide Assembly (Right hand)
14	Bracket, Control
15	WP3400805 Whirlpool Screw Assembly
16	WP4449809 Whirlpool Screw
17	Insulation
17	Power Cord
17	Harness, Wire (Main)
17	WP4448950 Whirlpool Screw
17	4452601 Whirlpool Grommet
17	4450800 Whirlpool Oven Screw
17	Screw
