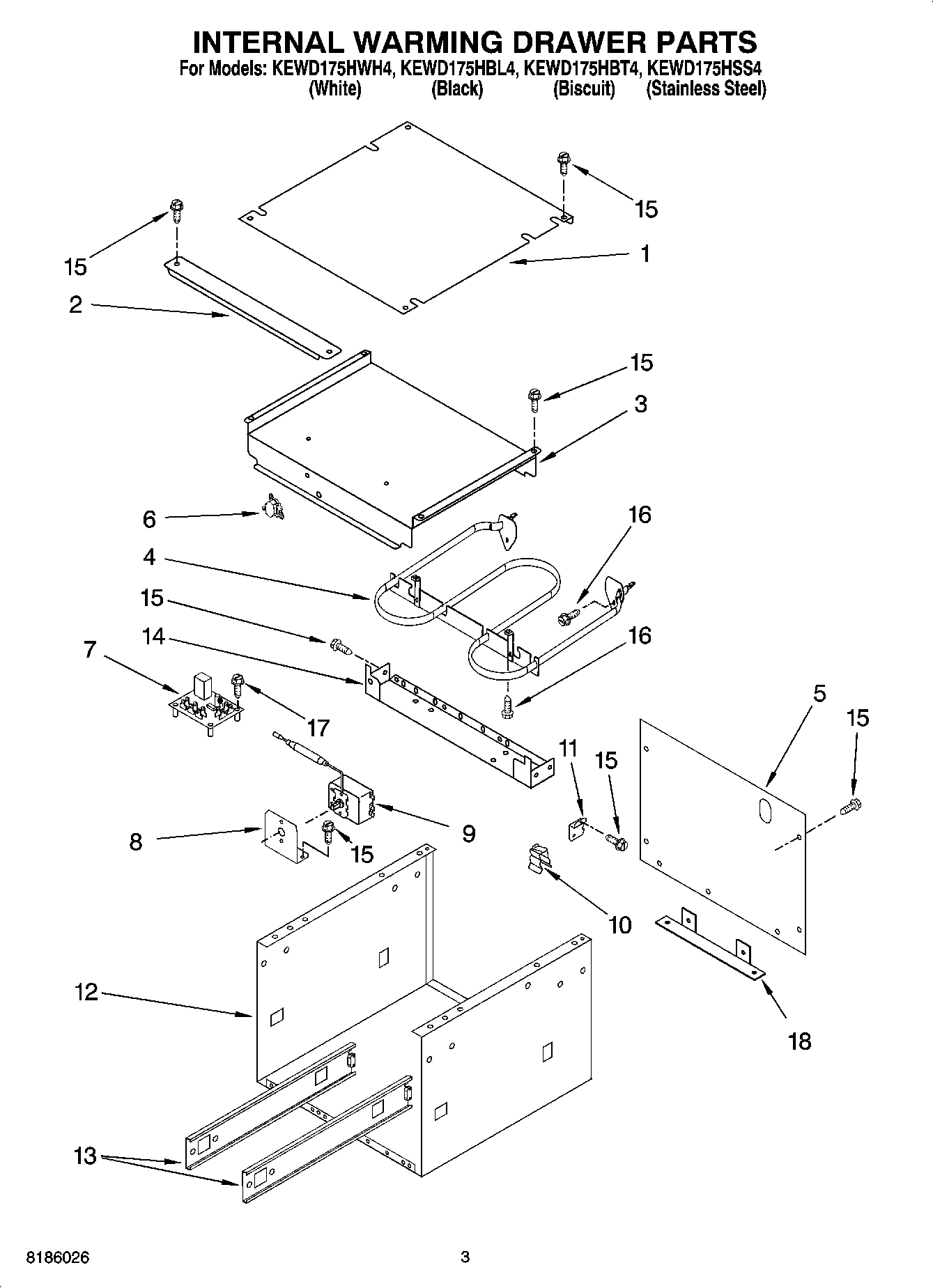

KEWD175HWH4 02 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
1	Top, Wrapper
2	Panel, Service
3	Plate, Element Mounting
4	WP9760767 Whirlpool Range Wall Oven Broil Element
5	Back, Wrapper
6	WP4450934 Whirlpool Thermostat Assembly
6	Screw
7	Timer Assembly
8	Bracket, Mounting Thermostat
9	Thermostat, Bi-Metal
10	Clip, Thermostat
11	Bracket, Mounting
12	Wrapper
13	Slide Assembly (Left Hand)
13	Slide Assembly (Right hand)
14	Bracket, Control
15	WP3400805 Whirlpool Screw Assembly
16	WP4449809 Whirlpool Screw
17	Screw
18	Insulation
18	FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS
18	4450800 Whirlpool Oven Screw
18	WP4448950 Whirlpool Screw
18	Harness, Wire (Main)
18	Hook, Bracket
18	4452601 Whirlpool Grommet
18	Insulation
18	Power Cord
18	Miscellaneous
