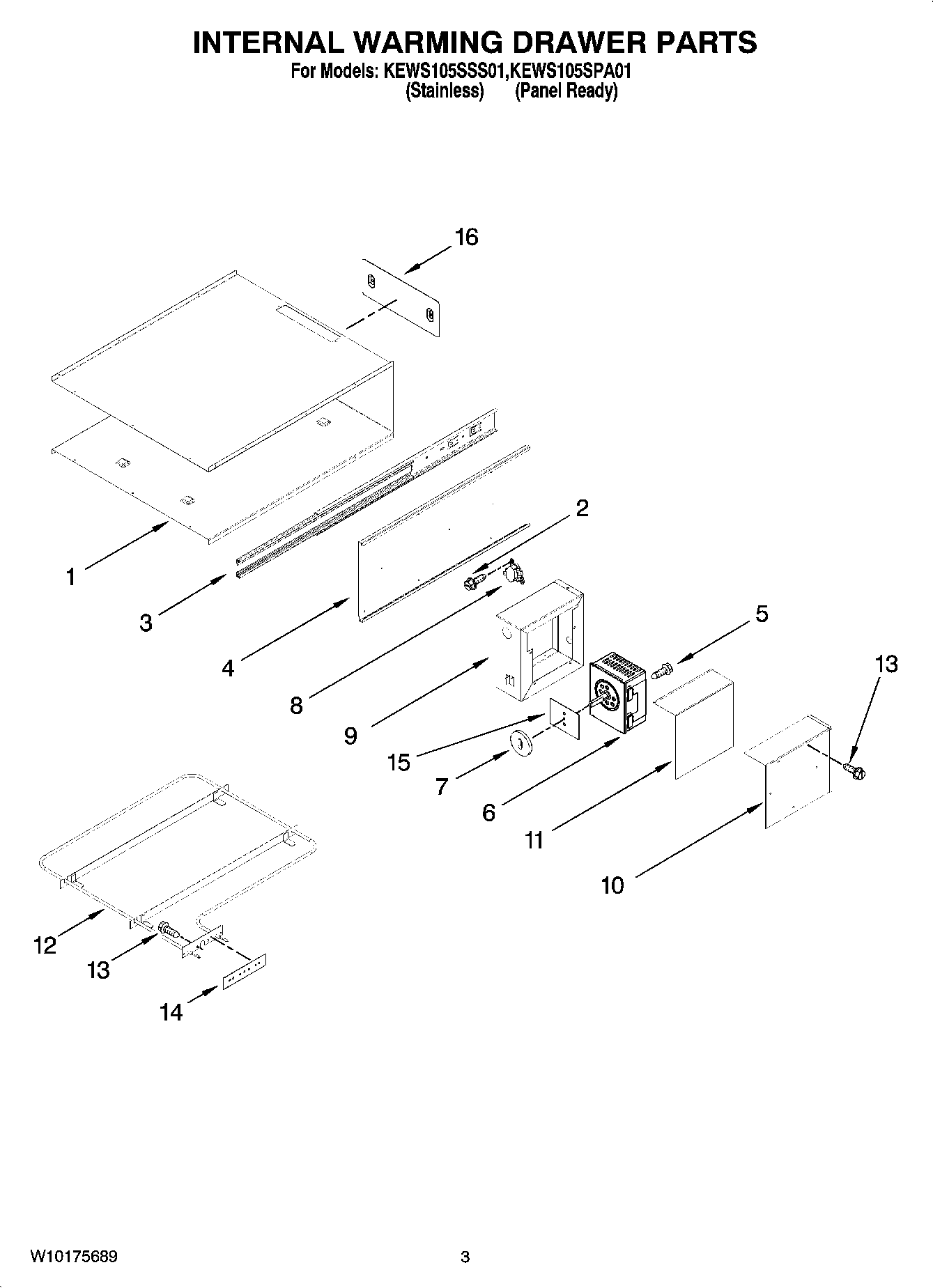

KEWS105SPA01 02 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
	WP3400015 Whirlpool Screw
	WIRING HARNESS PARTS
	Following Parts Not Illustrated
	W10620782 Whirlpool Drawer Panel
	W10131847 Whirlpool Sensor
	W10129043 Whirlpool Wire Harness
	W10129023 Whirlpool Power Cord
	ACCESSORY PARTS
	Front Panel Assembly, Includes Handle & Badge (Black)
	4452601 Whirlpool Grommet
	Cleaner, Stainless Steel
1	9762305 Whirlpool Wrapper
2	Screw
3	WPW10188461 Whirlpool Drawer Slide
4	Wall (Left)
4	9762307 Whirlpool Drawer Panel
5	WP486579 Whirlpool Air Conditioner Screw
6	W11708324 Whirlpool Control
7	W10117362 Whirlpool Gasket
8	9763126 Whirlpool Thermal Fuse
9	9763122 Whirlpool Enclosure
10	W10182072 Whirlpool Access Cover
12	W10546520 Whirlpool Broil Element
13	WP3196557 Whirlpool Screw
14	W10118049 Whirlpool Element Seal
15	W10118113 Whirlpool Seal Switch
16	W10118073 Whirlpool Heater Shield
