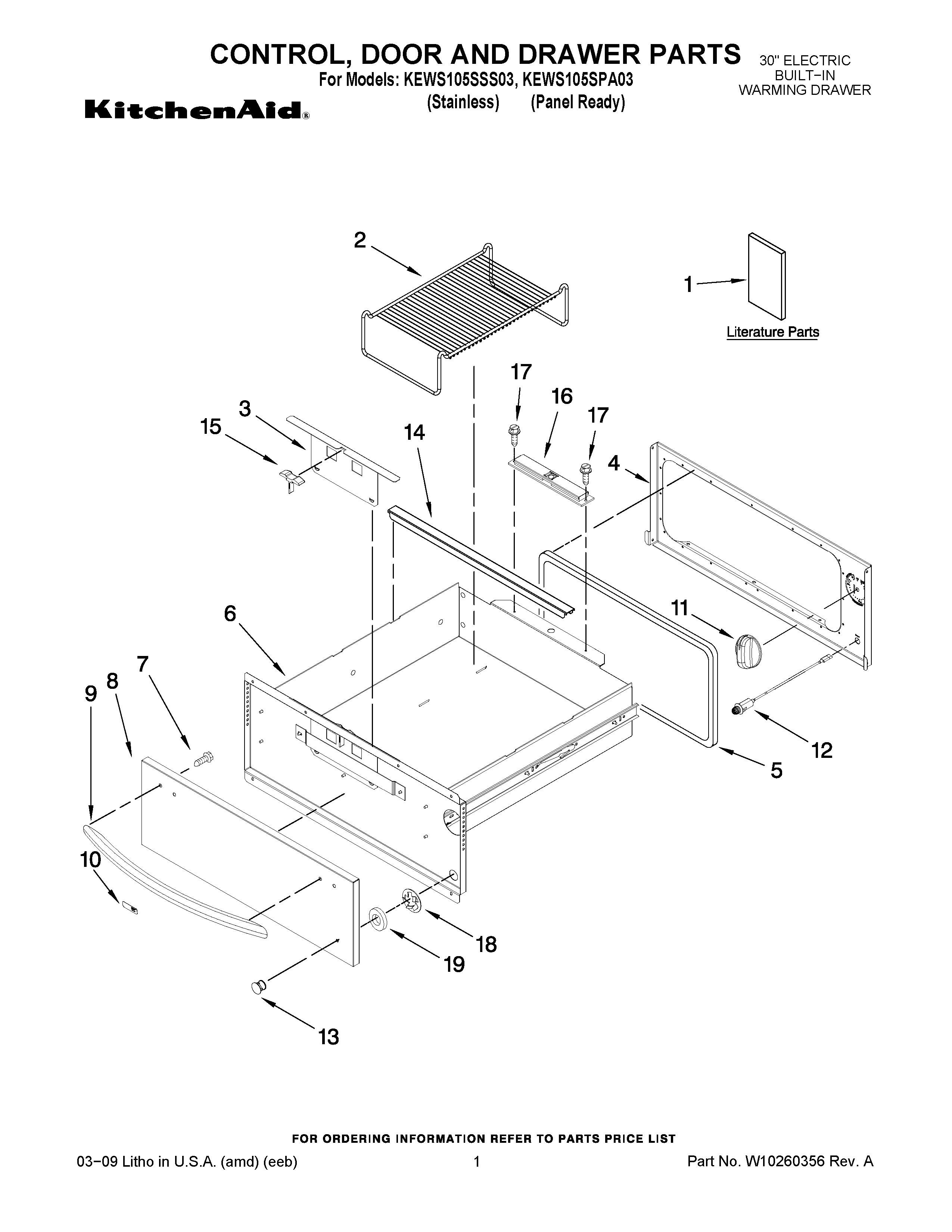

KEWS105SPA03 01 – CONTROL, DOOR AND DRAWER PARTS

KEWS105SPA03 01 – CONTROL, DOOR AND DRAWER PARTS

Written by

in

KEWS105SPA03 01 – CONTROL, DOOR AND DRAWER PARTS

Products

PositionProduct
1Installation Instructions
1Tech Sheet
1Use & Care Guide
28273277 Whirlpool Oven Rack Assembly
3W10162376 Whirlpool Vent Slide
4Panel, Front
5GASKET, DRAWER
6WP9763646 Whirlpool Warm Drawer
7WP4449743 Whirlpool Screw
8Door, Panel Stainless Only
9Door Handle
10Badge (Stainless)
11W10854530 Whirlpool Knob Assembly
12Light, Indicator
139763644 Whirlpool Appliance Light Lens
134456314 Whirlpool Lens Light
14W10409138 Whirlpool Pan Rail
159763125 Whirlpool Vent Grip
16W10035910 Whirlpool Magnet Assembly
17WP3196557 Whirlpool Screw
184456862 Whirlpool Clip
194456861 Whirlpool Washer
