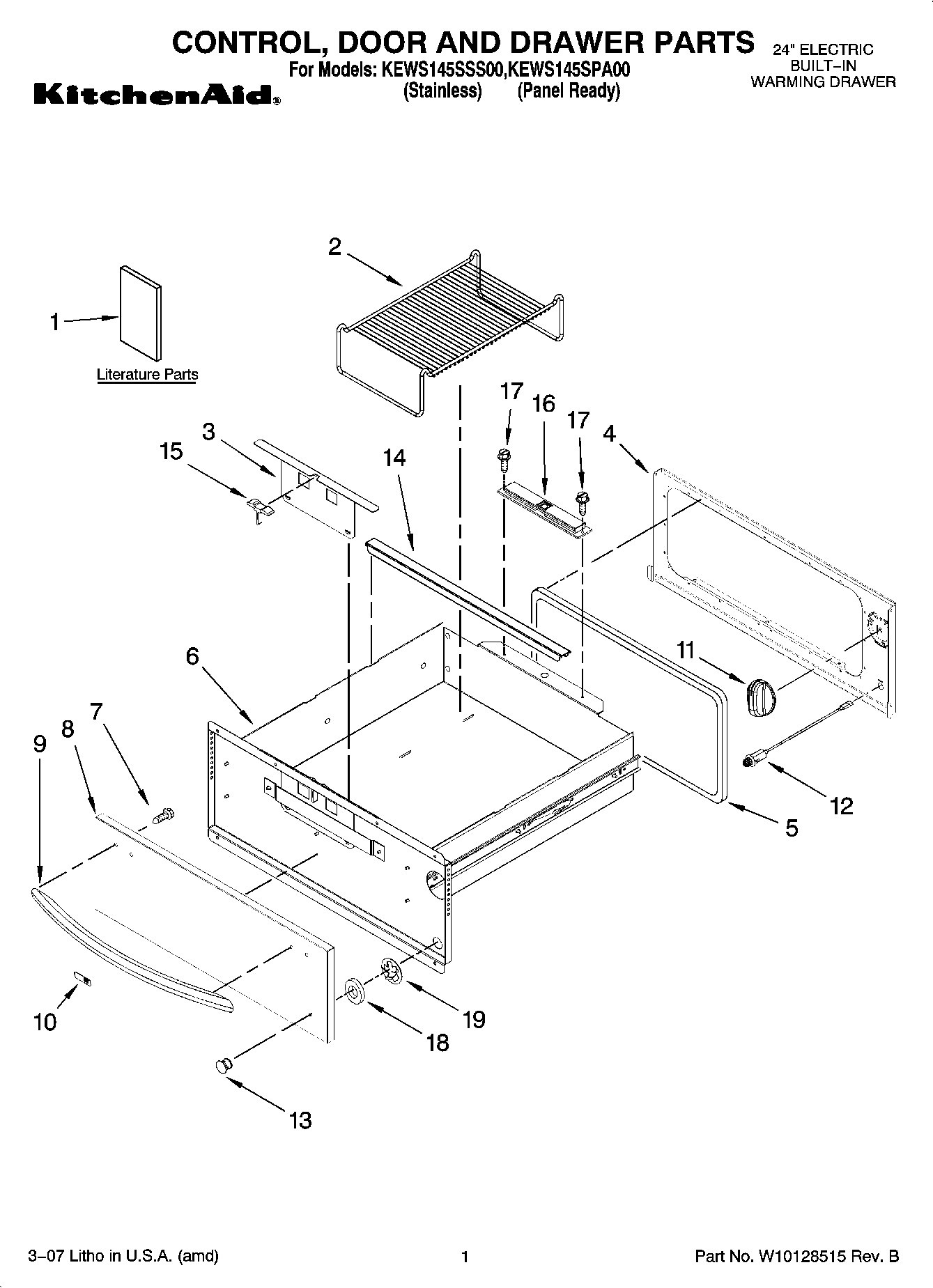

KEWS145SPA00 01 – CONTROL, DOOR AND DRAWER PARTS

Products

Position	Product
1	Use & Care Guide
1	Tech Sheet
1	Installation Instructions
2	8273277 Whirlpool Oven Rack Assembly
3	W10162376 Whirlpool Vent Slide
4	W10306304 Whirlpool Control Panel
5	Gasket, Drawer
6	9763127 Whirlpool Warm Drawer
7	WP4449743 Whirlpool Screw
8	Door Panel
9	Handle, Drawer (Stainless)
10	Nameplate (S.Steel)
11	W10854530 Whirlpool Knob Assembly
12	Light, Indicator
13	4456314 Whirlpool Lens Light
14	Rail, Pan (2)
15	9763125 Whirlpool Vent Grip
16	W10035910 Whirlpool Magnet Assembly
17	WP3196557 Whirlpool Screw
18	4456861 Whirlpool Washer
19	4456862 Whirlpool Clip
