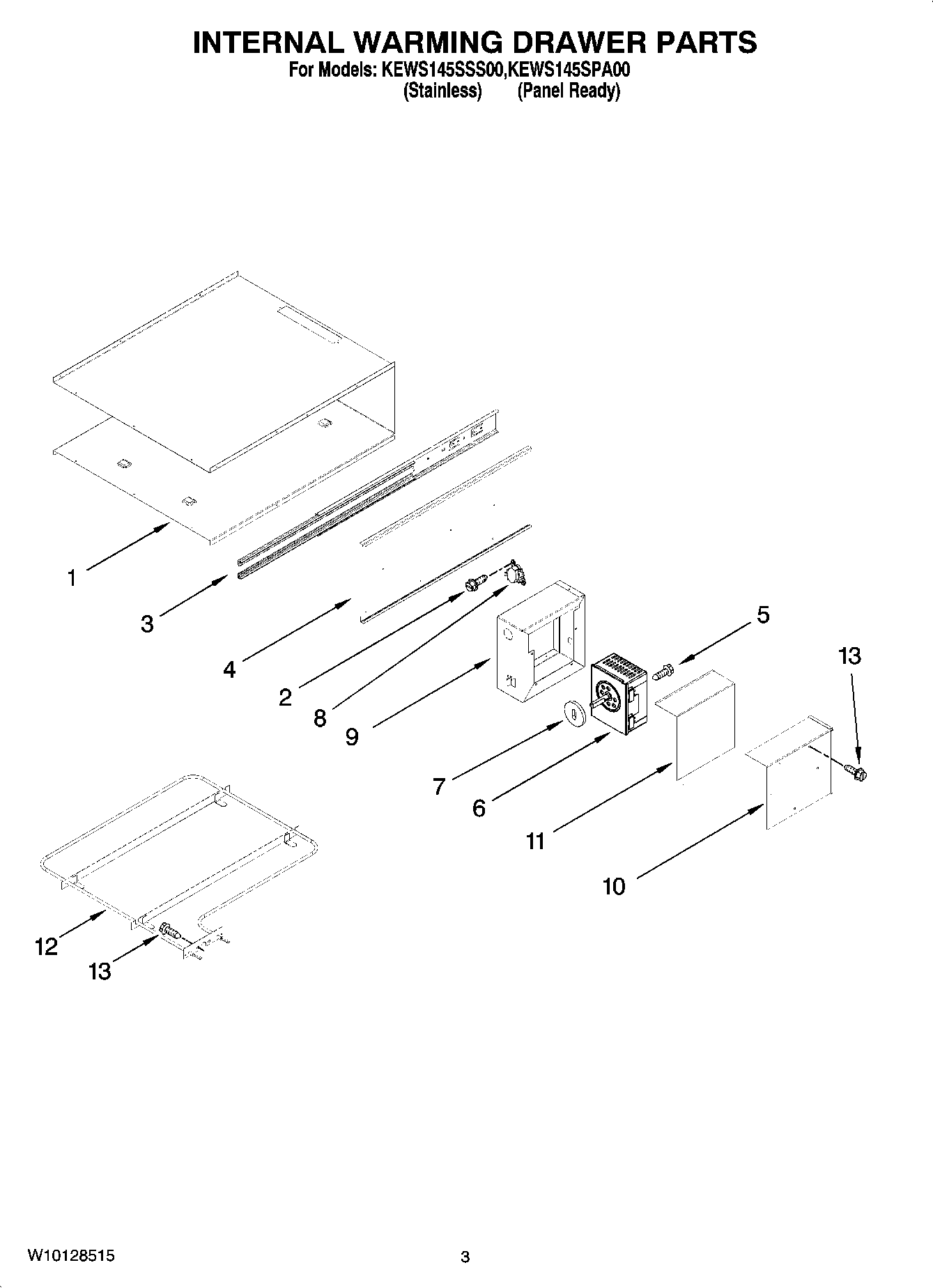

KEWS145SPA00 02 – INTERNAL WARMING DRAWER PARTS
Written by
in
KEWS145SPA00 02 – INTERNAL WARMING DRAWER PARTS
Products
Position
Product
1
W10684521 Whirlpool Wrapper Assembly
2
Screw
3
WPW10188461 Whirlpool Drawer Slide
4
Wall (Left)
4
9762307 Whirlpool Drawer Panel
5
WP486579 Whirlpool Air Conditioner Screw
6
W11708324 Whirlpool Control
7
W10117362 Whirlpool Gasket
8
9763126 Whirlpool Thermal Fuse
9
9763122 Whirlpool Enclosure
10
W10182072 Whirlpool Access Cover
11
Gasket, Enclosure
12
Element, Heating
13
W10131847 Whirlpool Sensor
13
W10129043 Whirlpool Wire Harness
13
4452601 Whirlpool Grommet
13
4450800 Whirlpool Oven Screw
13
WP3196557 Whirlpool Screw
13
Cleaner, Stainless Steel
13
W10080120 Whirlpool Power Cord
←
