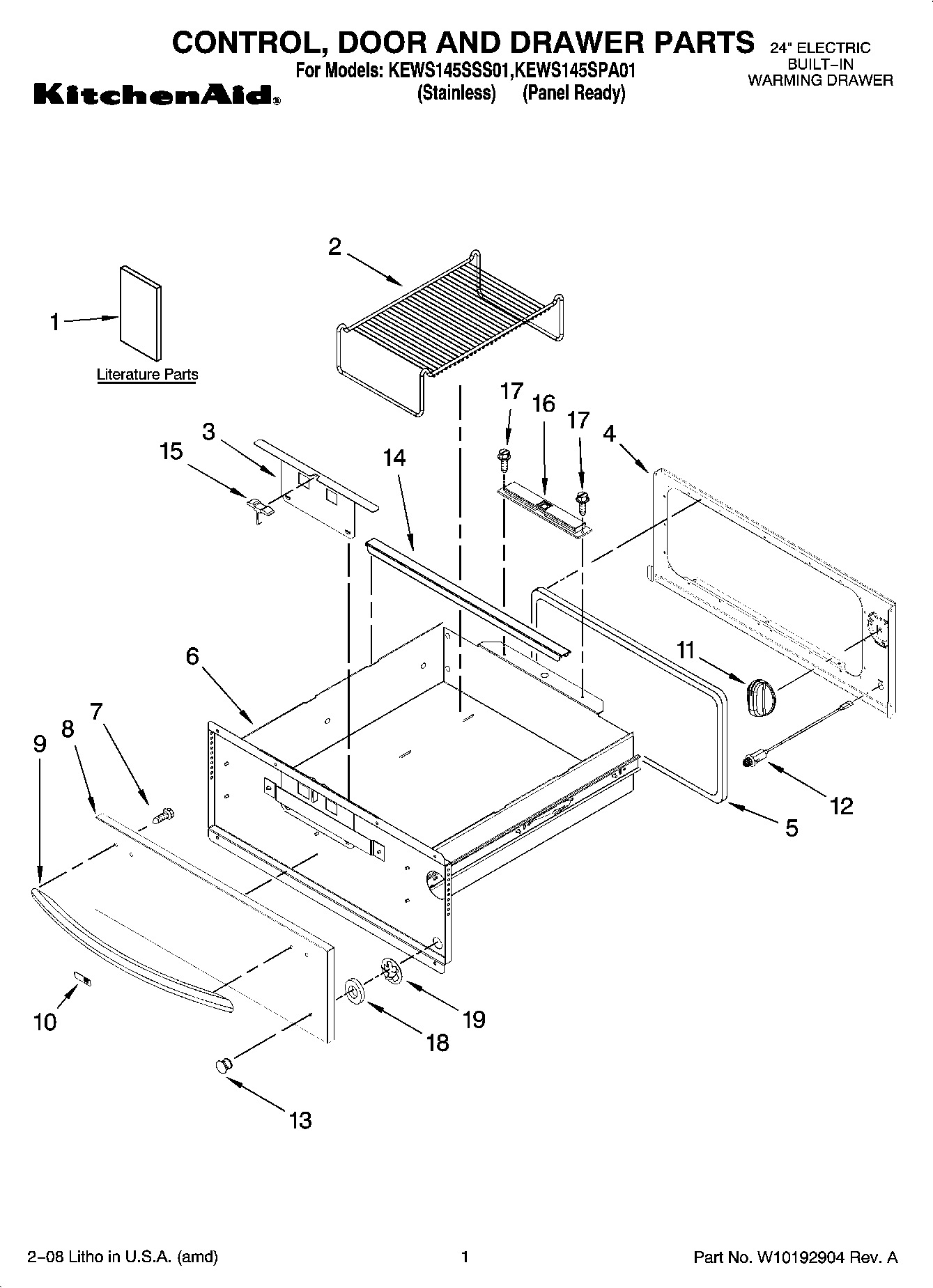

KEWS145SPA01 01 – CONTROL, DOOR AND DRAWER PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Tech Sheet
2	8273277 Whirlpool Oven Rack Assembly
3	W10162376 Whirlpool Vent Slide
4	W10306304 Whirlpool Control Panel
5	Gasket, Drawer
6	9763127 Whirlpool Warm Drawer
7	WP4449743 Whirlpool Screw
8	Door Panel
9	Handle, Drawer (Stainless)
10	Badge (Stainless)
11	W10854530 Whirlpool Knob Assembly
12	Light, Indicator
13	4456314 Whirlpool Lens Light
13	9763644 Whirlpool Appliance Light Lens
14	Rail, Pan (2)
15	9763125 Whirlpool Vent Grip
16	W10035910 Whirlpool Magnet Assembly
17	WP3196557 Whirlpool Screw
18	4456861 Whirlpool Washer
19	4456862 Whirlpool Clip
