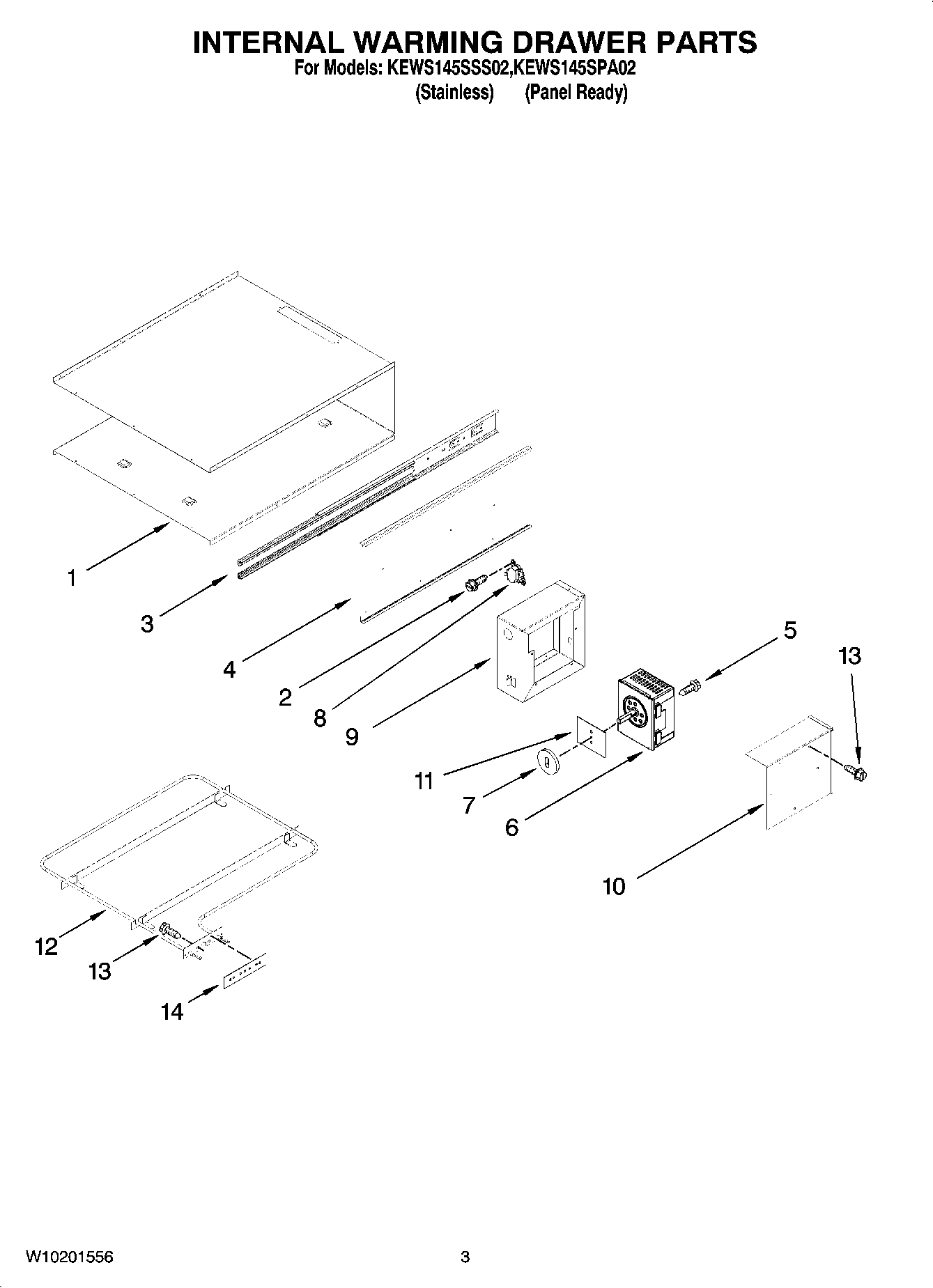

KEWS145SPA02 02 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
	WIRING HARNESS PARTS
	W10129043 Whirlpool Wire Harness
	W10131847 Whirlpool Sensor
	W10129023 Whirlpool Power Cord
	4452601 Whirlpool Grommet
	Following Parts Not Illustrated
1	W10684521 Whirlpool Wrapper Assembly
2	Screw
3	WPW10188461 Whirlpool Drawer Slide
4	Wall (Left)
4	9762307 Whirlpool Drawer Panel
5	WP486579 Whirlpool Air Conditioner Screw
6	W11708324 Whirlpool Control
7	W10117362 Whirlpool Gasket
8	9763126 Whirlpool Thermal Fuse
9	9763122 Whirlpool Enclosure
10	W10182072 Whirlpool Access Cover
11	W10118113 Whirlpool Seal Switch
12	Element, Heating
13	WP3196557 Whirlpool Screw
14	W10118049 Whirlpool Element Seal
