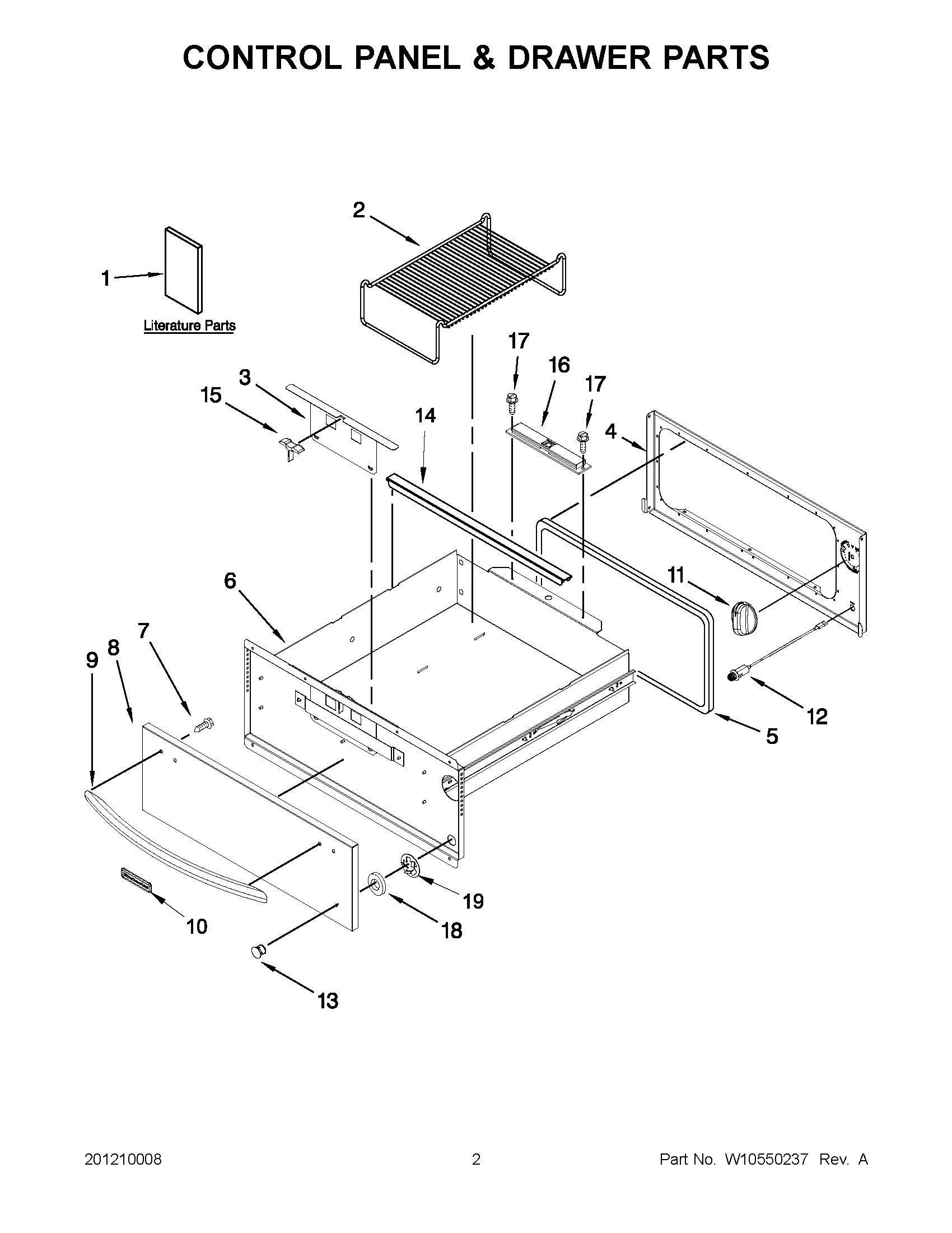

KEWS145SPA04 01 – CONTROL PANEL & DRAWER PARTS

KEWS145SPA04 01 – CONTROL PANEL & DRAWER PARTS

Written by

in

KEWS145SPA04 01 – CONTROL PANEL & DRAWER PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1USE & CARE GUIDE
1Tech Sheet
28273277 Whirlpool Oven Rack Assembly
3W10162376 Whirlpool Vent Slide
4W10306304 Whirlpool Control Panel
5W10164996 Whirlpool Door Gasket
69763127 Whirlpool Warm Drawer
7WP4449743 Whirlpool Screw
8Door Panel
9HANDLE, DRAWER
10WPW10243391 Whirlpool Refrigerator Nameplate
11W10854530 Whirlpool Knob Assembly
12W10489562 Whirlpool Indicator Light
134456314 Whirlpool Lens Light
139763644 Whirlpool Appliance Light Lens
14W10409136 Whirlpool Rail Pan
159763125 Whirlpool Vent Grip
16W10035910 Whirlpool Magnet Assembly
17WP3196557 Whirlpool Screw
184456861 Whirlpool Washer
194456862 Whirlpool Clip
