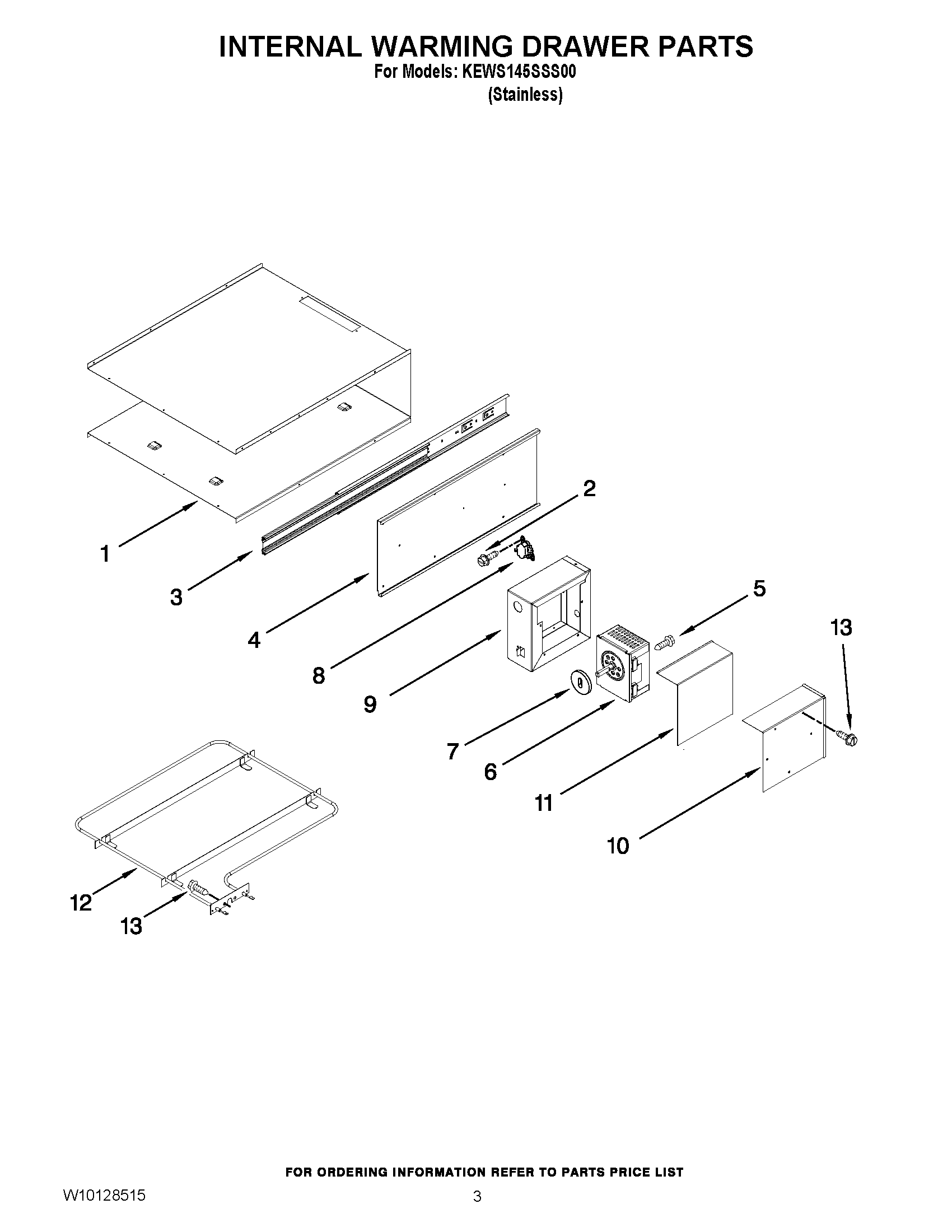

KEWS145SSS00 02 – INTERNAL WARMING DRAWER PARTS

KEWS145SSS00 02 – INTERNAL WARMING DRAWER PARTS

Written by

in

KEWS145SSS00 02 – INTERNAL WARMING DRAWER PARTS

Products

PositionProduct
NIW10080120 Whirlpool Power Cord
NI4450800 Whirlpool Oven Screw
NIW10131847 Whirlpool Sensor
NICleaner, Stainless Steel
NIW10129043 Whirlpool Wire Harness
NI4452601 Whirlpool Grommet
1W10684521 Whirlpool Wrapper Assembly
2Screw
3WPW10188461 Whirlpool Drawer Slide
49762307 Whirlpool Drawer Panel
4Wall (Left)
5WP486579 Whirlpool Air Conditioner Screw
6W11708324 Whirlpool Control
7W10117362 Whirlpool Gasket
89763126 Whirlpool Thermal Fuse
99763122 Whirlpool Enclosure
10W10182072 Whirlpool Access Cover
11Gasket, Enclosure
12Element, Heating
13WP3196557 Whirlpool Screw
