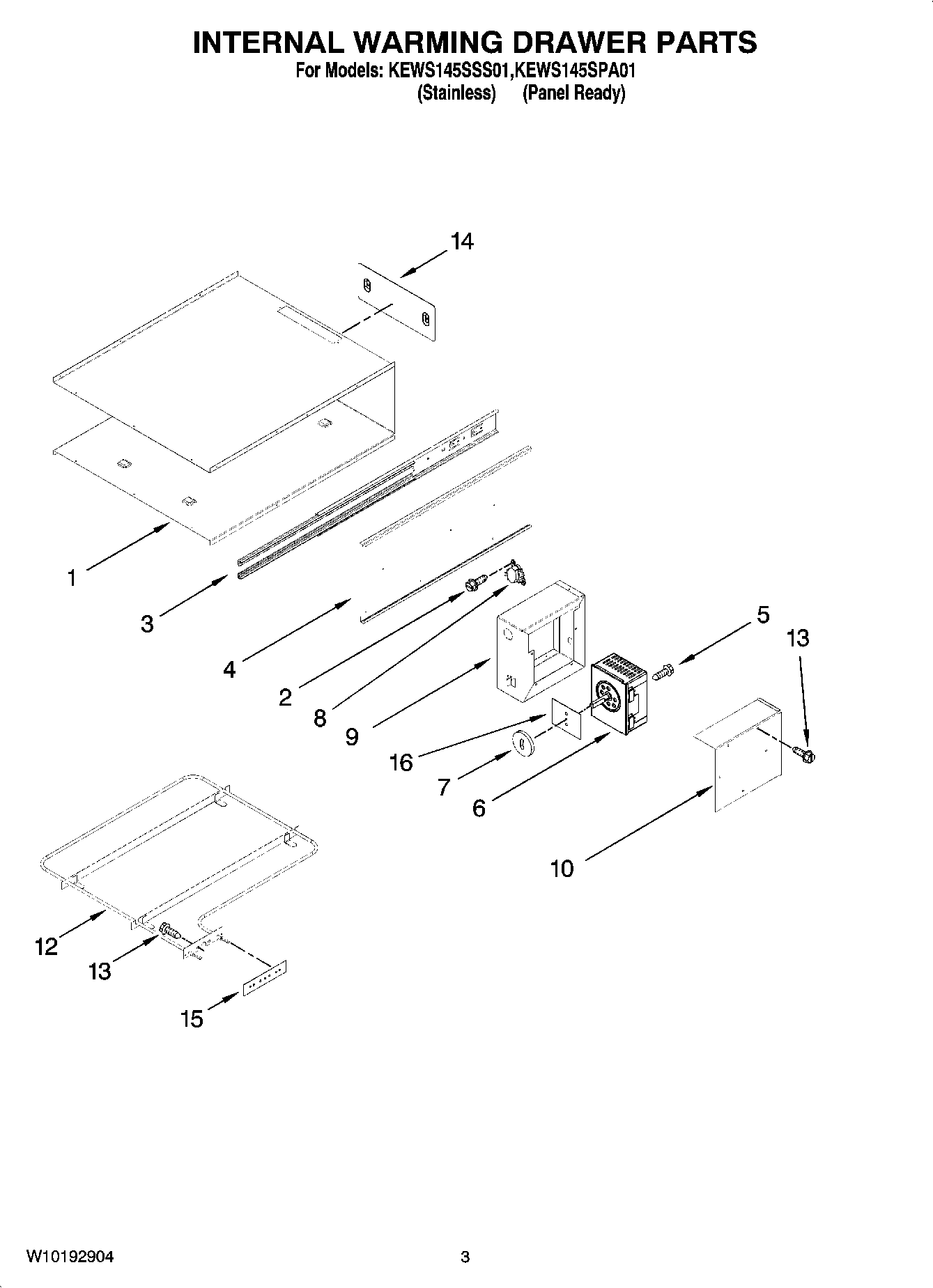

KEWS145SSS01 02 – INTERNAL WARMING DRAWER PARTS

KEWS145SSS01 02 – INTERNAL WARMING DRAWER PARTS

Written by

in

KEWS145SSS01 02 – INTERNAL WARMING DRAWER PARTS

Products

PositionProduct
W10131847 Whirlpool Sensor
WIRING HARNESS PARTS
W10129023 Whirlpool Power Cord
Following Parts Not Illustrated
4452601 Whirlpool Grommet
W10129043 Whirlpool Wire Harness
1W10684521 Whirlpool Wrapper Assembly
2Screw
3WPW10188461 Whirlpool Drawer Slide
4Wall (Left)
49762307 Whirlpool Drawer Panel
5WP486579 Whirlpool Air Conditioner Screw
6W11708324 Whirlpool Control
7W10117362 Whirlpool Gasket
89763126 Whirlpool Thermal Fuse
99763122 Whirlpool Enclosure
10W10182072 Whirlpool Access Cover
12Element, Heating
13WP3196557 Whirlpool Screw
14W10118073 Whirlpool Heater Shield
15W10118049 Whirlpool Element Seal
16W10118113 Whirlpool Seal Switch
