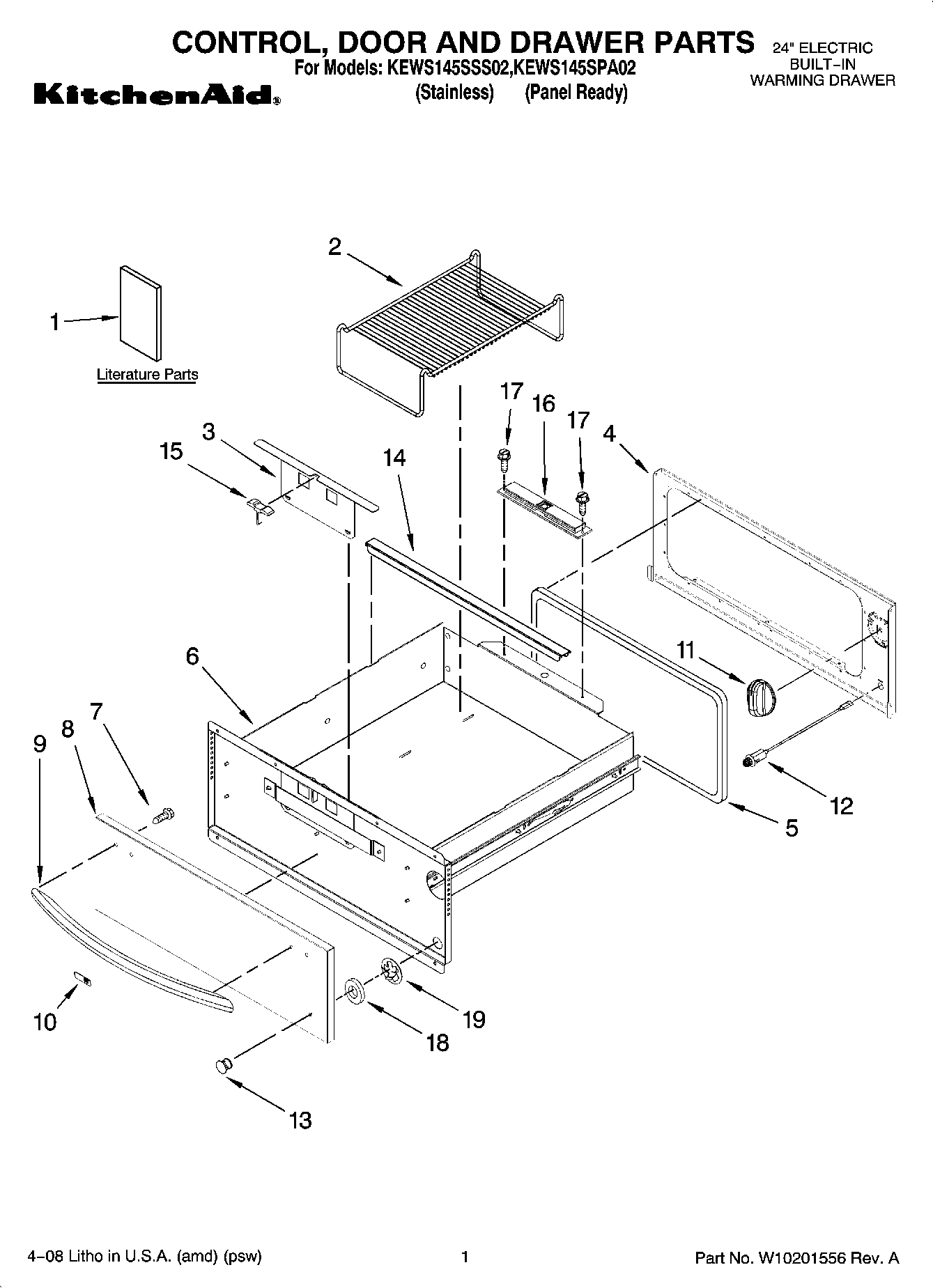

KEWS145SSS02 01 – CONTROL, DOOR AND DRAWER PARTS

KEWS145SSS02 01 – CONTROL, DOOR AND DRAWER PARTS

Written by

in

KEWS145SSS02 01 – CONTROL, DOOR AND DRAWER PARTS

Products

PositionProduct
1Tech Sheet
1Use & Care Guide
1Installation Instructions
28273277 Whirlpool Oven Rack Assembly
3W10162376 Whirlpool Vent Slide
4W10306304 Whirlpool Control Panel
5Gasket, Drawer
69763127 Whirlpool Warm Drawer
7WP4449743 Whirlpool Screw
8Door Panel
9Handle, Drawer (Stainless)
10Badge (Stainless)
11W10854530 Whirlpool Knob Assembly
12Light, Indicator
134456314 Whirlpool Lens Light
14Rail, Pan (2)
159763125 Whirlpool Vent Grip
16W10035910 Whirlpool Magnet Assembly
17WP3196557 Whirlpool Screw
184456861 Whirlpool Washer
194456862 Whirlpool Clip
