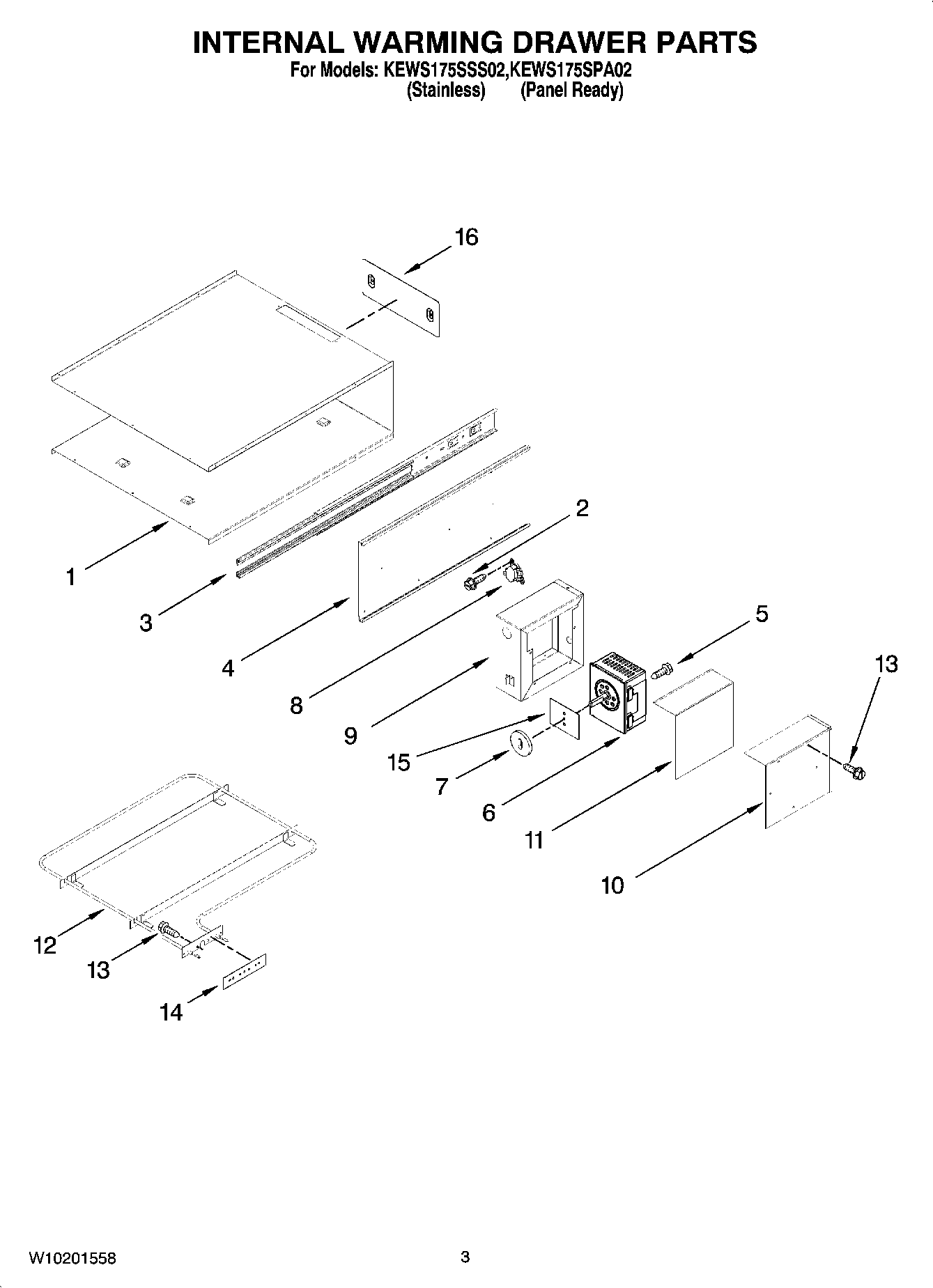

KEWS175SPA02 02 – INTERNAL WARMING DRAWER PARTS

Products

Position	Product
	ACCESSORY PARTS
	W10129043 Whirlpool Wire Harness
	W10131847 Whirlpool Sensor
	Front Panel Assembly, Includes Handle & Badge (Black)
	Front Panel Assembly, Includes Handle & Badge (White)
	Following Parts Not Illustrated
	4452601 Whirlpool Grommet
	WIRING HARNESS PARTS
	W10129023 Whirlpool Power Cord
1	9762304 Whirlpool Wrapper Assembly
2	Screw
3	WPW10188461 Whirlpool Drawer Slide
4	Wall (Left)
4	9762307 Whirlpool Drawer Panel
5	WP486579 Whirlpool Air Conditioner Screw
6	W11708324 Whirlpool Control
7	W10117362 Whirlpool Gasket
8	9763126 Whirlpool Thermal Fuse
9	9763122 Whirlpool Enclosure
10	W10182072 Whirlpool Access Cover
12	Element, Heating
13	WP3196557 Whirlpool Screw
14	W10118049 Whirlpool Element Seal
15	W10118113 Whirlpool Seal Switch
16	W10118073 Whirlpool Heater Shield
