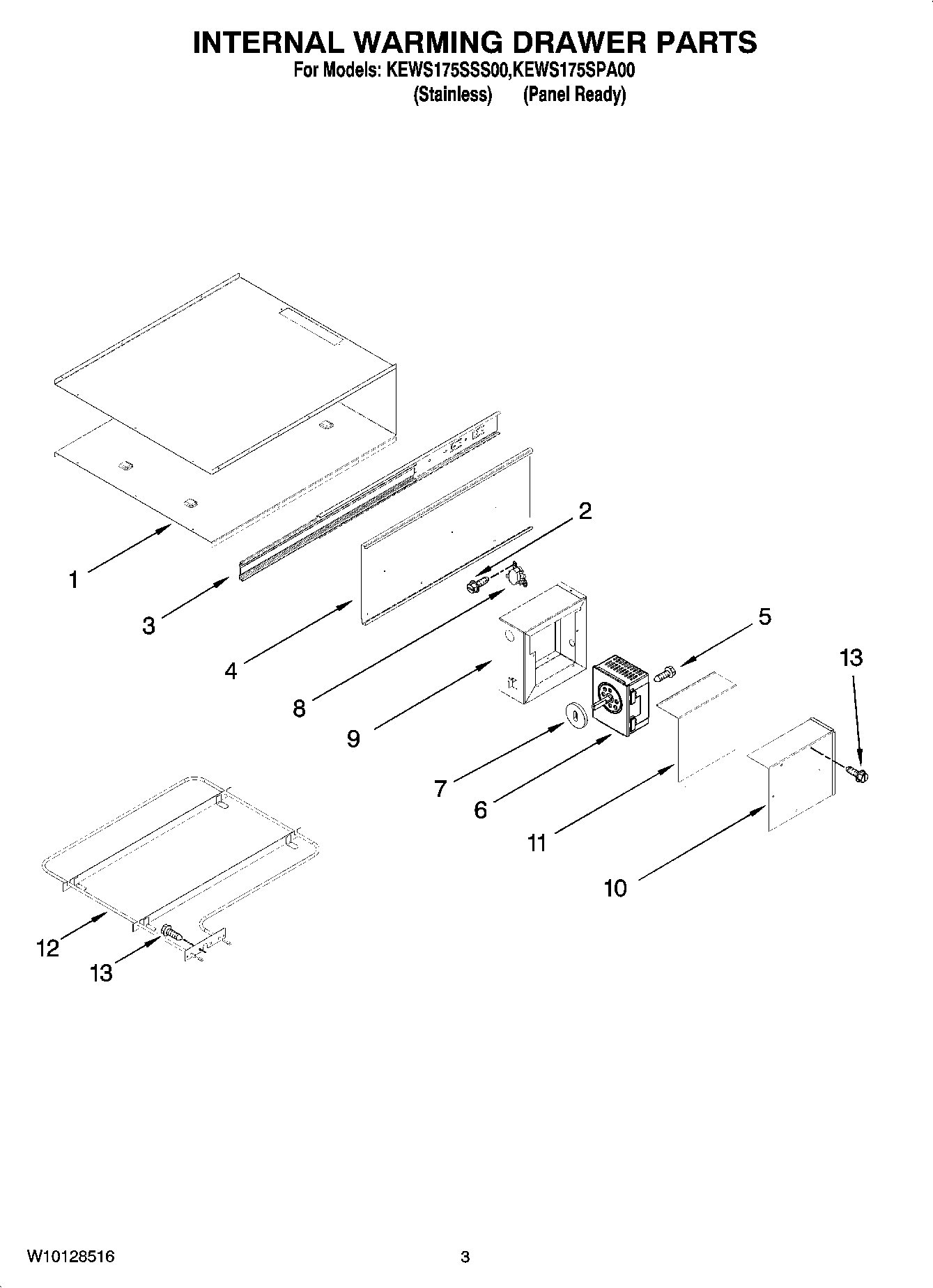

KEWS175SSS00 02 – INTERNAL WARMING DRAWER PARTS

KEWS175SSS00 02 – INTERNAL WARMING DRAWER PARTS

Written by

in

KEWS175SSS00 02 – INTERNAL WARMING DRAWER PARTS

Products

PositionProduct
ACCESSORY PARTS
Front Panel Assembly, Includes Handle & Badge (White)
Front Panel Assembly, Includes Handle & Badge (Black)
19762304 Whirlpool Wrapper Assembly
2Screw
3WPW10188461 Whirlpool Drawer Slide
49762307 Whirlpool Drawer Panel
4Wall (Left)
5WP486579 Whirlpool Air Conditioner Screw
6W11708324 Whirlpool Control
7W10117362 Whirlpool Gasket
89763126 Whirlpool Thermal Fuse
99763122 Whirlpool Enclosure
10W10182072 Whirlpool Access Cover
11Gasket, Enclosure
12Element, Heating
134450800 Whirlpool Oven Screw
13WP3196557 Whirlpool Screw
13FOLLOWING PARTS NOT ILLUSTRATED WIRING HARNESS PARTS
13Cleaner, Stainless Steel
13W10080120 Whirlpool Power Cord
134452601 Whirlpool Grommet
13W10129043 Whirlpool Wire Harness
13W10131847 Whirlpool Sensor
