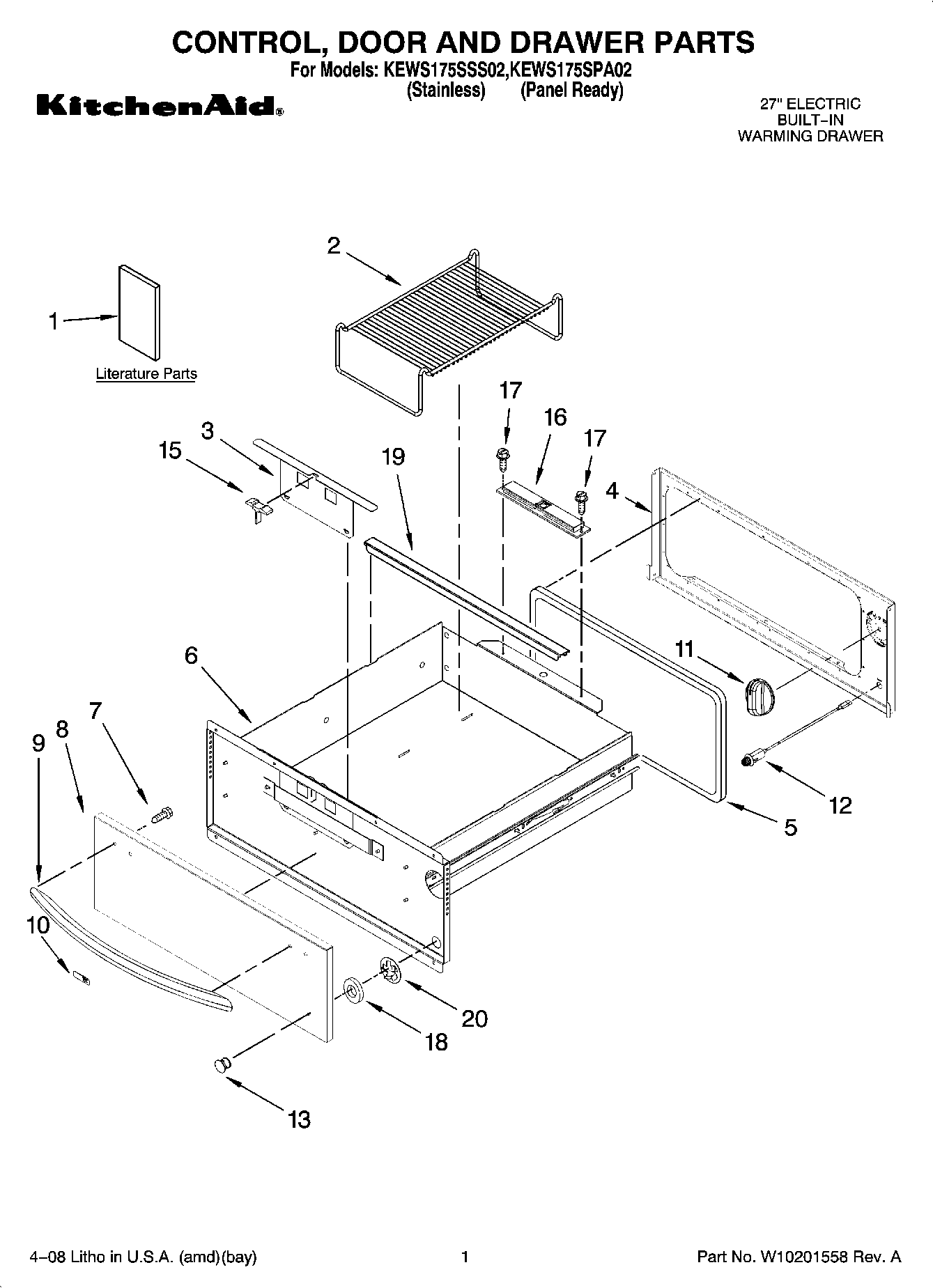

KEWS175SSS02 01 – CONTROL, DOOR AND DRAWER PARTS

Products

Position	Product
1	Use & Care Guide
1	Installation Instructions
1	Tech Sheet
2	8273277 Whirlpool Oven Rack Assembly
3	W10162376 Whirlpool Vent Slide
4	Panel, Front
5	W10164997 Whirlpool Door Gasket
6	WP9763645 Whirlpool Warmer Drawer
7	WP4449743 Whirlpool Screw
8	Door, Front Panel Stainless Only
9	Handle, Door
10	Badge (Stainless)
11	W10854530 Whirlpool Knob Assembly
12	Light, Indicator
13	9763644 Whirlpool Appliance Light Lens
13	4456314 Whirlpool Lens Light
15	9763125 Whirlpool Vent Grip
16	W10035910 Whirlpool Magnet Assembly
17	WP3196557 Whirlpool Screw
18	4456861 Whirlpool Washer
19	Rail, Pan (2)
20	4456862 Whirlpool Clip
