KEWV105MSS00 01 – CONTROL, DOOR AND DRAWER PARTS

KEWV105MSS00 01 – CONTROL, DOOR AND DRAWER PARTS

Written by

in

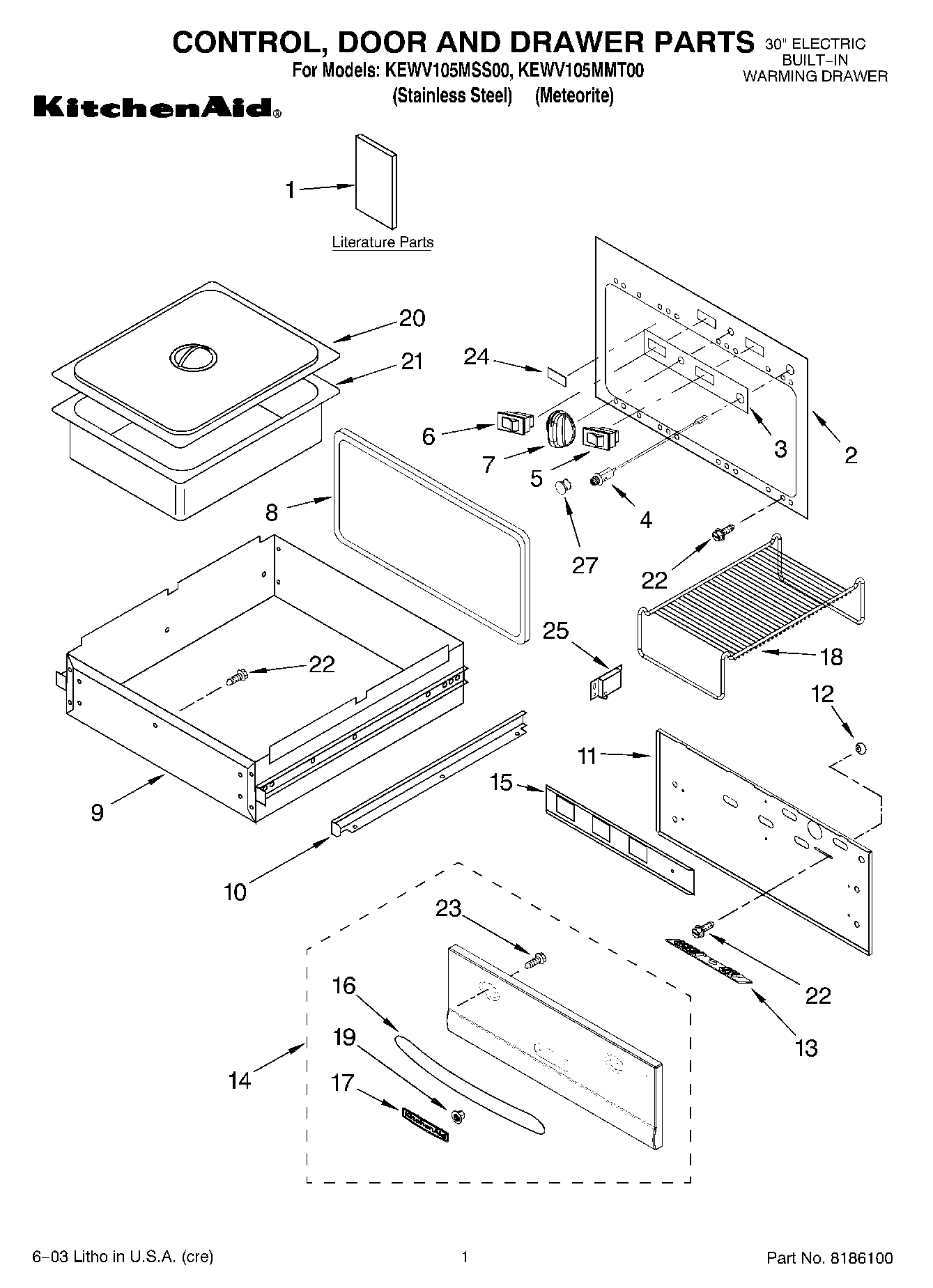

KEWV105MSS00 01 – CONTROL, DOOR AND DRAWER PARTS

Products

PositionProduct
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide)
2Panel, Control
3Escutchen, Control Panel
4Light, Indicator
5Switch, Rocker SPST Illuminated
6WP4452842 Whirlpool Light Switch
7W10854530 Whirlpool Knob Assembly
8Gasket, Drawer
9Drawer Assembly
10Adapter (Pan Support Bracket)
11Liner, Drawer
12Knob, Ball
13Label, Moist/Dry
14Door, Front Assy (Stainless Steel)
14Door, Front Assy (Meteorite)
15Vent, Slide
16Handle, Door (Stainless Steel)
17Name Plate
18Rack, Warming
19Palnut
20Cover, Pan (Small (1/3))
20Cover, Pan (Large, (Half))
21Pan, Warming (Small (1/3))
21Pan, Warming (Large (Half))
22WP3400805 Whirlpool Screw Assembly
23WP3196154 Whirlpool Screw Assembly
24Insulation
25Catch, Door
274456314 Whirlpool Lens Light
