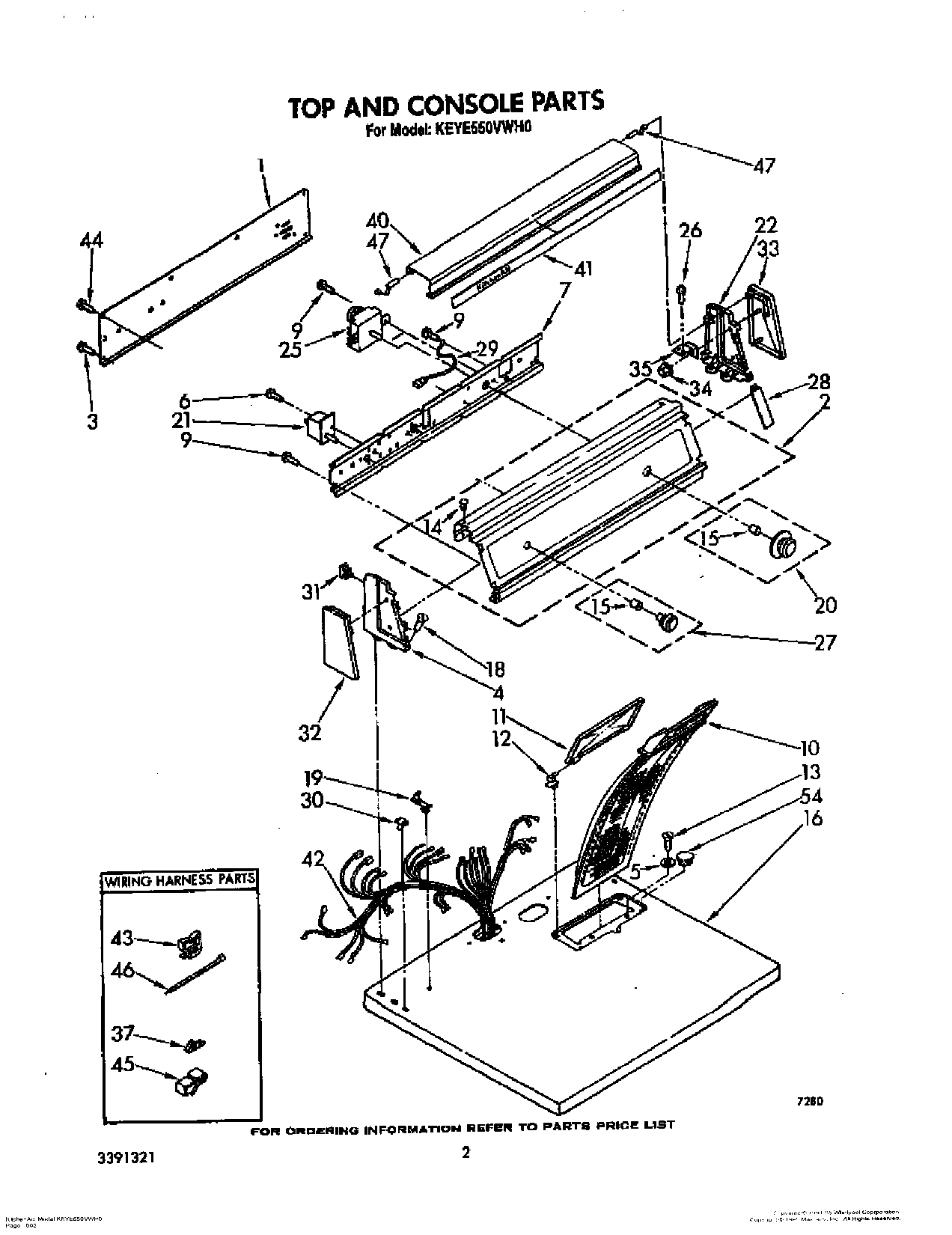

KEYE550VHT0 02 – TOP AND CONSOLE

KEYE550VHT0 02 – TOP AND CONSOLE

Written by

in

KEYE550VHT0 02 – TOP AND CONSOLE

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3387332
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL ARI87054A1
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Label, Operating Instructions
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Instructions, Installation
	WPL LIT3391025
	Guide, Dryer
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3391321
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	End Cap (L.H.)
5	Washer
6	WP90767 Whirlpool Screw
7	Bracket, Control
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Golden Harvest)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Plug, Latch (3)
15	WP688805 Whirlpool Spring Clip
16	Top (Platinum)
16	Top (Almond)
16	Top (White)
16	Top (Toast)
16	Top (Harvest Wheat)
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Switch, Push-To-Start
22	Cap, End (R.H.)
25	Timer, 60Hz.
26	WPL 310629
27	Knob, Push To Start
28	Spacer, Console (2)
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, End Cap (L.H.)
33	Trim, End Cap (R.H.)
34	Nut, No.10 Thread
35	Bracket, End Cap (2)
37	Terminal
40	Cover, Light (Includes Illus. No.41)
41	Insert, Lamp Cover
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
47	Hinge, Lamp Cover
54	Plug, Hole
