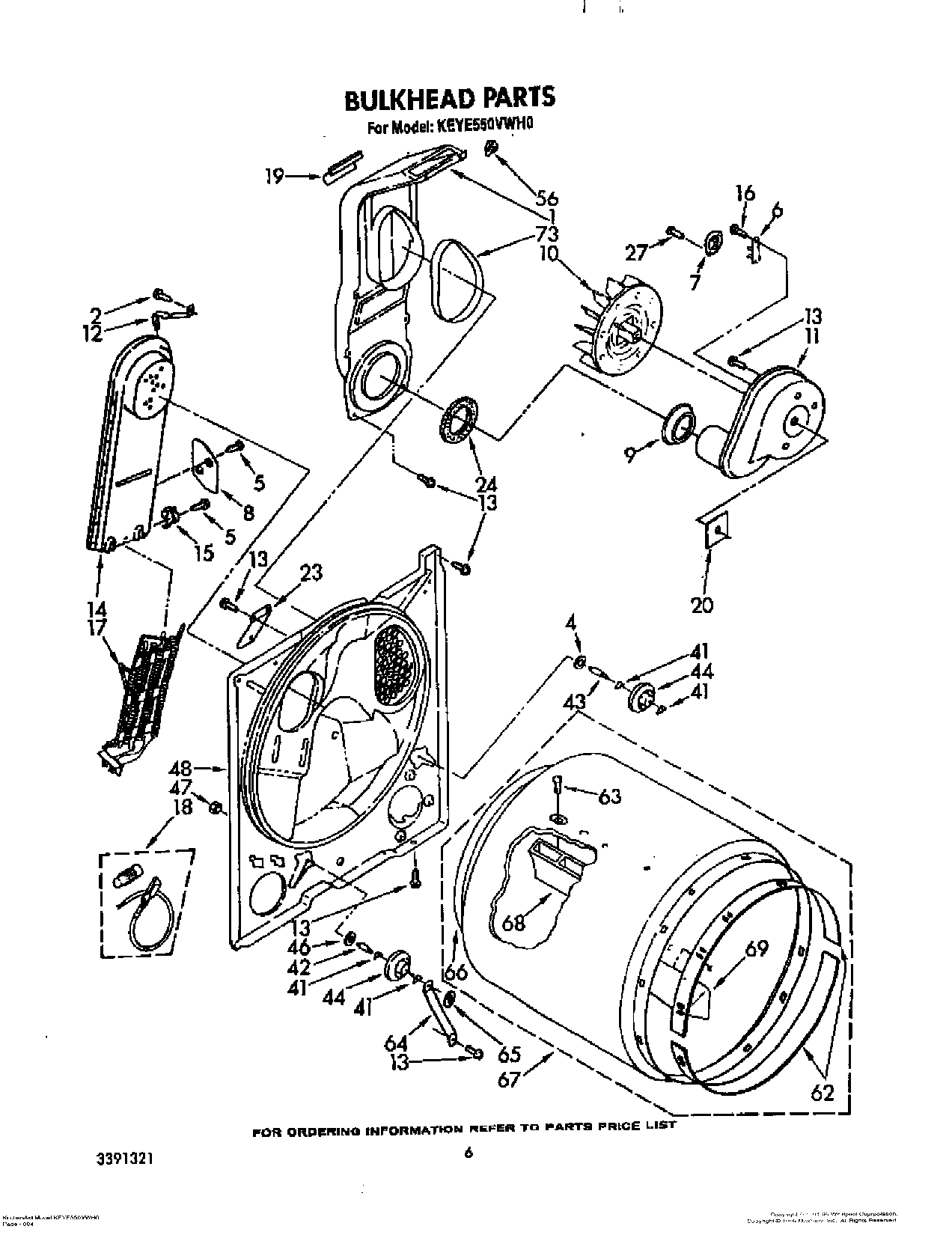

KEYE550VHT0 04 – BULKHEAD

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
4	WP3388703 Whirlpool Washer
5	WP90767 Whirlpool Screw
6	WP3392519 Whirlpool Dryer Thermal Fuse
7	WP694674 Whirlpool Cycling Thermostat
8	279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9	W11233063 Whirlpool Shield Assembly
10	WP694089 Whirlpool Dryer Blower Wheel
11	Housing, Blower
12	279771 Whirlpool Clip
13	SCREW
14	Box, Heater
15	279080 Whirlpool Thermostat
16	WP965173 Whirlpool Dishwasher Screw
17	WP697663 Whirlpool Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	686770 Whirlpool Support Bracket
20	Seal, Blower
23	Shield, Light
24	W11415783 Whirlpool Seal
27	WP488729 Whirlpool Refrigerator Door Screw
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	WPW10314173 Whirlpool Dryer Drum Support Wheel
46	WP348197 Whirlpool Washer Assembly
47	WP358160 Whirlpool Nut
48	W11178667 Whirlpool Bulkhead Assembly
56	98460 Whirlpool Nut
62	279441 Whirlpool Front Bearing Ring
63	Screw, 11-16 x 7/8
64	W11684613 Whirlpool Bracket
65	WP90296 Whirlpool Clip
66	279408 Whirlpool Dryer Rear Drum Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	WP3403636 Whirlpool Drum Baffle
73	SEAL
