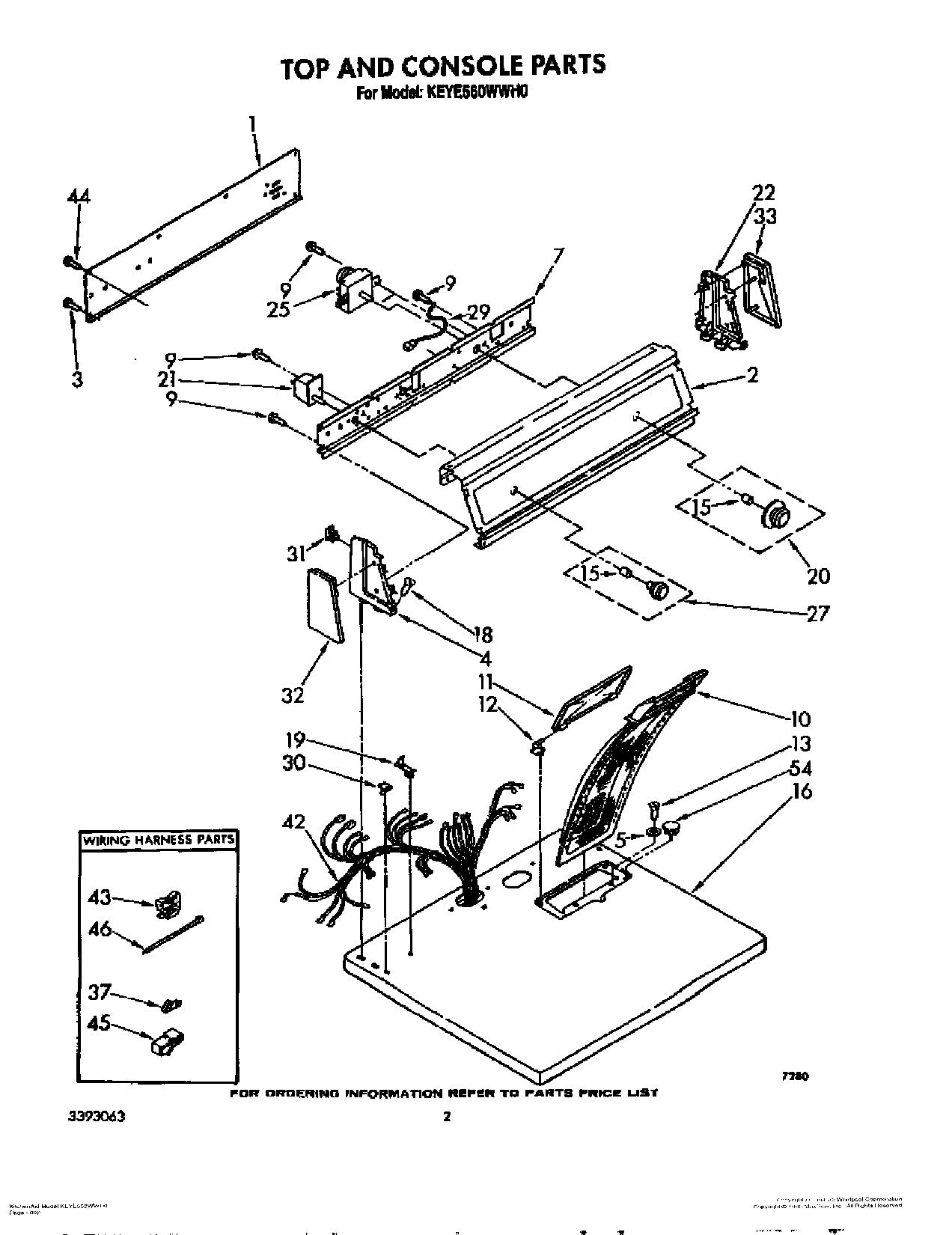

KEYE560WWH0 02 – TOP AND CONSOLE

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	WPL 72112
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Platinum (Uncut)
	Enamal, Toast (1 Qt. Uncut)
	72113 Whirlpool Touch-Up Paint
	Paint, Spray (13 Oz.) (Platinum)
	Golden Harvest
	Toast
	Instructions, Installation
	Label, Operating Instructions
	WPL LIT3391025
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WPL LIT3393063
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3392976
	Golden Harvest (Uncut)
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
5	Washer
7	Bracket, Control
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Toast)
11	Cover, Lint Screen (Platinum)
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (Golden Harvest)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (Platinum)
16	Top (Almond)
16	Top (White)
16	Top (Harvest Wheat)
16	Top (Toast)
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Switch, Push-To-Start
22	Cap, End (R.H.)
25	Timer, 60Hz.
27	Knob, Push To Start
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
33	Trim, Endcap (L.H.)
37	Terminal
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
54	Plug, Hole
