KEYE650VAL0 02 – SECTION

KEYE650VAL0 02 – SECTION

Written by

in

KEYE650VAL0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	72113 Whirlpool Touch-Up Paint
	WPL LIT3387333
	Golden Harvest
	Golden Harvest (Uncut)
	WPL LIT3391023
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Label, Operating Instructions
	Guide, Dryer
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Instructions, Installation
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3391309

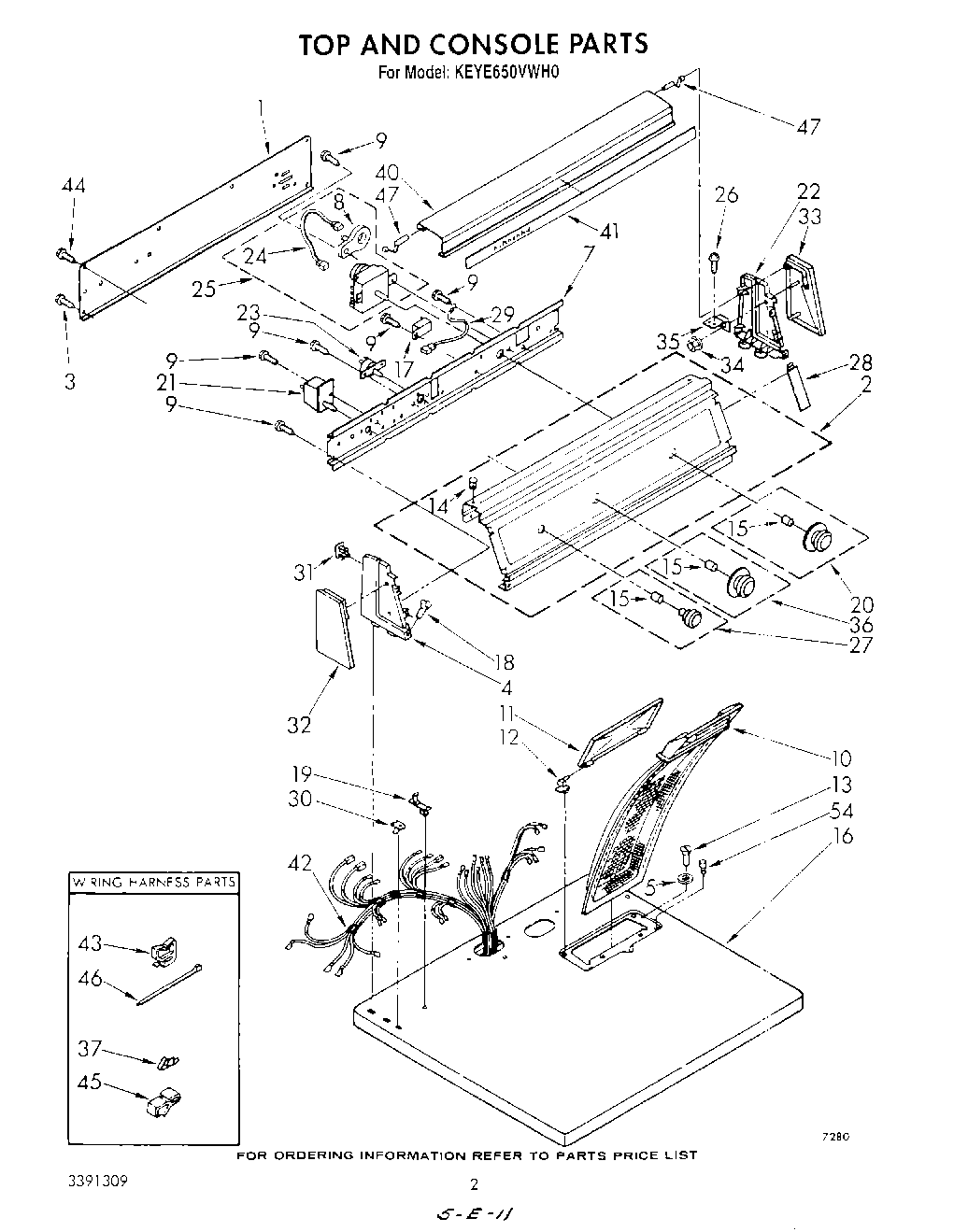

1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	End Cap (L.H.)
5	Washer
7	Bracket, Control
8	279872 Whirlpool Resistor
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Plug, Latch (3)
15	WP688805 Whirlpool Spring Clip
16	Top (Platinum)
16	Top (Toast)
16	Top (Harvest Wheat)
16	Top (Almond)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature 3-Position
24	Wire, Jumper
25	Timer & Resistor 60 Hz.
26	WPL 310629
27	Knob, Push To Start
28	Spacer, Console (2)
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
34	Nut, No.10 Thread
35	Bracket, End Cap (2)
36	Knob, Temperature Control
37	Terminal
40	Cover, Light (Includes Illus. No.41)
41	Insert, Lamp Cover
42	Harness, Wiring
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
47	Hinge, Lamp Cover
54	Bumper, Lint Lid
