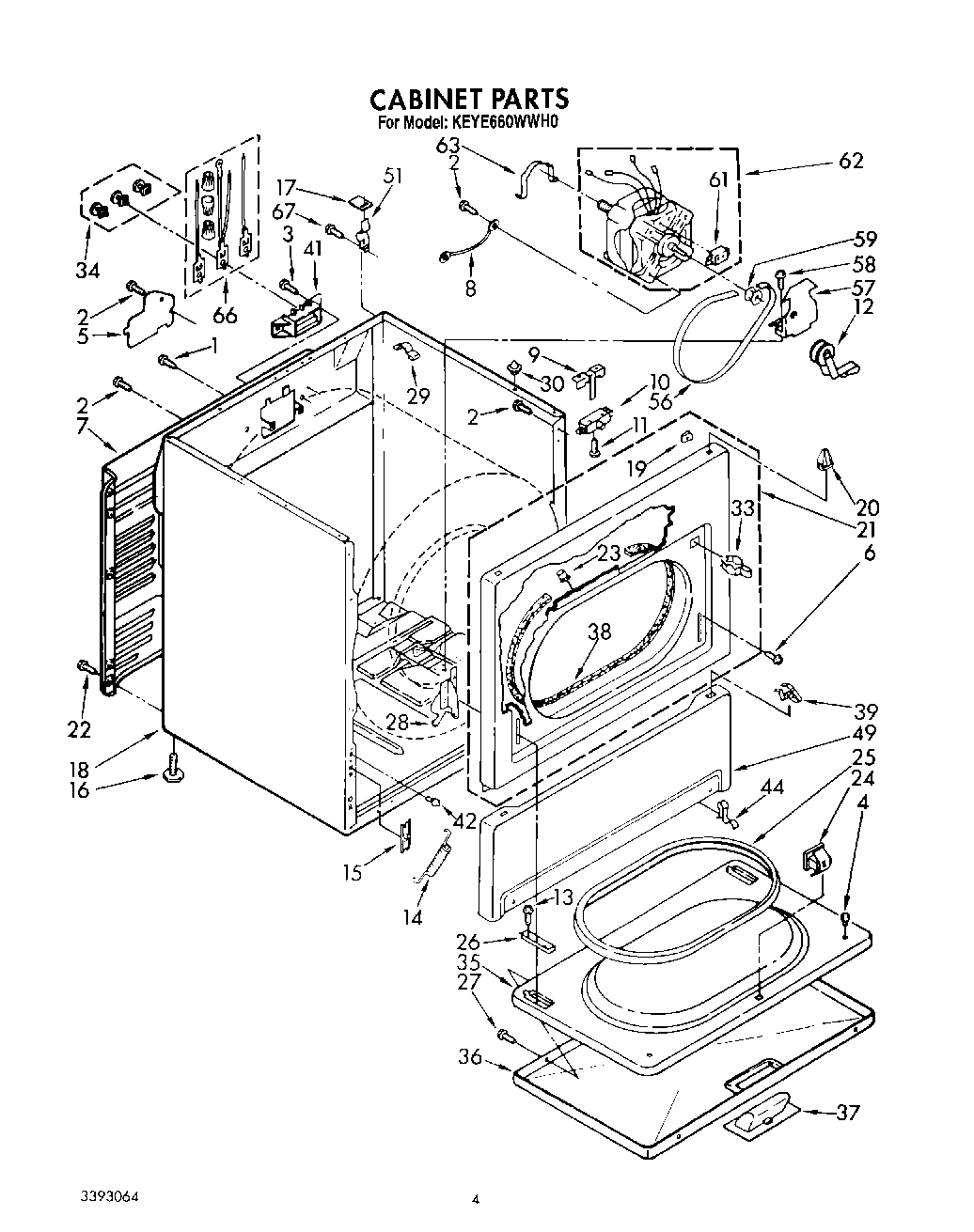

KEYE660WPL0 03 – SECTION

KEYE660WPL0 03 – SECTION

Written by

in

KEYE660WPL0 03 – SECTION

Products

Position	Product
1	W10850756 Whirlpool Screw
2	WP693995 Whirlpool Screw
3	WP308685 Whirlpool Microwave Screw
5	W11736322 Whirlpool Cover Assembly
6	Screw, 10-32 x 1/2
7	Panel, Rear
8	Wire, Ground (Motor)
9	WP691581 Whirlpool Actuator
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	WP691366 Whirlpool Dryer Idler Pulley Assembly
14	WPW10041960 Whirlpool Door Spring
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	18849 Whirlpool Pad
18	cabinet (toast)
18	Cabinet (Harvest Wheat)
18	Cabinet (Almond)
18	Cabinet (White)
18	Cabinet (Platinum)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	panel, front (harvest wheat)
21	279740 Whirlpool Panel Primary with O/S2
21	Panel Front (Almond)
21	Panel Front (Toast)
21	Panel, Front (Platinum)
22	WP489069 Whirlpool Compactor Screw
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
25	W10906683 Whirlpool Door Seal
26	W11252547 Whirlpool Clip Assembly
27	WP694091 Whirlpool Screw
28	WP8066057 Whirlpool Door Hinge
28	WP8066056 Whirlpool Door Hinge
29	8528351 Whirlpool Clip
30	Locator, Top
34	279393 Whirlpool Terminal Block Screw and Nut Kit
35	WP695737 Whirlpool Door
36	Door, Front (Toast)
36	Door, Front (Harvest Wheat)
36	Door, Front (Almond)
36	Door, Front (Platinum)
36	WP3393549 Whirlpool Door Assembly
37	handle, door (almond)
37	WP348721 Whirlpool Handle
37	Handle, Door (Toast)
37	handle, door (platinum)
37	handle, door (harvest wheat)
38	W11035878 Whirlpool Bearing and Seal
39	WP3388229 Whirlpool Dryer Spring Clip
41	279320 Whirlpool Dryer Rear Terminal Block Kit
42	238614 Whirlpool Bumper Hinge
44	WP297092 Whirlpool Clip
49	Panel, Toe (Almond)
49	Panel, Toe (White)
49	WPL 697097
49	WPL 697098
49	WPL 697099
51	WP8066217 Whirlpool Hinge
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
61	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
66	279318 Whirlpool Terminal
67	SCREW
