KEYE665BWH3 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Label, Operating Instructions
	Guide, Dryer
	Label, Wiring Diagram
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	Use & Care Guide
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly

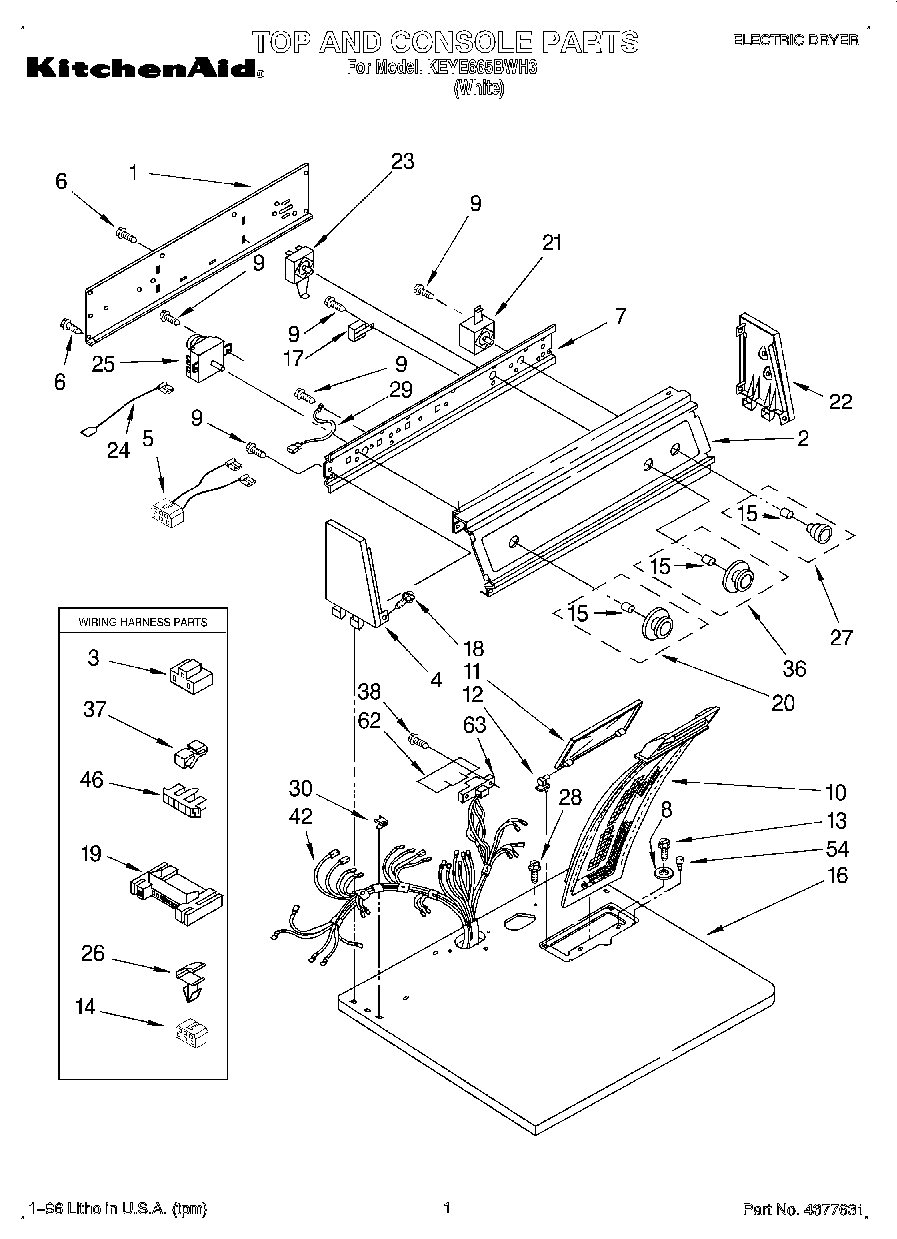

1	Panel, Rear Console
2	Panel, Control
3	3401144 Whirlpool Connector
4	Cap, End (L.H.)
5	8539893 Whirlpool Wire Harness
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Block, Disconnect
15	WP688805 Whirlpool Spring Clip
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	3395683 Whirlpool Connector
20	Knob, Timer
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
23	WP3399639 Whirlpool Switch
24	Wire, Jumper (Tan)
25	Timer, 60Hz.
26	WP3394427 Whirlpool Clip
27	Knob, Push To Start
28	Screw, No. 10
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
36	Knob (Control)
37	Clip, Retainer
38	WP90767 Whirlpool Screw
42	Harness, Electric
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
