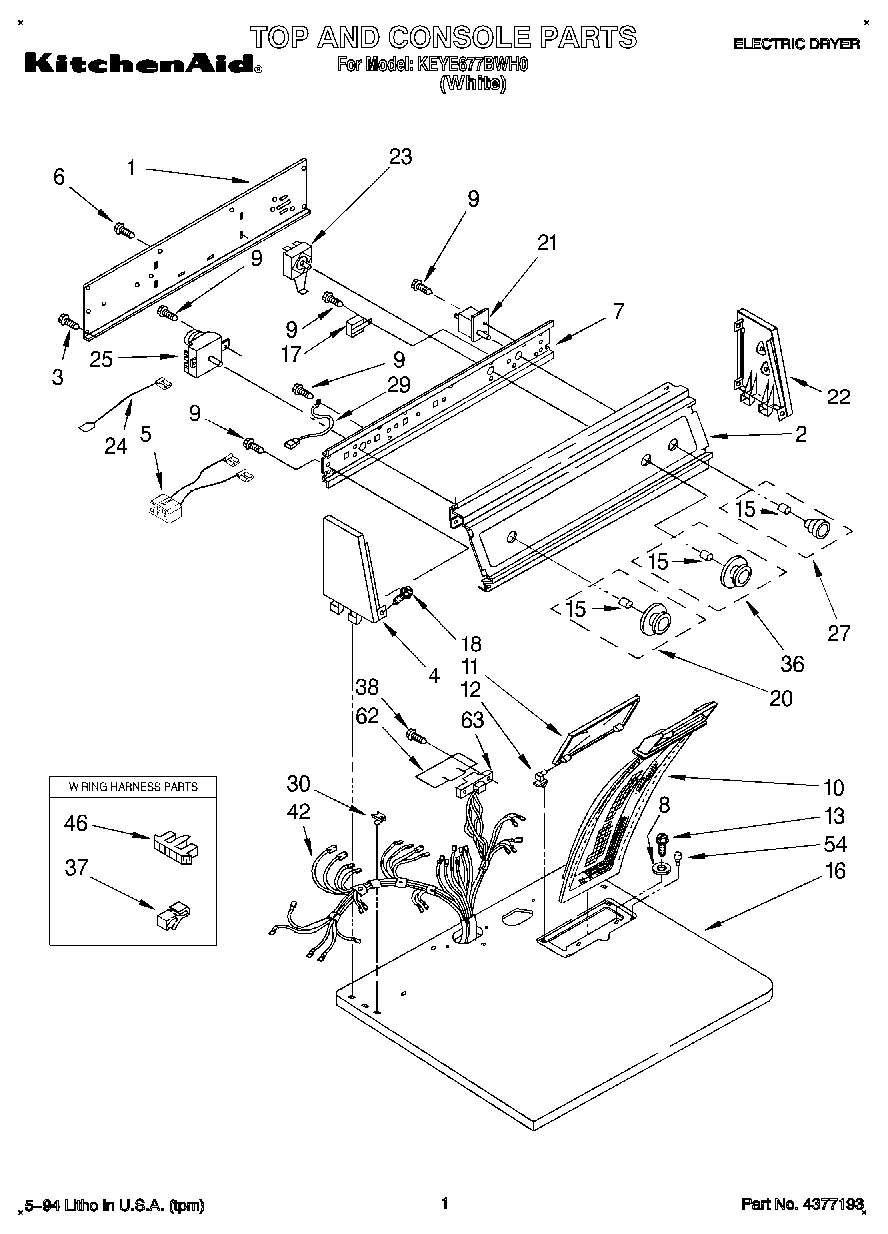

KEYE677BWH0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	Instructions, Installation
	Label, Operating Instructions
	Guide, Use & Care
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	Label, Wiring Diagram
1	Panel, Rear Console
2	Panel, Control
3	WP489069 Whirlpool Compactor Screw
4	Cap, End (L.H.)
5	8539893 Whirlpool Wire Harness
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP388326 Whirlpool Screw
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	WP3399639 Whirlpool Switch
24	Wire, Jumper
25	Timer, 60Hz.
27	Knob, Push-To-Start
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
36	Knob, Control
37	Clip, Retainer
38	WP90767 Whirlpool Screw
42	Harness, Electric
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
