KEYE700TWH0 02 – SECTION

Products

Position	Product
	WPL LIT3390029
	Golden Harvest
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Guide, Dryer
	Instructions, Installation
	Label, Operating Instructions
	WPL LIT3387421
	WPL LIT3387291
	WPL LIT3387325
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	Almond (Uncut)
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	72017 Whirlpool Appliance Touch-Up Paint White
	72113 Whirlpool Touch-Up Paint
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	350930 Whirlpool White Spray Paint

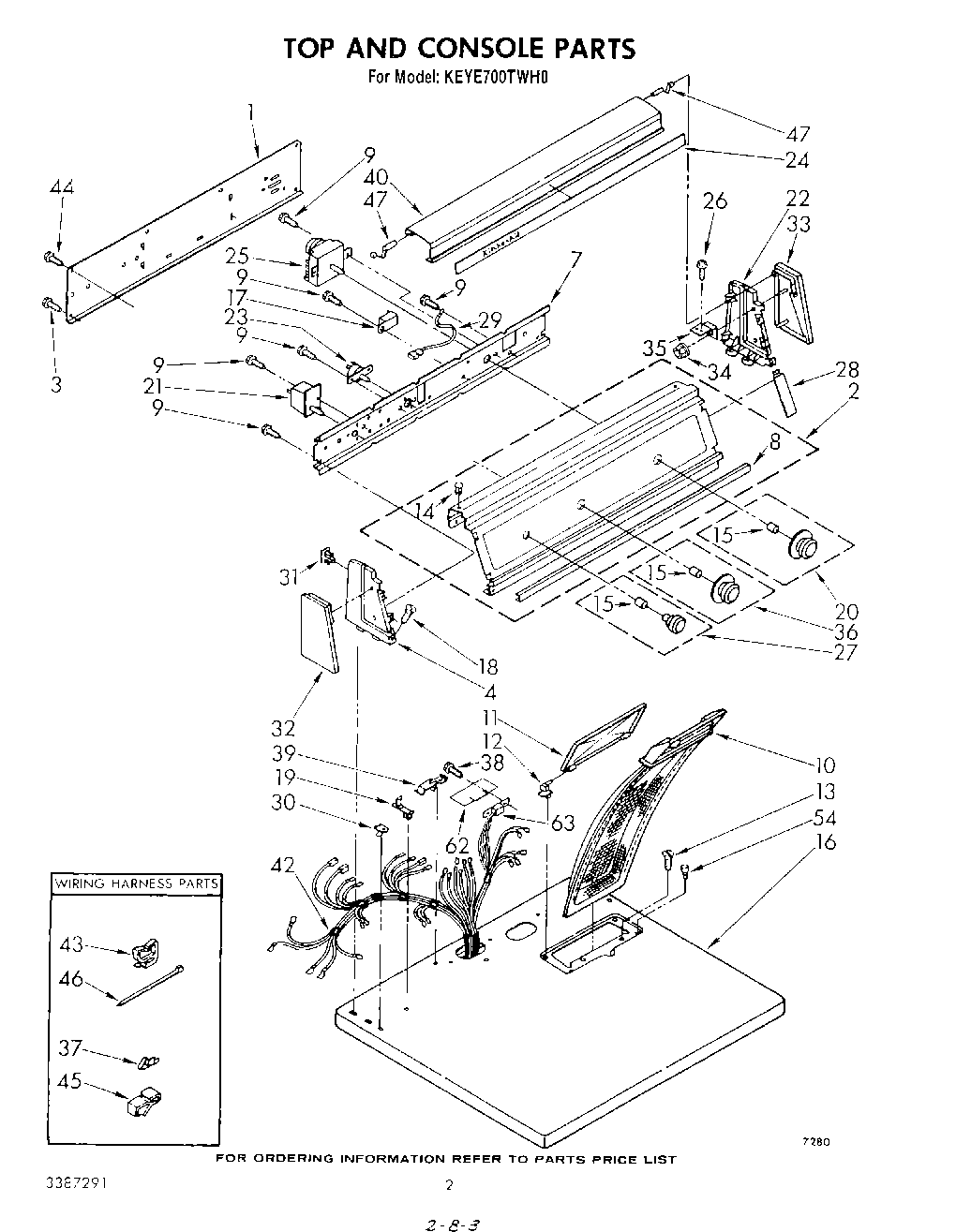

1	Panel, Rear
2	Panel, Control
3	WP693995 Whirlpool Screw
4	End Cap (L.H.)
6	SCREW
7	Bracket, Control
8	Trim, Console
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Plug, Latch (3)
15	WP688805 Whirlpool Spring Clip
16	Top (Almond)
16	Top (Harvest Wheat)
16	Top (Platinum)
16	Top (Toast)
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature Selector
24	Insert, Lamp Cover
25	Timer, 60Hz.
26	WPL 310629
27	Knob, Push To Start
28	Spacer, Console (2)
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, End Cap (L.H.)
33	Trim, End Cap (R.H.)
34	Nut, No.10 Thread
35	Bracket, End Cap (2)
36	Knob, Push To Start
37	Terminal
38	WP90767 Whirlpool Screw
39	Clip, Wire (Tech Sheet/Top)
40	Cover, Light (Includes No.24)
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
47	Hinge, Lamp Cover
54	Bumper, Lint Lid
62	Control, Electronic
63	Connector
