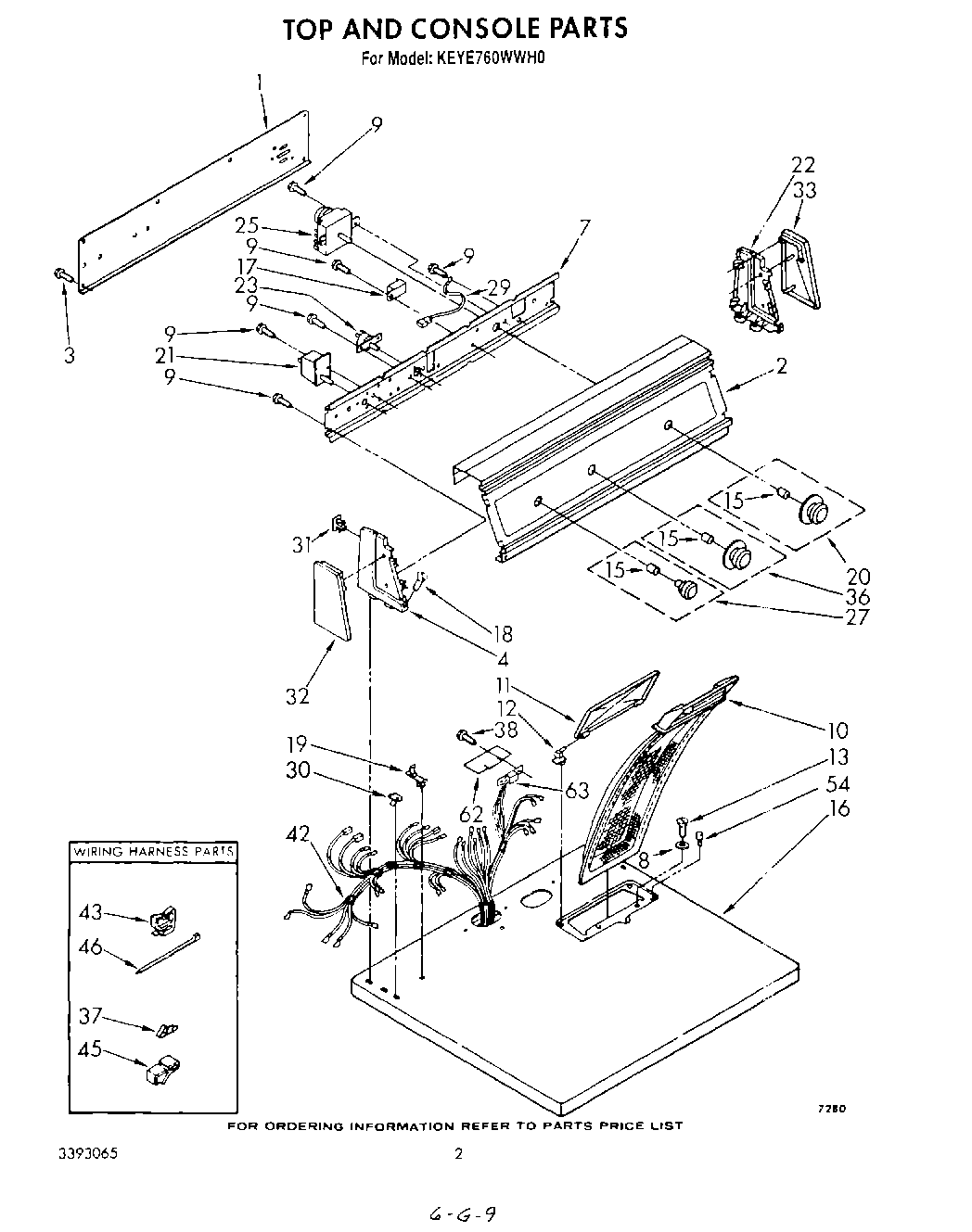

KEYE760WHT0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Dryer
	72113 Whirlpool Touch-Up Paint
	Golden Harvest
	Use & Care Guide
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Enamal, Toast (1 Qt. Uncut)
	Platinum (Uncut)
	WPL 72112
	Label, Operating Instructions
	Instructions, Installation
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL LIT3391021
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3393065
1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	Cap, End (L.H.)
7	Bracket, Control
8	Washer
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
15	WP688805 Whirlpool Spring Clip
16	Top (Toast)
16	Top (Platinum)
16	Top (White)
16	Top (Almond)
16	Top (Harvest Wheat)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature Selector
25	Timer, 60Hz.
27	Knob, Push To Start
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
36	Knob, Temperature Control
37	Terminal
38	WP90767 Whirlpool Screw
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
54	Bumper, Lint Lid
62	Control, Electronic
63	Connector
