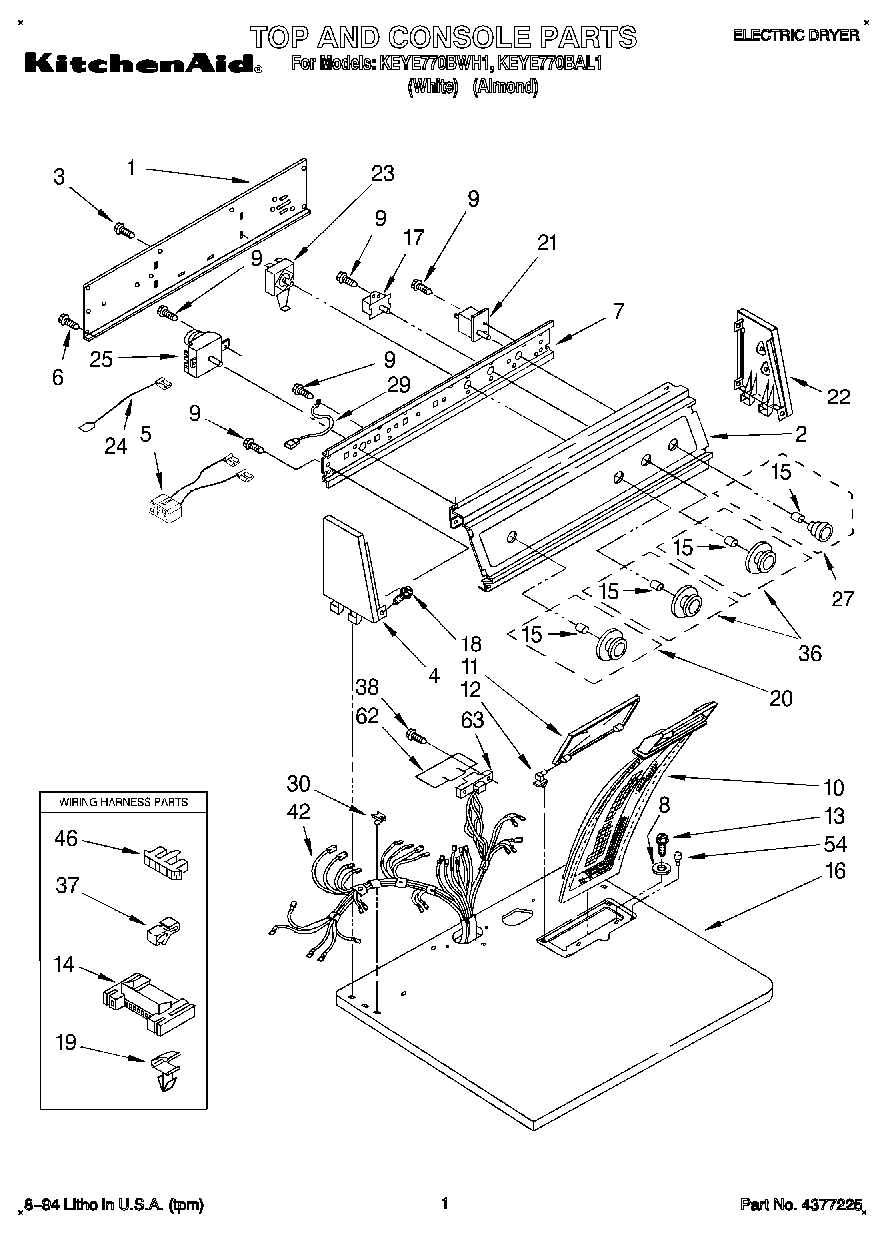

| 1 | Panel, Rear Console |
| 2 | Panel, Control |
| 3 | WP693995 Whirlpool Screw |
| 4 | Cap, End (L.H.) |
| 5 | Wire-Jumper Assembly |
| 6 | WP489069 Whirlpool Compactor Screw |
| 7 | Bracket, Control |
| 8 | Washer |
| 9 | WPW10139210 Whirlpool Screw |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Cover, Lint Screen (White) |
| 11 | Cover, Lint Screen (Almond) |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | 3395683 Whirlpool Connector |
| 15 | WP688805 Whirlpool Spring Clip |
| 16 | Top (Almond) |
| 16 | Top (White) |
| 17 | Buzzer, Adjustable |
| 18 | WPL 64211 |
| 19 | WP3394427 Whirlpool Clip |
| 20 | Knob, Timer |
| 21 | Relay, Push-To-Start |
| 22 | Cap, End (R.H.) |
| 23 | WP3399640 Whirlpool Switch |
| 24 | Wire, Jumper |
| 25 | Timer, 60Hz. |
| 27 | Knob, Push To Start |
| 29 | Wire, Ground |
| 30 | WP357213 Whirlpool Hinge Stopper |
| 36 | Knob (Control) |
| 37 | Clip, Retainer |
| 38 | WP90767 Whirlpool Screw |
| 42 | Harness, Electric |
| 46 | Connector, Timer |
| 54 | Bumper, Lint Lid |
| 62 | WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core |
| 63 | 3391885 Whirlpool Connector |
