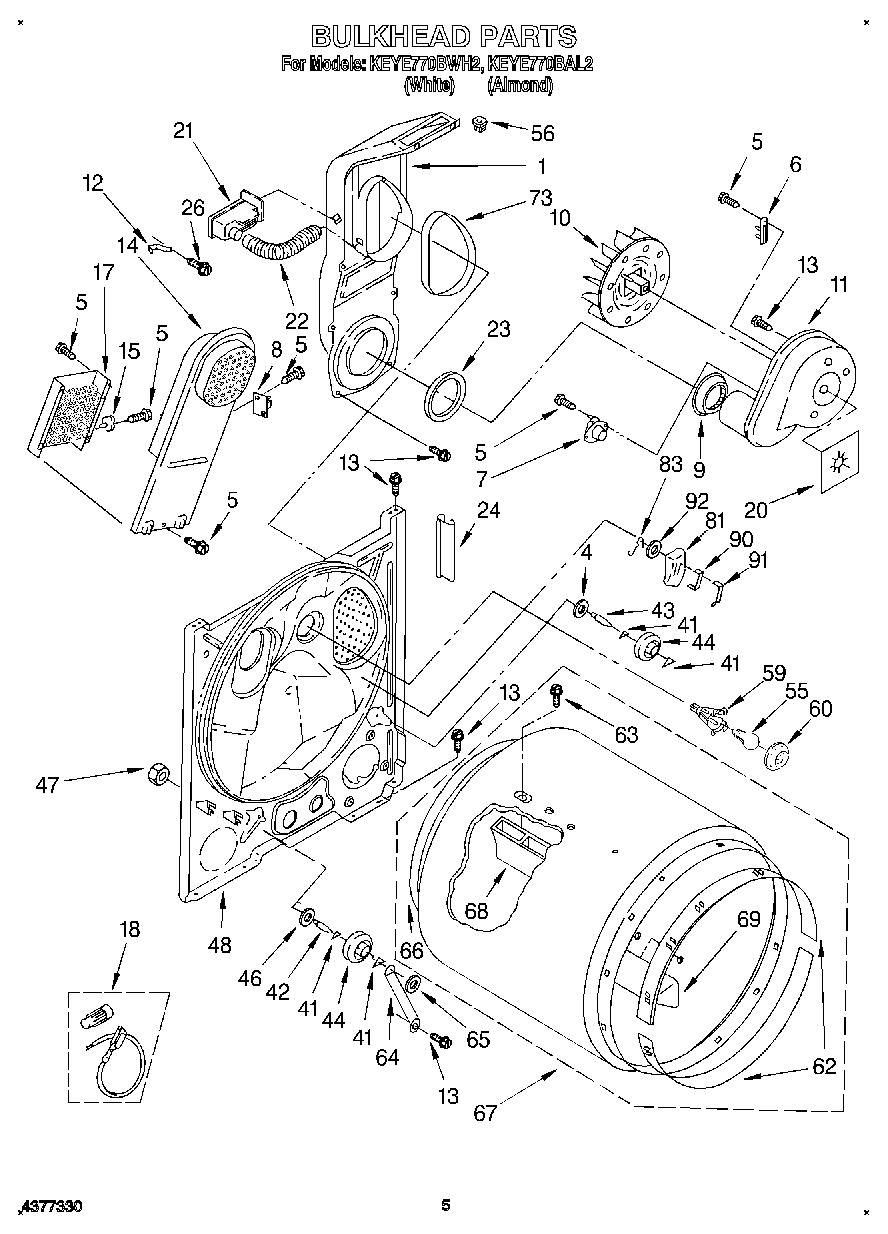

KEYE770BAL2 03 – SECTION

KEYE770BAL2 03 – SECTION

Written by

in

KEYE770BAL2 03 – SECTION

Products

PositionProduct
1Lint Chute Assembly
4WP3388703 Whirlpool Washer
5WP90767 Whirlpool Screw
6WP3392519 Whirlpool Dryer Thermal Fuse
7WP3387134 Whirlpool Dryer Cycling Thermostat
8279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
9W11233063 Whirlpool Shield Assembly
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
13SCREW
14WP8541818 Whirlpool Box
15WP3390291 Whirlpool High Limit Thermostat
17279838 Whirlpool Dryer Heating Element 5400W
18279457 Whirlpool Dryer Heating Element Wide Spade Connection
20Seal, Blower
21Alert, Lint
22Hose, Differential
23W11415783 Whirlpool Seal
24686889 Whirlpool Pad
25WP489069 Whirlpool Compactor Screw
26WP489463 Whirlpool Refrigerator Screw
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
55RANGE ONLY 40W 120V APPL BULB
5698460 Whirlpool Nut
59Socket Assembly
60Lens, Drum Light
62279441 Whirlpool Front Bearing Ring
63WPW10109200 Whirlpool Screw
64W11684613 Whirlpool Bracket
65WP90296 Whirlpool Clip
66279408 Whirlpool Dryer Rear Drum Seal
67W10899578 Whirlpool Dryer Drum Assembly
68BAFFLE-DRM
69WP3403636 Whirlpool Drum Baffle
73SEAL
81SENSOR KIT
83WP342267 Whirlpool Clip
90WP348859 Whirlpool Electrode Assembly
91WP348860 Whirlpool Electrode
92WP298877 Whirlpool Washer
