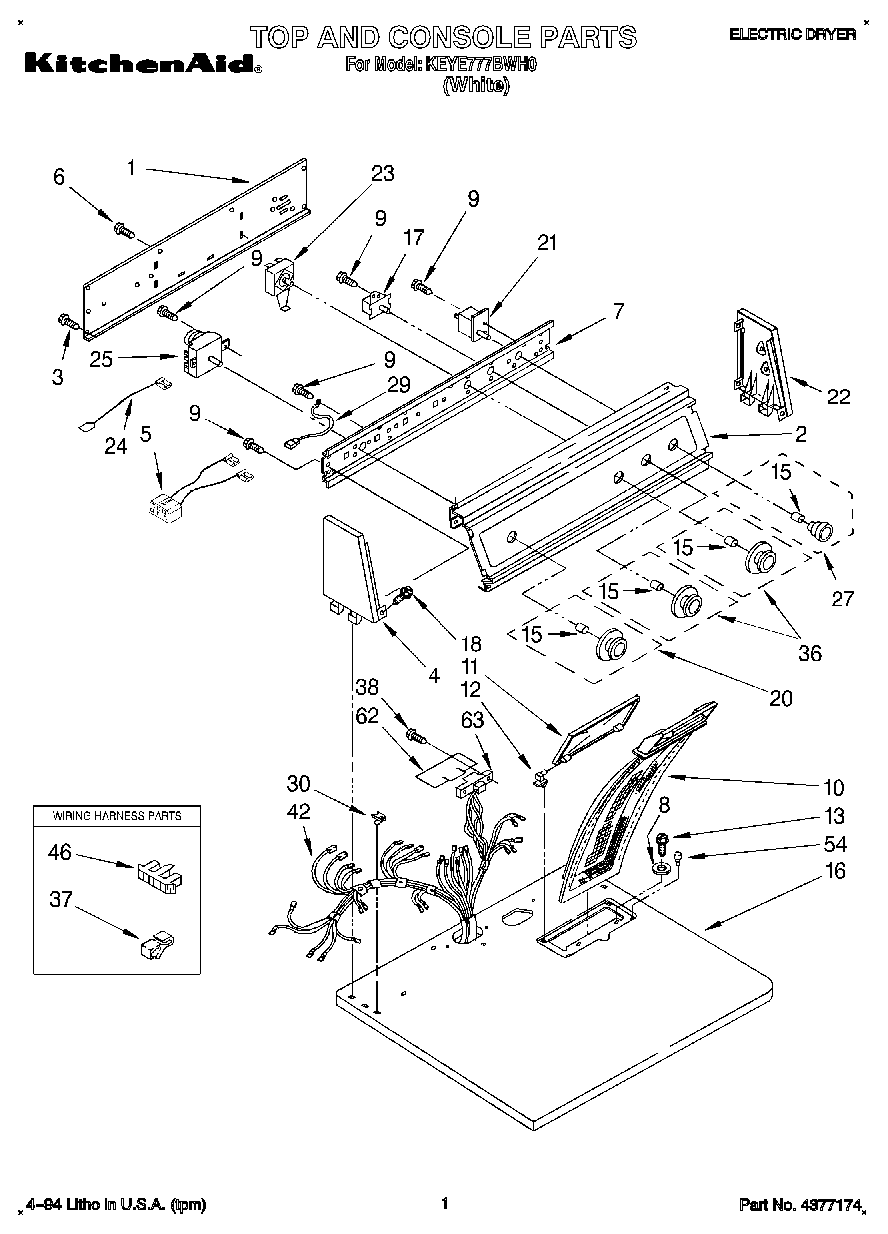

KEYE777BWH0 01 – SECTION

KEYE777BWH0 01 – SECTION

Written by

in

KEYE777BWH0 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
Label, Operating Instructions
Label, Wiring Diagram
Guide, Dryer
Instructions, Installation
Leveler (Thinner)
799344 Whirlpool Refrigerator Paint
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
350938 Whirlpool Spray Gun
1Panel, Rear Console
2Panel, Control
3WP489069 Whirlpool Compactor Screw
4Cap, End (L.H.)
5Wire-Jumper Assembly
6WP693995 Whirlpool Screw
7Bracket, Control
8Washer
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
15WP688805 Whirlpool Spring Clip
16Top (White)
17Buzzer, Adjustable
18WP388326 Whirlpool Screw
20Knob, Timer
21Relay, Push-To-Start
22Cap, End (R.H.)
23WP3399640 Whirlpool Switch
24Wire, Jumper
25Timer, 60Hz.
27Knob, Push-To-Start
29Wire, Ground
30WP357213 Whirlpool Hinge Stopper
36Knob, Control
37Clip, Retainer
38WP90767 Whirlpool Screw
42Harness, Electric
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
