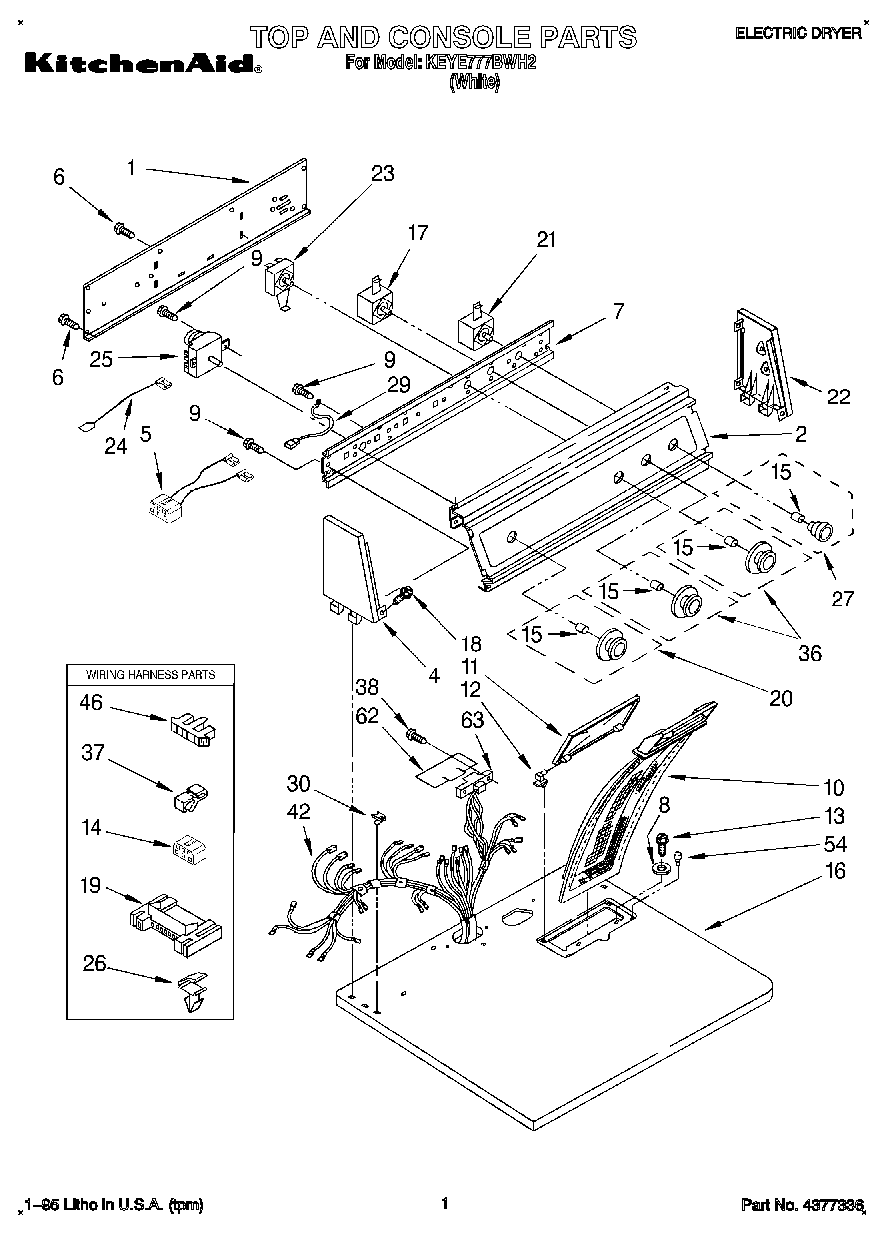

KEYE777BWH2 01 – SECTION

KEYE777BWH2 01 – SECTION

Written by

in

KEYE777BWH2 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
350938 Whirlpool Spray Gun
Guide, Use & Care
72017 Whirlpool Appliance Touch-Up Paint White
Label, Wiring Diagram
799344 Whirlpool Refrigerator Paint
Label, Operating Instructions
Instructions, Installation
Guide, Dryer
1Panel, Rear Console
2Panel, Control
4Cap, End (L.H.)
5Wire-Jumper Assembly
6WP693995 Whirlpool Screw
7Bracket, Control
8Washer
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14Block, Disconnect
15WP688805 Whirlpool Spring Clip
16Top (White)
17WP3398093 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer
21WP3398094 Whirlpool Push To Start Switch
22Cap, End (R.H.)
23WP3399640 Whirlpool Switch
24Wire, Jumper
25Timer, 60Hz.
26WP3394427 Whirlpool Clip
27Knob, Push-To-Start
29Wire, Ground
30WP357213 Whirlpool Hinge Stopper
36Knob, Control
37Clip, Retainer
38WP90767 Whirlpool Screw
42Harness, Electric
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
