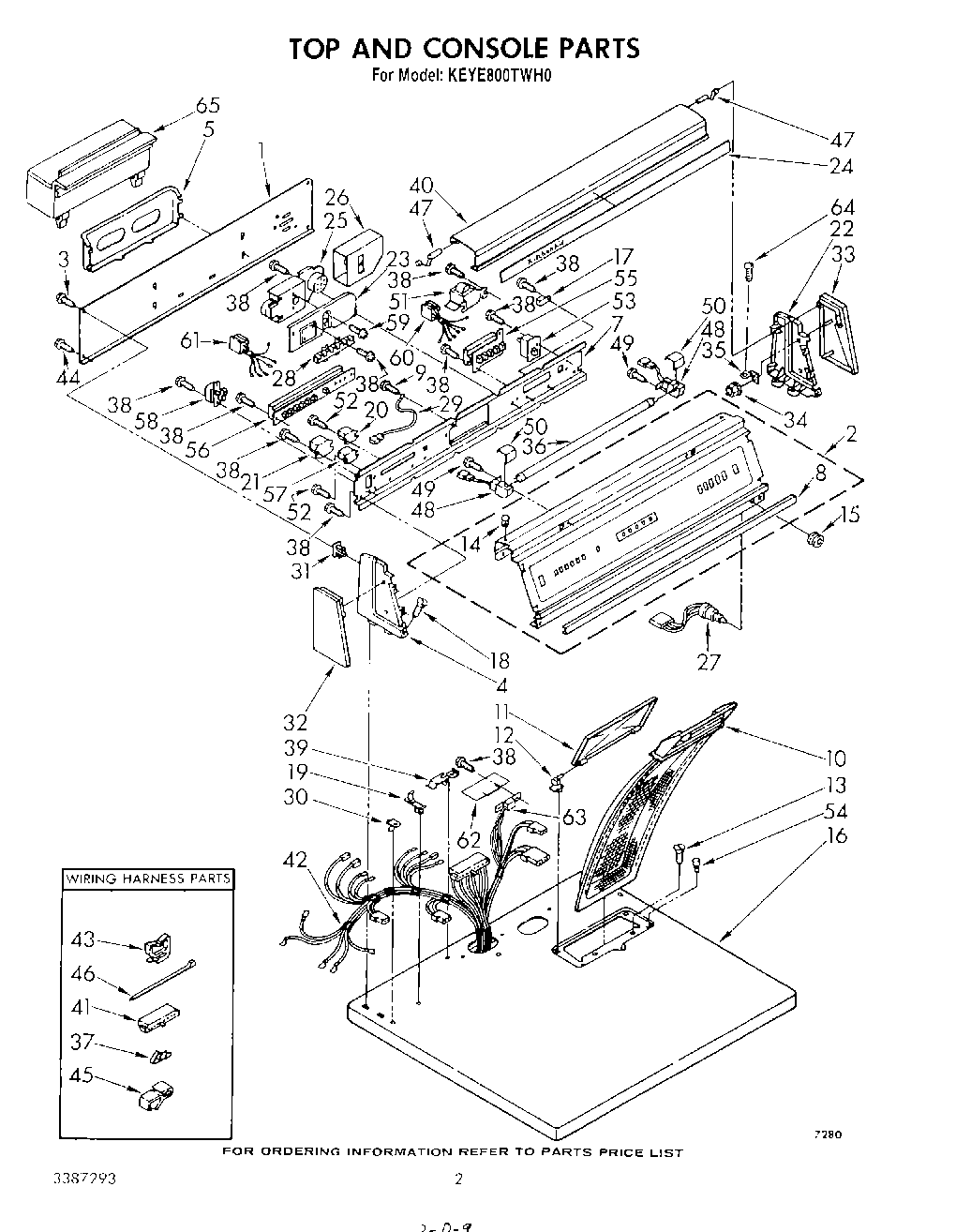

KEYE800TWH0 02 – SECTION
Written by
in
KEYE800TWH0 02 – SECTION
Products
Position
Product
WPL LIT3387421
Golden Harvest
WPL LIT3388258
Golden Harvest (Uncut)
WPL LIT3387329
Toast
Paint, Spray (13 Oz.) (Platinum)
Enamal, Toast (1 Qt. Uncut)
Platinum (Uncut)
WPL LIT3387293
WPL 72112
Guide, Dryer
Label, Operating Instructions
WPL LIT3389701
72113 Whirlpool Touch-Up Paint
WP72107 Whirlpool Touchup
Leveler (Thinner)
350930 Whirlpool White Spray Paint
799344 Whirlpool Refrigerator Paint
350938 Whirlpool Spray Gun
72017 Whirlpool Appliance Touch-Up Paint White
72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
350956 Whirlpool Spray Assembly
Almond (Uncut)
1
Panel, Rear Console
2
Panel, Control
3
WP693995 Whirlpool Screw
4
End Cap (L.H.)
5
Rack, Literature
7
Bracket, Control
8
Trim, Console
9
WP3390631 Whirlpool Screw
10
WP349639 Whirlpool Lint Filter
11
Cover, Lint Screen
12
WPW10044470 Whirlpool Hinge Assembly
12
WPW10044480 Whirlpool Hinge Assembly
13
W11693756 Whirlpool Screw Assembly
14
Plug, Latch (3)
15
Nut, Knurled
16
Top (White)
16
Top (Almond)
16
Top (Harvest Wheat)
16
Top (Platinum)
16
Top (Toast)
17
WP694419 Whirlpool Buzzer Adjuster
18
WPL 64211
19
Nut, Push-In (2)
20
697811 Whirlpool Relay
21
WP8566493 Whirlpool Relay
22
Cap, End (R.H.)
23
Bracket, Timer
24
Insert, Lamp Cover
25
Timer, 60Hz.
26
Shield, Timer Assembly
27
Switch, Fluorescent
28
Indicator Light
29
Wire, Ground
30
Stop, Push-In Top
31
WP689559 Whirlpool Nut
32
Trim, End Cap (L.H.)
33
Trim, End Cap (R.H.)
34
Nut, No.10 Thread
35
Bracket, End Cap (2)
36
Lamp, Fluorescent
37
Terminal
38
WP90767 Whirlpool Screw
39
Clip, Wire (Tech Sheet/Top)
40
Cover, Light (Includes No.24)
41
Connector
42
Harness, Electric
43
Clip, Harness (Rear Bulkhead Area)
44
WP489069 Whirlpool Compactor Screw
45
Clip, Retainer
46
WPW10339879 Whirlpool Wire Tie
47
Hinge, Lamp Cover
48
Socket, Lamp ((R.H.))
48
Socket, Lamp ((L.H.))
49
WP965173 Whirlpool Dishwasher Screw
50
Cover, Socket
51
Ballast
52
Screw Mou
53
Rela
54
Bumper, Lint Lid
55
WPL 697668
56
WPL 3387912
57
WPL 389265
58
WPL 697726
59
WP356418 Whirlpool Screw
60
WPL 697810
61
WPL 3388352
62
Control, Electronic
63
Connector
64
WPL 310629
65
WPL 3388894
←
