KEYE850VHT0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	WPL LIT3387335
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	WPL 72112
	72113 Whirlpool Touch-Up Paint
	Platinum (Uncut)
	Golden Harvest
	WPL LIT3391313
	Golden Harvest (Uncut)
	Toast
	Paint, Spray (13 Oz.) (Platinum)
	Guide, Dryer
	Instructions, Installation
	350938 Whirlpool Spray Gun
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
	799344 Whirlpool Refrigerator Paint
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	Almond (Uncut)
	WPL LIT3387421
	Label, Operating Instructions
	WPL LIT3391019
	Enamal, Toast (1 Qt. Uncut)

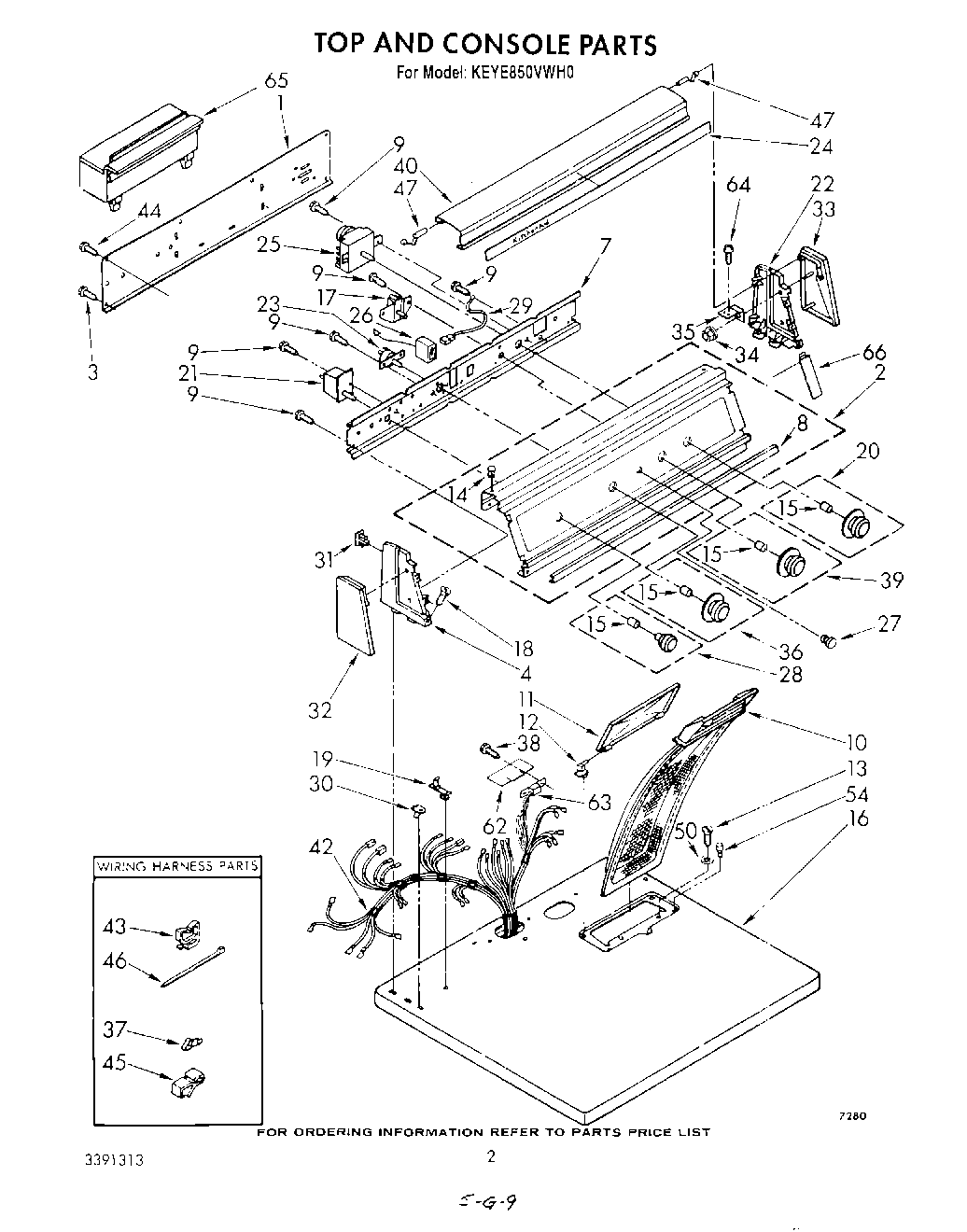

1	Panel, Rear Console
2	Panel, Control
3	WP693995 Whirlpool Screw
4	End Cap (L.H.)
7	Bracket, Control
8	Trim, Console
9	WP3390631 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Plug, Latch (3)
15	WP688805 Whirlpool Spring Clip
16	Top (White)
16	Top (Harvest Wheat)
16	Top (Platinum)
16	Top (Toast)
16	Top (Almond)
17	Buzzer, Adjustable
18	WPL 64211
19	Nut, Push-In (2)
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature (Variable)
24	Insert, Lamp Cover
25	Timer, 60Hz.
26	Lamp, Indicator
27	Lens, Light
28	Knob, Push To Start
29	Wire, Ground
30	Stop, Push-In Top
31	WP689559 Whirlpool Nut
32	Trim, Endcap (L.H.)
33	Trim, Endcap (R.H.)
34	Nut, No.10 Thread
35	Bracket, End Cap (2)
36	Knob, Temperature Control
37	Terminal
39	Knob, Adjustable Buzzer
40	Cover, Light (Includes No.24)
42	Harness, Electric
43	Clip, Harness (Rear Bulkhead Area)
44	WP489069 Whirlpool Compactor Screw
45	Clip, Retainer
46	WPW10339879 Whirlpool Wire Tie
47	Hinge, Lamp Cover
50	Washer
54	Bumper, Lint Lid
62	Control, Electronic
63	Connector
64	WPL 310629
65	WPL 3388894
66	Spacer, Console (2)
