KEYE870BWH0 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Dryer
	Label, Operating Instructions
	Label, Wiring Diagram
	WPL LIT3392989
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly

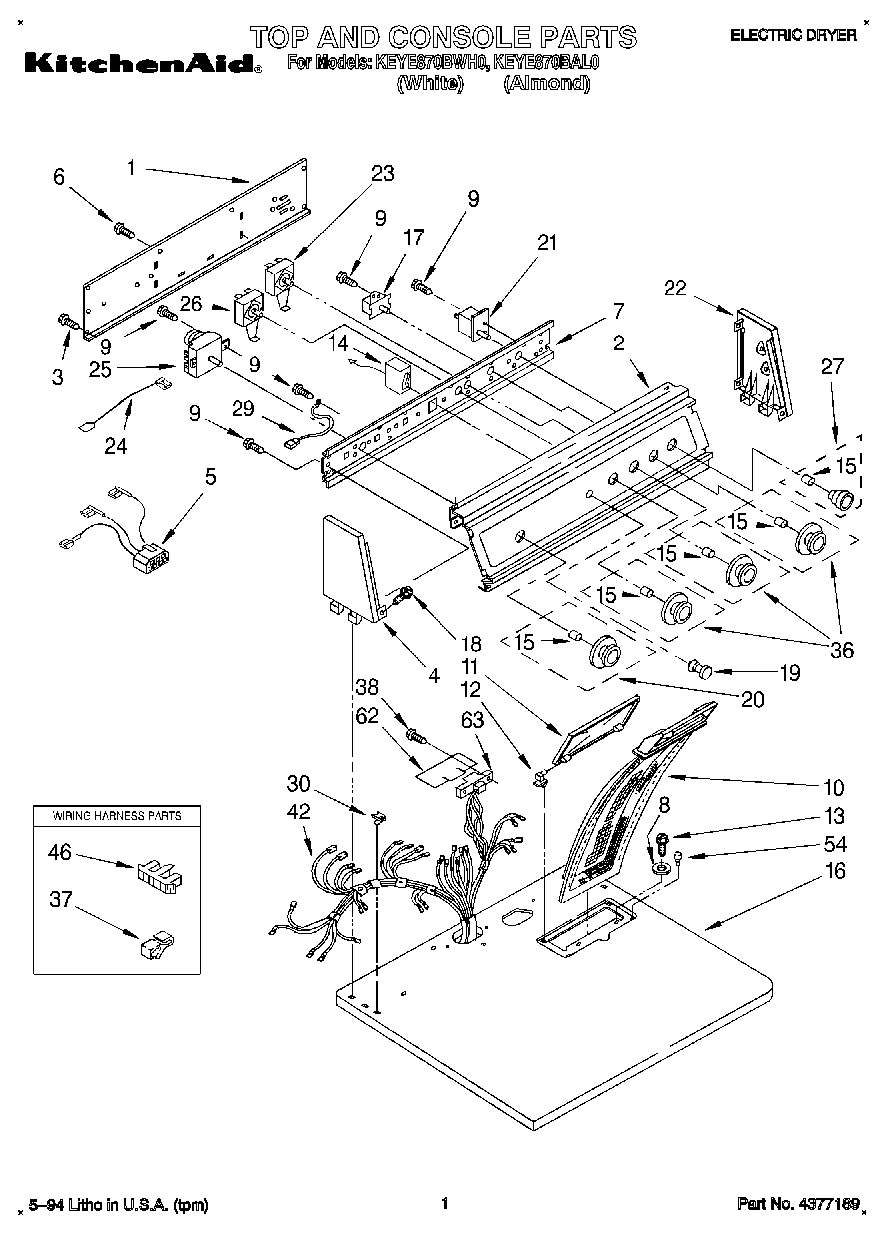

1	Panel, Rear Console
2	Panel, Control
3	WP489069 Whirlpool Compactor Screw
4	Cap, End (L.H.)
5	Wire-Jumper Assembly
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (White)
11	Cover, Lint Screen (Almond)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	Lamp, Indicator
15	WP688805 Whirlpool Spring Clip
16	Top (White)
16	Top (Almond)
17	Buzzer, Adjustable
18	WPL 64211
19	Lens, Light
20	Knob, Timer
21	Relay, Push-To-Start
22	Cap, End (R.H.)
23	Switch, Temperature (Variable)
24	Wire, Jumper (Blue)
24	Wire, Jumper (Violet)
25	Timer, 60Hz.
26	Switch, Temperature (Extra-Care)
27	Knob, Push To Start
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
36	Knob (Control)
37	Clip, Retainer
38	WP90767 Whirlpool Screw
42	Harness, Electric
46	Connector, Timer
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
