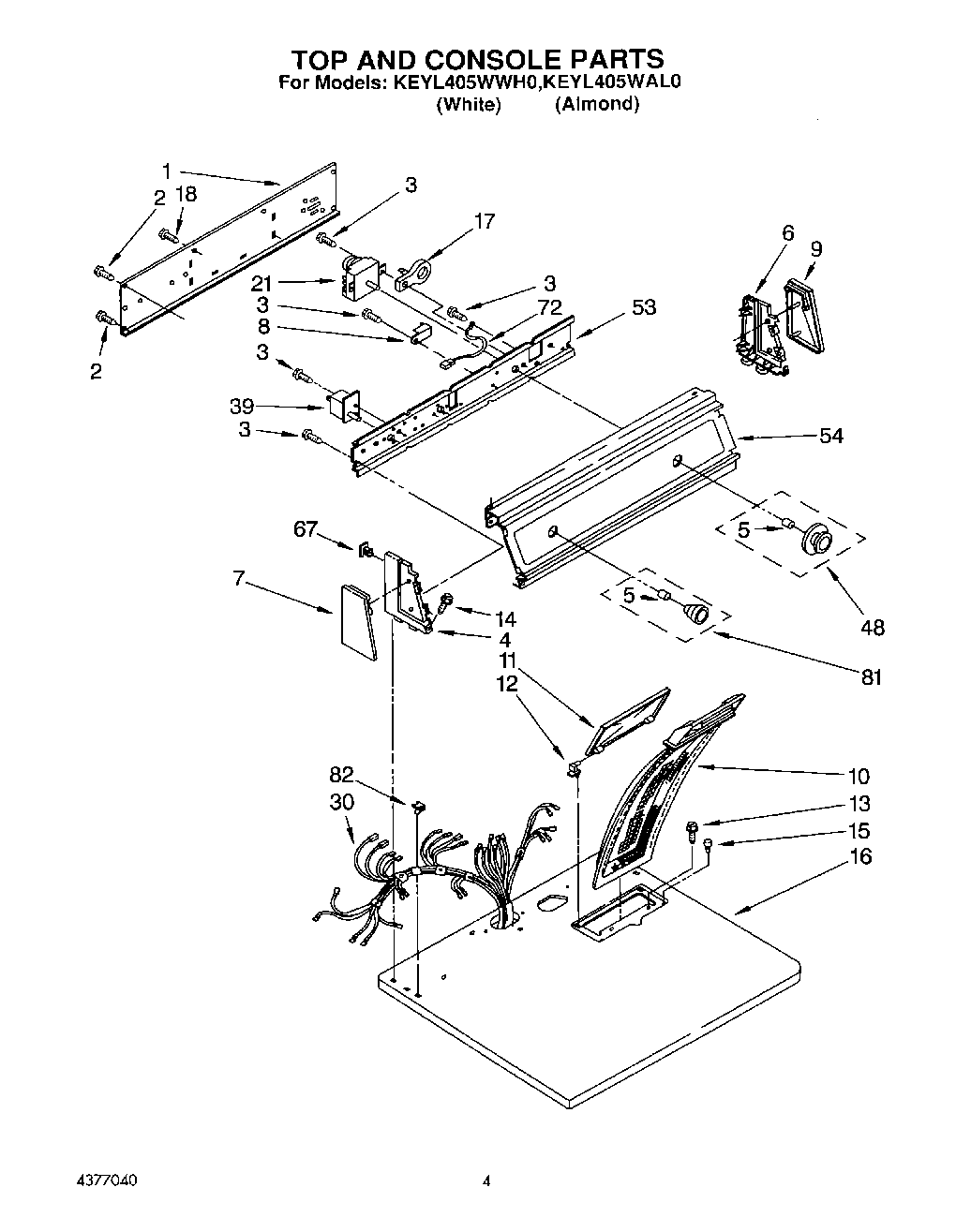

KEYL405WAL0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	List, Parts Service
	Guide, Dryer
	Almond (Uncut)
	Leveler (Thinner)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
	Guide, Use & Care
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
7	Trim, Endcap (L.H.)
8	WP694419 Whirlpool Buzzer Adjuster
9	Trim, Endcap (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WPL 64211
15	Bumper, Lint Lid
16	Top (Almond)
16	Top (White)
17	279872 Whirlpool Resistor
18	WP693995 Whirlpool Screw
21	WP3394762 Whirlpool Timer
30	Harness, Wiring
39	Relay, Push-To-Start
48	Knob, Timer
53	Bracket, Control
54	Panel, Control
67	WP689559 Whirlpool Nut
72	Wire, Ground
81	Knob, Push To Start
82	Nut, Push-In (2)
