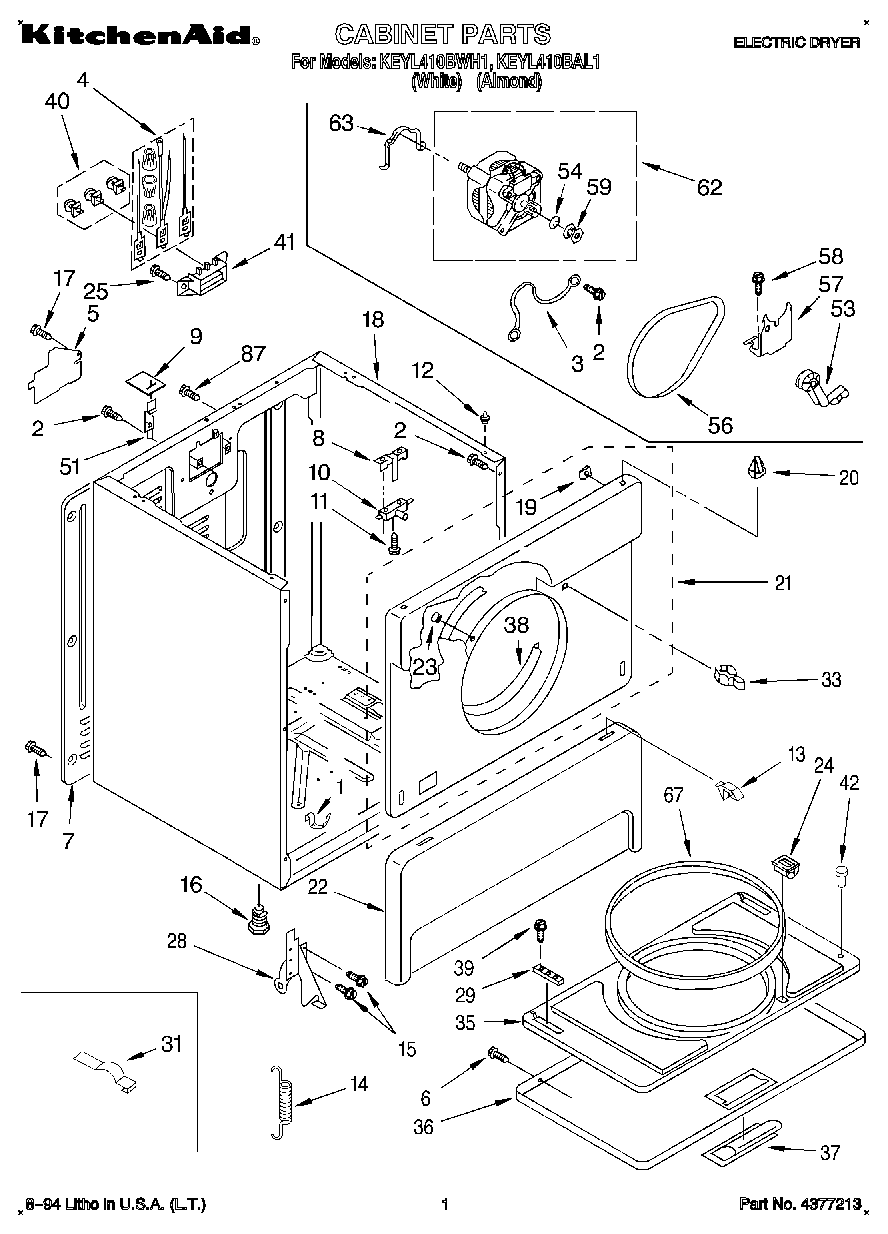

KEYL410BAL1 01 – SECTION

KEYL410BAL1 01 – SECTION

Products

PositionProduct
1WP297092 Whirlpool Clip
2SCREW
3Wire, Ground (Motor)
4279318 Whirlpool Terminal
5W11539855 Whirlpool Refrigerator Pump
6WP694091 Whirlpool Screw
7280040 Whirlpool Rear Panel
8WP691581 Whirlpool Actuator
918849 Whirlpool Pad
10W10820036 Whirlpool Door Switch Kit
11WP98129 Whirlpool Screw
12Locator, Top
13WP3388229 Whirlpool Dryer Spring Clip
14Spring, Door (2)
15Screw, 10-32 x 1/2
1649621 Whirlpool Leveling Feet
17WP489069 Whirlpool Compactor Screw
18Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
18Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Front Panel Assembly (White)
21Front Panel Assembly (Almond)
22Panel, Toe (Almond)
22Panel, Toe (White)
23279220 Whirlpool Clip
24279570 Whirlpool Dryer Door Latch Kit
28Hinge, L.H.
28Hinge, R.H.
29W11252547 Whirlpool Clip Assembly
318528351 Whirlpool Clip
35Door, Rear
36Door, Front (White)
36Door, Front (Almond)
37WP348721 Whirlpool Handle
37handle, door (almond)
38279264 Whirlpool Bearing and Seal Kit
39WP308685 Whirlpool Microwave Screw
40279393 Whirlpool Terminal Block Screw and Nut Kit
41279320 Whirlpool Dryer Rear Terminal Block Kit
42238614 Whirlpool Bumper Hinge
51WP8066217 Whirlpool Hinge
53WP691366 Whirlpool Dryer Idler Pulley Assembly
54WP3393657 Whirlpool Belt Retainer
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59WP8066184 Whirlpool Dryer Motor Pulley
62279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
67WP3390733 Whirlpool Door Seal Assembly
87W10850756 Whirlpool Screw
