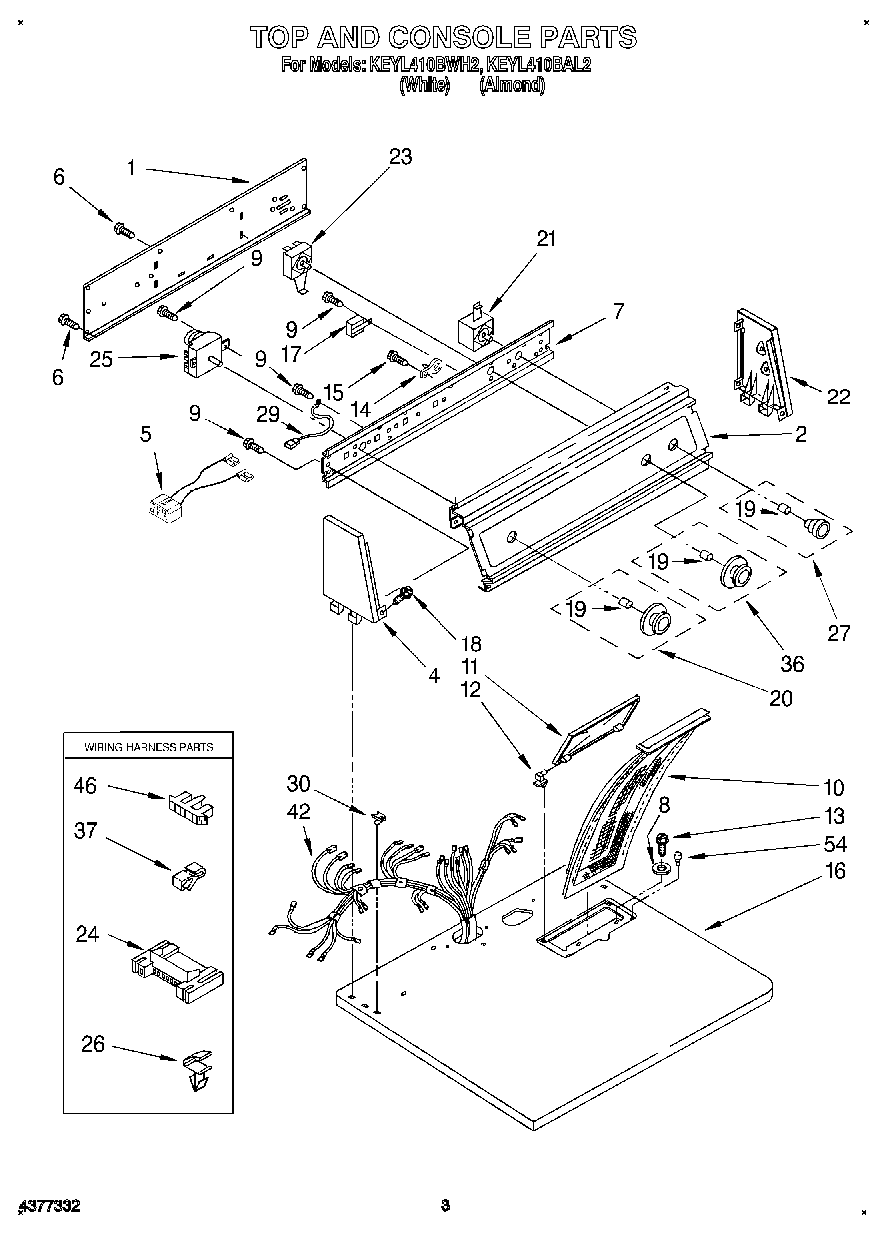

KEYL410BWH2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Guide, Use & Care
	Label, Operating Instructions
	Guide, Dryer
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
	Label, Wiring Diagram
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
1	Panel, Rear Console
2	Panel, Control
4	Cap, End (L.H.)
5	8283286 Whirlpool Wire Harness
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	279872 Whirlpool Resistor
15	WP488729 Whirlpool Refrigerator Door Screw
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WPL 64211
19	WP688805 Whirlpool Spring Clip
20	Knob, Timer
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
23	Switch, Temperature
24	3395683 Whirlpool Connector
25	Timer
26	WP3394427 Whirlpool Clip
27	Knob, Push To Start
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
36	Knob (Control)
37	Clip, Retainer
42	Harness, Wiring
46	Connector, Timer
54	Bumper, Lint Lid
