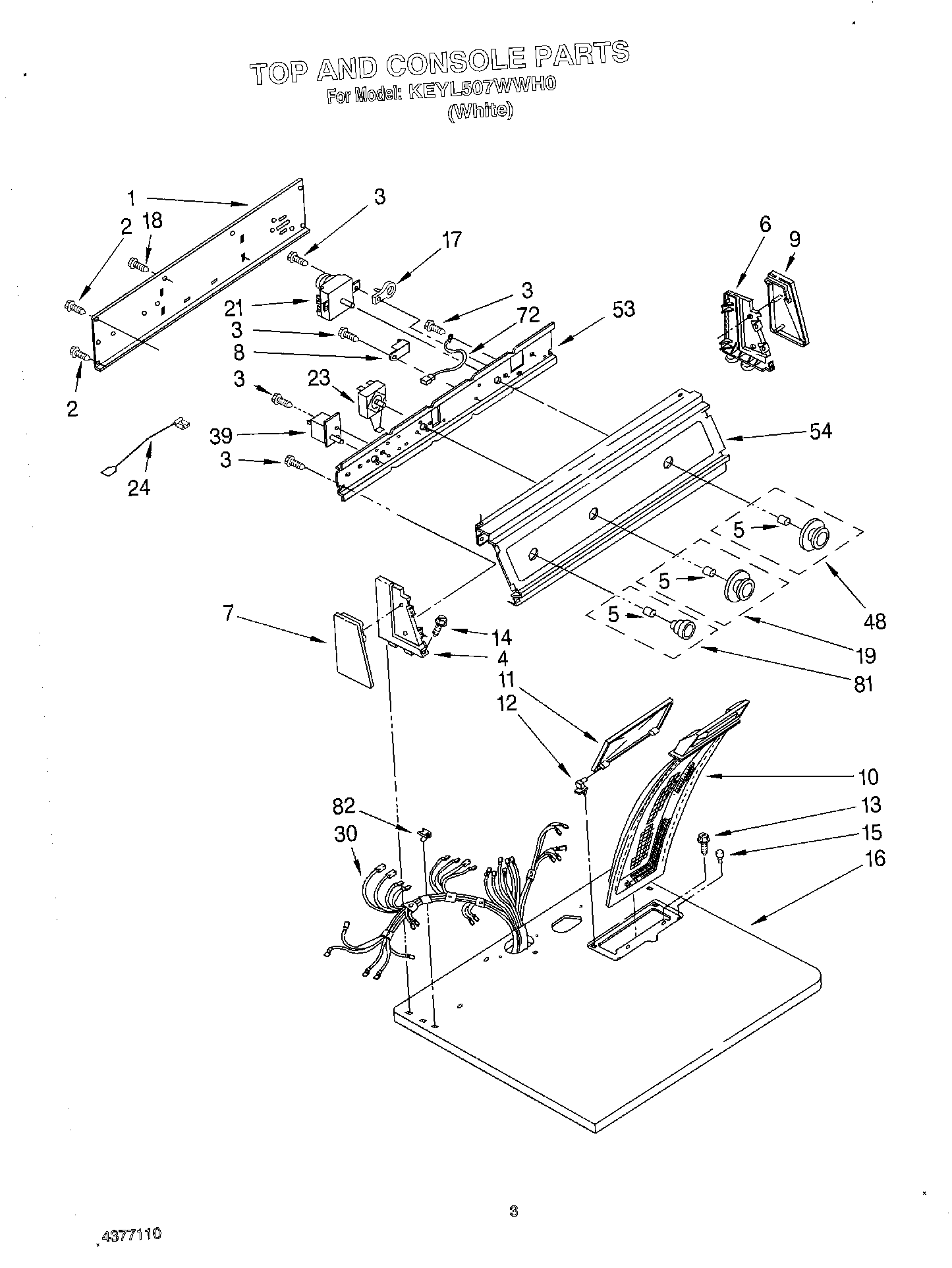

KEYL507WWH0 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Instructions, Installation
	Wiring Diagram
	Guide, Dryer
	Guide, Use & Care
	72017 Whirlpool Appliance Touch-Up Paint White
	Leveler (Thinner)
	799344 Whirlpool Refrigerator Paint
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	WP489069 Whirlpool Compactor Screw
3	WP3390631 Whirlpool Screw
4	Cap, End (L.H.)
5	WP688805 Whirlpool Spring Clip
6	Cap, End (R.H.)
7	Trim, Endcap (L.H.)
8	WP694419 Whirlpool Buzzer Adjuster
9	Trim, Endcap (R.H.)
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen
12	WPW10044470 Whirlpool Hinge Assembly
12	WPW10044480 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	WP388326 Whirlpool Screw
15	Bumper, Lint Lid
16	Top (White)
17	279872 Whirlpool Resistor
18	WP693995 Whirlpool Screw
19	Knob, Control
21	WP3394762 Whirlpool Timer
23	Switch, Rotary (Temperature Selector)
24	Wire, Jumper (Blue)
24	Wire, Jumper (Violet)
30	Harness, Wiring
39	Relay, Push-To-Start
48	Timer Knob Assembly
53	Bracket, Control
54	Panel, Control
72	Wire, Ground
81	Knob, Push-To-Start
82	Nut, Push-In (2)
