KEYL507WWH0 03 – SECTION

KEYL507WWH0 03 – SECTION

Written by

in

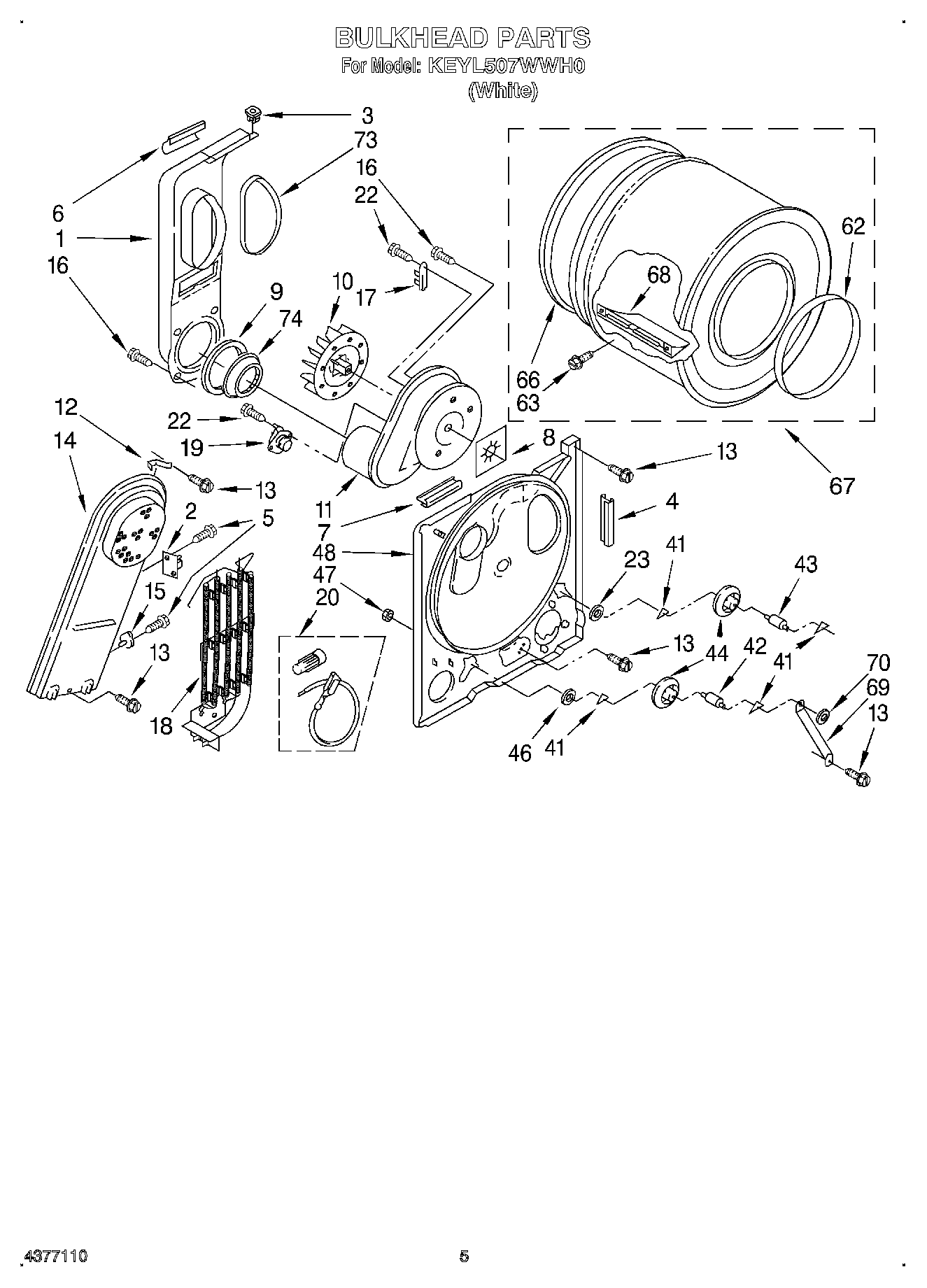

KEYL507WWH0 03 – SECTION

Products

PositionProduct
1279505 Whirlpool Chute
2279769 Whirlpool Dryer Thermal Cut-Off Fuse Kit
398460 Whirlpool Nut
5WP90767 Whirlpool Screw
6686770 Whirlpool Support Bracket
7686889 Whirlpool Pad
8Seal, Blower
9W11415783 Whirlpool Seal
10WP694089 Whirlpool Dryer Blower Wheel
11Housing, Blower
12279771 Whirlpool Clip
14Box, Heater
15279080 Whirlpool Thermostat
16SCREW
17WP3392519 Whirlpool Dryer Thermal Fuse
18WP697663 Whirlpool Element
19WP3387134 Whirlpool Dryer Cycling Thermostat
20279457 Whirlpool Dryer Heating Element Wide Spade Connection
22WP965173 Whirlpool Dishwasher Screw
23WP3388703 Whirlpool Washer
41WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42SHAFT SUPPORT ROLLER DRYER
43SHAFT SUPPORT ROLLER DRYER
44WPW10314173 Whirlpool Dryer Drum Support Wheel
46WP348197 Whirlpool Washer Assembly
47WP3359452 Whirlpool Nut
48Bulkhead
62WP3394509 Whirlpool Bearing Ring
63WPW10109200 Whirlpool Screw
66239087 Whirlpool Dryer Rear Drum Seal Green Stitches
67697760 Whirlpool Drum Assembly Primary OS2
68WP342847 Whirlpool Drum Baffle
69Bracket, Support
70WP90296 Whirlpool Clip
73SEAL
74W11233063 Whirlpool Shield Assembly
