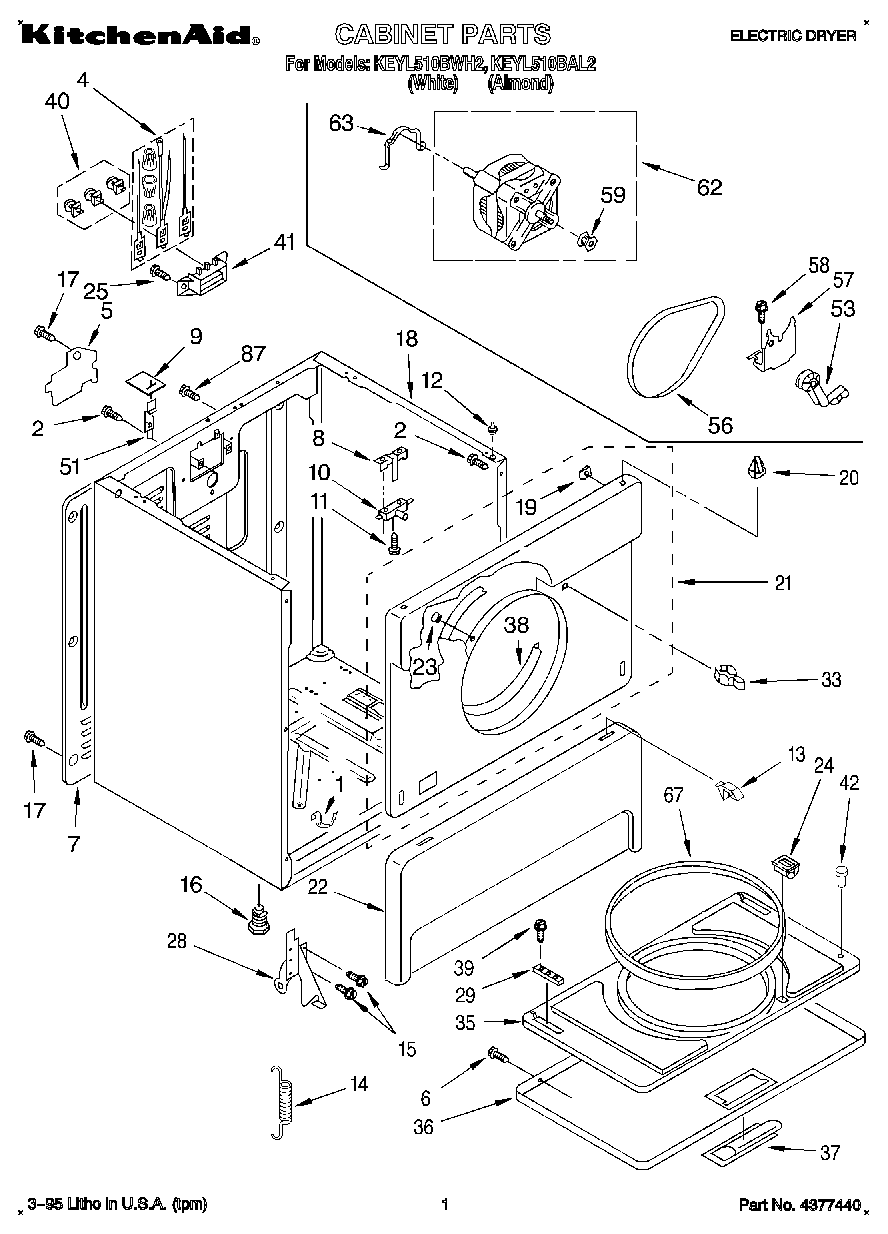

KEYL510BAL2 01 – SECTION

Products

Position	Product
1	WP297092 Whirlpool Clip
2	SCREW
4	279318 Whirlpool Terminal
5	W11539855 Whirlpool Refrigerator Pump
6	WP694091 Whirlpool Screw
7	280040 Whirlpool Rear Panel
8	WP691581 Whirlpool Actuator
9	18849 Whirlpool Pad
10	W10820036 Whirlpool Door Switch Kit
11	WP98129 Whirlpool Screw
12	Locator, Top
13	WP3388229 Whirlpool Dryer Spring Clip
14	Spring, Door (2)
15	Screw, 10-32 x 1/2
16	49621 Whirlpool Leveling Feet
17	WP693995 Whirlpool Screw
18	Cabinet (White (Includes Illus. Nos. 5, 7, 16, 41, and 57))
18	Cabinet (Includes Illus. Nos.5,7,16,41, And 57.) (Almond)
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Front Panel Assembly (White)
21	Front Panel Assembly (Almond)
22	Panel, Toe (Almond)
22	Panel, Toe (White)
23	279220 Whirlpool Clip
24	279570 Whirlpool Dryer Door Latch Kit
28	Hinge, L.H.
28	Hinge, R.H.
29	W11252547 Whirlpool Clip Assembly
35	Door, Rear
36	Door, Front (White)
36	Door, Front (Almond)
37	WP348721 Whirlpool Handle
37	handle, door (almond)
38	279264 Whirlpool Bearing and Seal Kit
39	WP308685 Whirlpool Microwave Screw
40	279393 Whirlpool Terminal Block Screw and Nut Kit
41	279320 Whirlpool Dryer Rear Terminal Block Kit
42	238614 Whirlpool Bumper Hinge
51	WP8066217 Whirlpool Hinge
53	WP691366 Whirlpool Dryer Idler Pulley Assembly
56	341241 Whirlpool Dryer Drum Belt
57	WP348780 Whirlpool Base
58	3400500 Whirlpool Screw
59	WP8066184 Whirlpool Dryer Motor Pulley
62	279827 Whirlpool Dryer Drive Motor
63	WP660658 Whirlpool Clamp
67	WP3390733 Whirlpool Door Seal Assembly
87	W10850756 Whirlpool Screw
