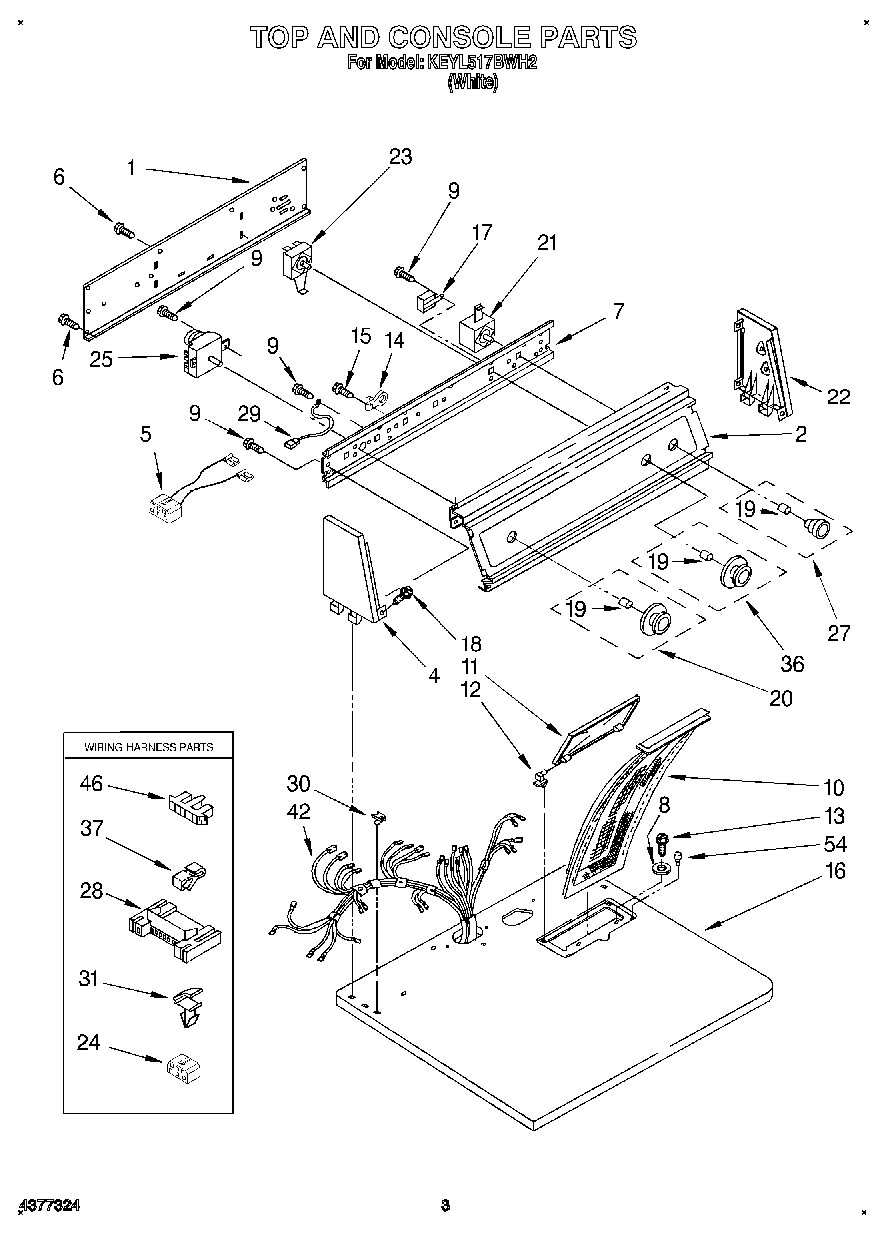

KEYL517BWH2 02 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Guide, Use & Care
	Guide, Dryer
	Instructions, Installation
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	Label, Wiring Diagram
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Panel, Control
4	Cap, End (L.H.)
5	Wire-Jumper Assembly
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Washer
9	WPW10139210 Whirlpool Screw
10	339392V Whirlpool Dryer Lint Filter Screen
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	279872 Whirlpool Resistor
15	WP488729 Whirlpool Refrigerator Door Screw
16	Top (White)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP388326 Whirlpool Screw
19	WP688805 Whirlpool Spring Clip
20	Knob, Timer
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
23	WP3399640 Whirlpool Switch
24	Block, Disconnect
25	Timer
27	Knob, Push-To-Start
28	3395683 Whirlpool Connector
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
31	WP3394427 Whirlpool Clip
36	Knob, Control
37	Clip, Retainer
42	Harness, Wiring
46	Connector, Timer
54	Bumper, Lint Lid
