KEYS677EQ1 01 – SECTION

KEYS677EQ1 01 – SECTION

Written by

in

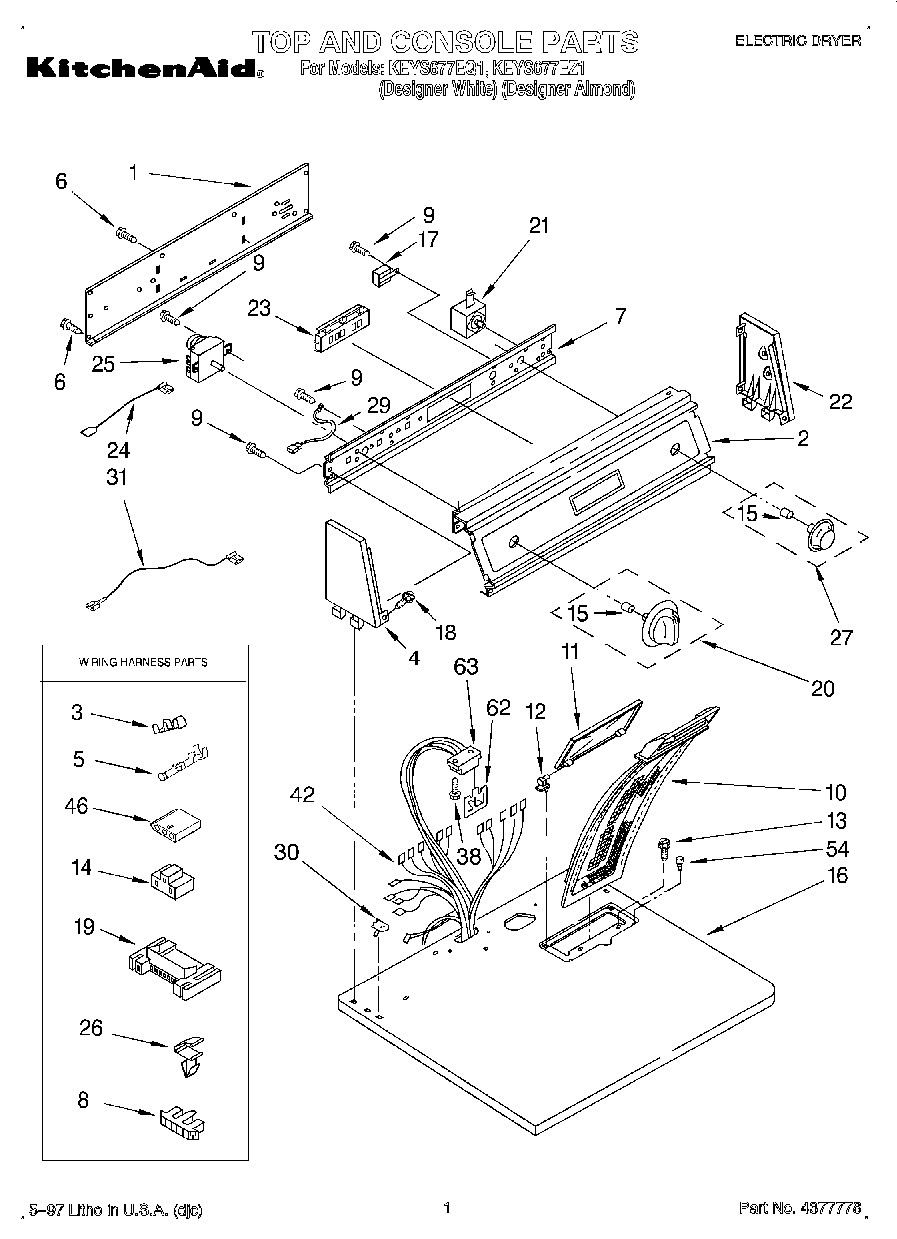

KEYS677EQ1 01 – SECTION

Products

Position	Product
	350930 Whirlpool White Spray Paint
	Label, Warning
	WPL LIT3405630
	WPL LIT3406693
	WPL LIT3397618
	Almond (Uncut)
	WP72107 Whirlpool Touchup
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	350956 Whirlpool Spray Assembly
	350938 Whirlpool Spray Gun
1	Panel, Rear Console
2	Panel, Control (White)
2	Panel, Control (Almond)
3	W10113937 Whirlpool Clamp
4	Cap, End (L.H.)
4	End Cap (L.H.)
5	WP94614 Whirlpool Terminal
6	WP693995 Whirlpool Screw
7	Bracket, Control
8	Connector, Timer
9	WPW10139210 Whirlpool Screw
10	WP349639 Whirlpool Lint Filter
11	Cover, Lint Screen (Almond)
11	Cover, Lint Screen (White)
12	WPW10044480 Whirlpool Hinge Assembly
12	WPW10044470 Whirlpool Hinge Assembly
13	W11693756 Whirlpool Screw Assembly
14	3401144 Whirlpool Connector
15	WP688805 Whirlpool Spring Clip
16	Top (White)
16	Top (Almond)
17	WP694419 Whirlpool Buzzer Adjuster
18	WP388326 Whirlpool Screw
19	3395683 Whirlpool Connector
20	Knob, Timer (White)
20	Knob, Timer (Almond)
21	WP3398094 Whirlpool Push To Start Switch
22	Cap, End (R.H.)
22	Cap, End (R.H.)
23	Switch-Tap Touch (White)
23	Switch-Tap Touch (Almond)
24	Wire, Jumper (Violet)
24	Wire, Jumper (Blue)
25	Timer, 60Hz.
26	WP3394427 Whirlpool Clip
27	Knob, Push To Start (Almond)
27	Knob, Push To Start (White)
29	Wire, Ground
30	WP357213 Whirlpool Hinge Stopper
31	Wire, Jumper (White)
31	Wire, Jumper (Black)
31	Wire, Jumper (Tan)
38	SCREW
42	Harness, Electric
46	Connector (Door Switch)
54	Bumper, Lint Lid
62	WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
63	3391885 Whirlpool Connector
