KEYS700EQ1 01 – SECTION

KEYS700EQ1 01 – SECTION

Written by

in

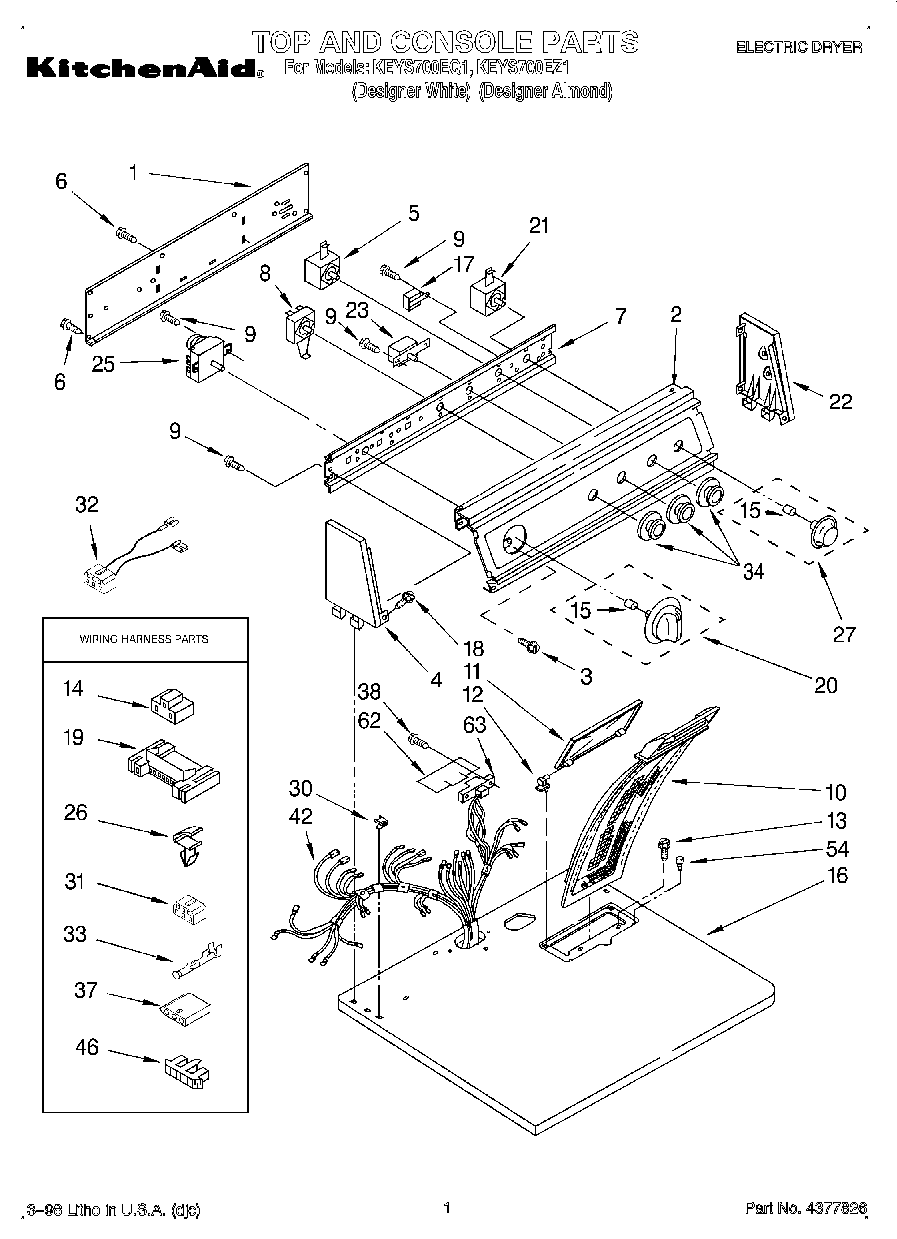

KEYS700EQ1 01 – SECTION

Products

PositionProduct
350930 Whirlpool White Spray Paint
WPL LIT3397618
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
WPL LIT3405632
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL LIT3406681
350938 Whirlpool Spray Gun
1Panel, Rear Console
2Panel, Control (White)
2Panel, Control (Almond)
33400859 Whirlpool Screw
4Cap, End (L.H.)
4End Cap (L.H.)
53399638 Whirlpool Switch
6WP693995 Whirlpool Screw
7Bracket, Control
8WP3405156 Whirlpool Switch
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Almond)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143401144 Whirlpool Connector
15WP688805 Whirlpool Spring Clip
16Top (White)
16Top (Almond)
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (Almond)
20Knob, Timer (White)
21WP3398094 Whirlpool Push To Start Switch
22Cap, End (R.H.)
22Cap, End (R.H.)
23Switch, Temperature
25Timer, 60Hz.
26WP3394427 Whirlpool Clip
27Knob, Push To Start (Almond)
27Knob, Push To Start (White)
30WP357213 Whirlpool Hinge Stopper
31Block, Disconnect
32Wire, Jumper (White/Yellow)
323401695 Whirlpool Wire Harness
33WP94614 Whirlpool Terminal
34Knob, Control (2) (White)
34Knob, Control (Almond Model)
373936144 Whirlpool Connector
38SCREW
42Harness, Electric
46Connector, Timer
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
633391885 Whirlpool Connector
