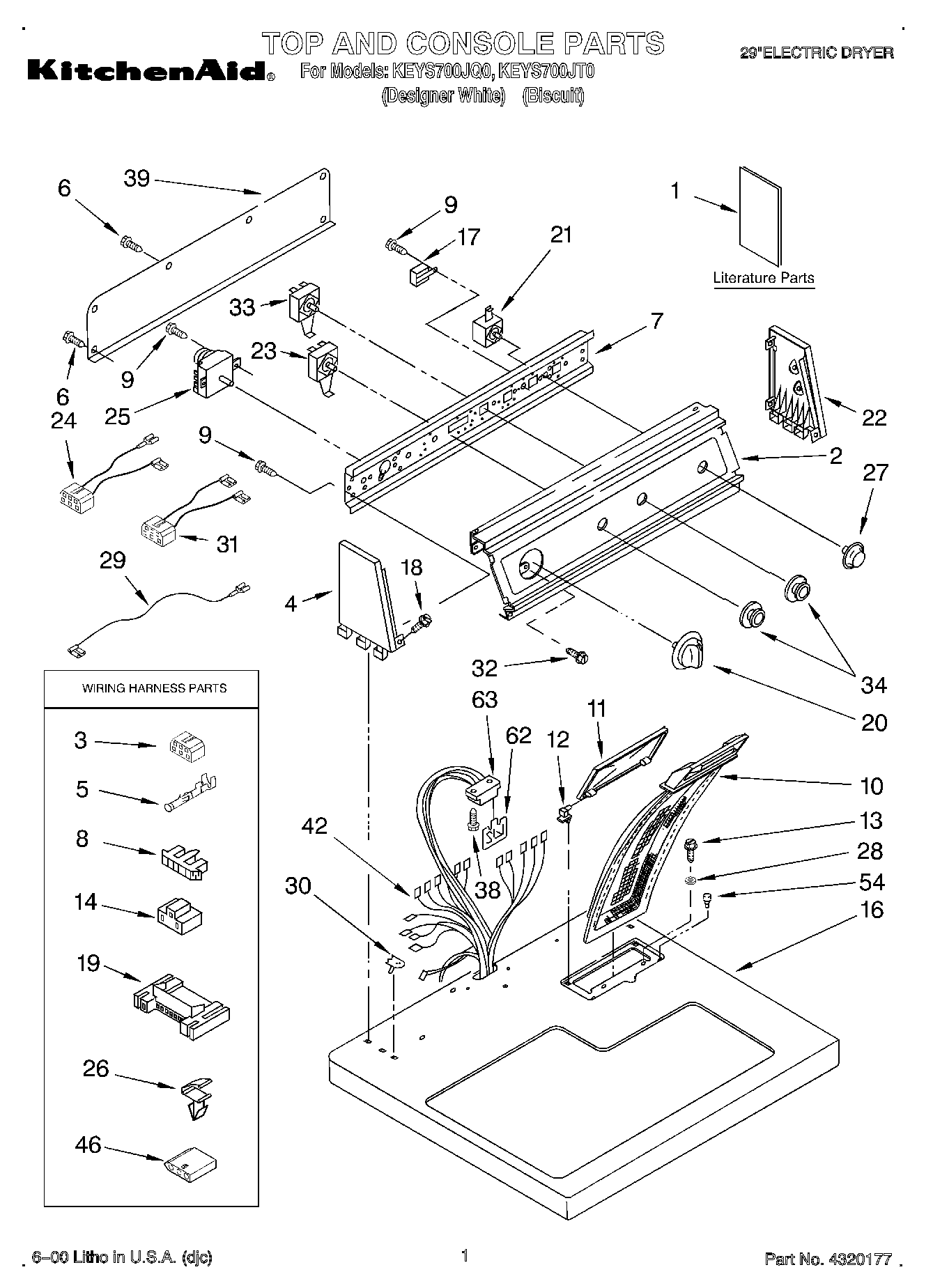

KEYS700JQ0 01 – SECTION

Products

PositionProduct
1WPL LIT3406699
1Literature Parts (Use & Care Guide)
1WPL LIT3397618
2Panel, Control (White)
2Panel, Control (Biscuit)
3Block, Disconnect
4Cap, End (L.H.) (Biscuit)
4End Cap (L.H.) (White)
5WP94614 Whirlpool Terminal
6WP693995 Whirlpool Screw
7Bracket, Control
8Connector, Timer
9WPW10139210 Whirlpool Screw
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen (White)
11Cover, Lint Screen (Biscuit)
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
143401144 Whirlpool Connector
16Top (Biscuit)
16Top
17WP694419 Whirlpool Buzzer Adjuster
18WP388326 Whirlpool Screw
193395683 Whirlpool Connector
20Knob, Timer (White)
20Knob, Timer (Biscuit)
21WP3398094 Whirlpool Push To Start Switch
22End Cap (R.H.) (Biscuit)
22End Cap (R.H.) (White)
23WP3399639 Whirlpool Switch
243401695 Whirlpool Wire Harness
25WP3976570 Whirlpool Timer
26WP3394427 Whirlpool Clip
27Knob, Push To Start (White)
27Knob, Push-To-Start (Biscuit)
28Washer
29Wire, Jumper (White)
30WP357213 Whirlpool Hinge Stopper
318539893 Whirlpool Wire Harness
323400859 Whirlpool Screw
333399638 Whirlpool Switch
34Knob, Control (2) (White)
34Knob, Control (2) (Biscuit)
38WP33001882 Whirlpool Screw
39W10103406 Whirlpool Rear Panel
42Harness, Electric
463936144 Whirlpool Connector
54Bumper, Lint Lid
62WPW10476828-includeCORE Whirlpool WPW10476828 Refrigerator Electronic Control Board + Core
6372017 Whirlpool Appliance Touch-Up Paint White
633391885 Whirlpool Connector
63799344 Whirlpool Refrigerator Paint
63350930 Whirlpool White Spray Paint
634392899 Whirlpool Biscuit Touch-Up Paint
634392901 Whirlpool Biscuit Spray Paint
63PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
63350938 Whirlpool Spray Gun
